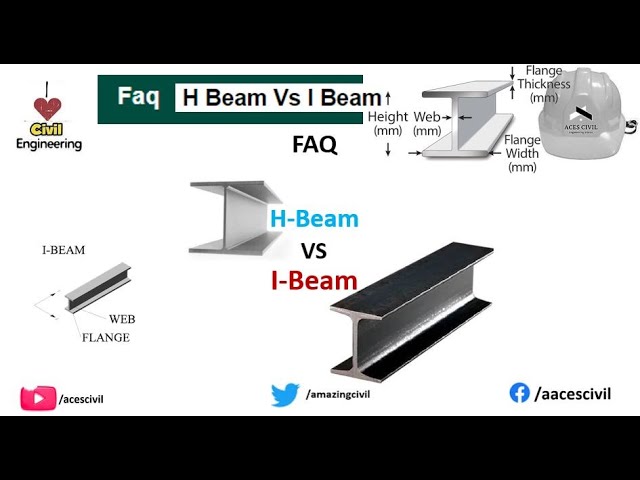

What's your preferred method of marking points for drilled holes in beam's web? Any fancy tools you'd recommend ?

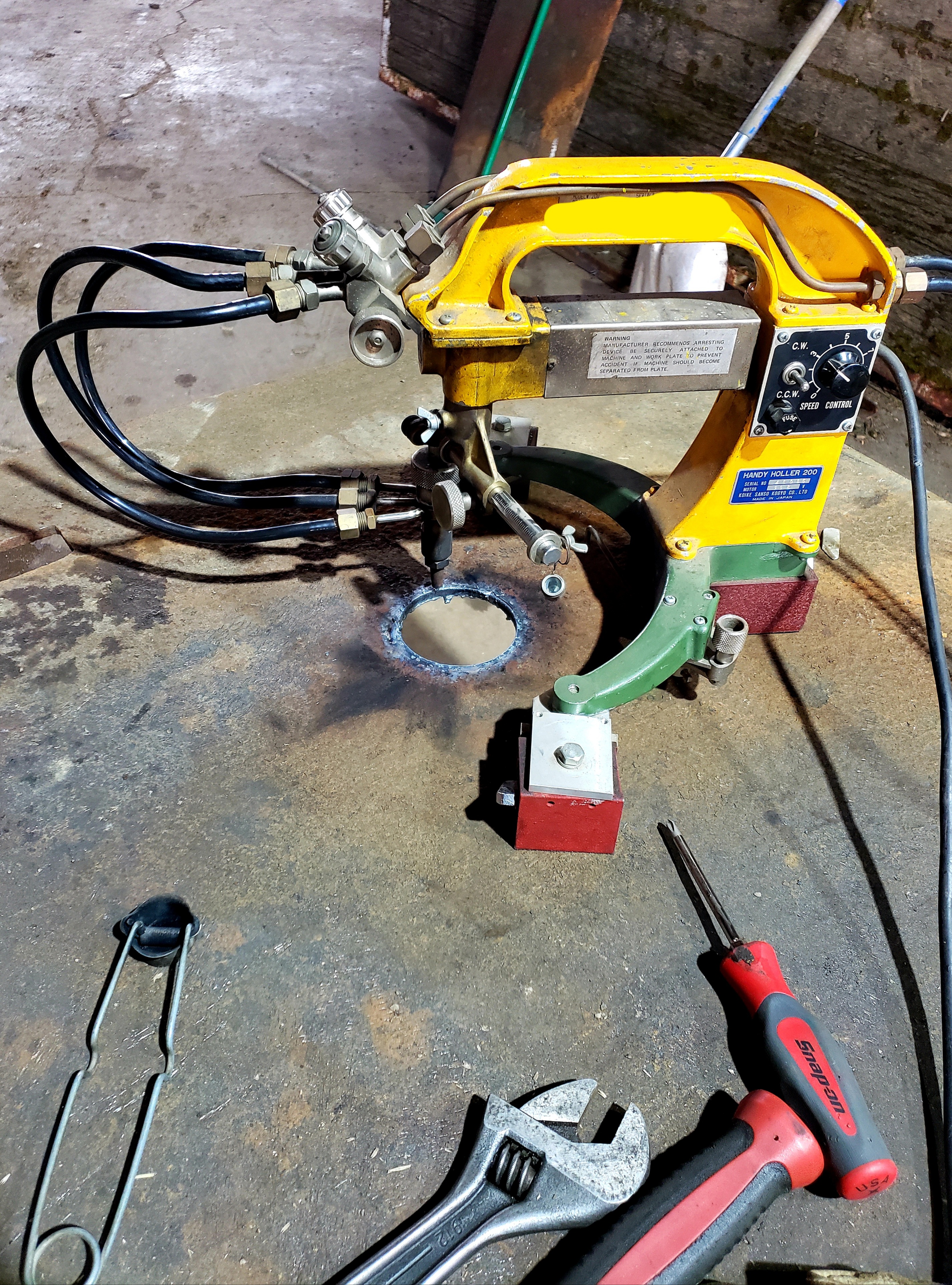

Drilling, chalk is fineTorching, soapstone
>>3001391Fabrication shops use formed aluminum guides that slide along the edge of the flange. They serve as a square
>>3001404and can be indexed to provide depth marks for the web.
>>3001391clip the corner off a speed square
>>30013912nd modification in this youtube short... https://www.youtube.com/shorts/QBIqf6AL7u8
>>3001445that's actually pretty neat, i have one or two disposable squares i could modify, thanks!
Soap stone or Milwaukee paint markerMag drill and a carbide or diamond hole saw.Idk anything about torching. Used to be a steel erector.
Drill a small pilot hole to clear the large drill's central web which will otherwise rub and dull. Beware of hard spots in structural steel.Don't drill at excessive rpm. The larger the drill the slower the speed. You want a nice string of swarf peeling off from the metal. If you have no mag drill use a large non hammer drill in several stages but use the side handle. Reaction from a powerful jammed drill can sprain your arm or worse. I once messed my forearm up for a year this way.
>anon asks how to do layout >gets a bunch of knowitall jackasses telling him how to drill a hole /diy/ potteryalso the obvious answer is an automated drill line or 6 gorillion axis fiber laser also by and add oc3an mach1nery c0rpo
