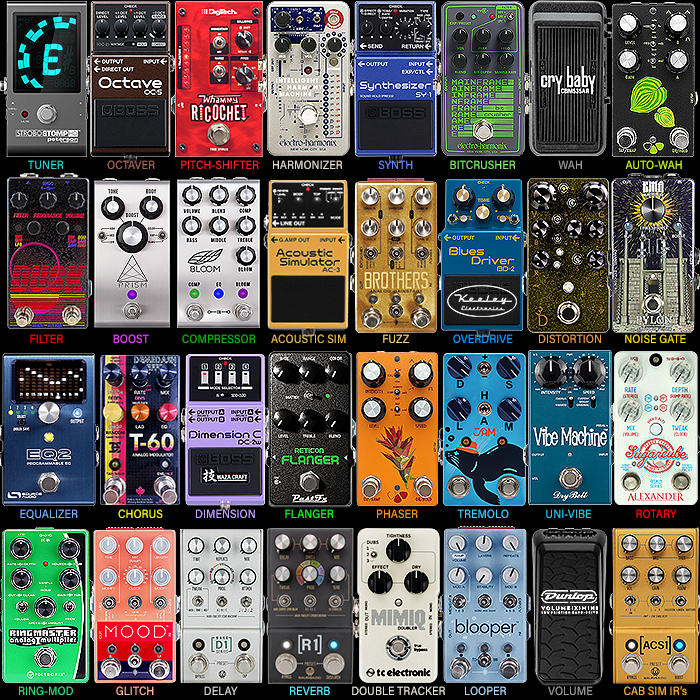

I want to make my own guitar pedals (simple effects, like a fuzz one), do you have some good starting advice?>Like where should i get my materials (electronics, case, pcb) from? >What are some good places to get my pcb/circuit theory on point?>What should I look out for? What are some mistakes that I need to avoid?>Should i make my own circuit or just steal a schematic off somewhere? If so, where from?

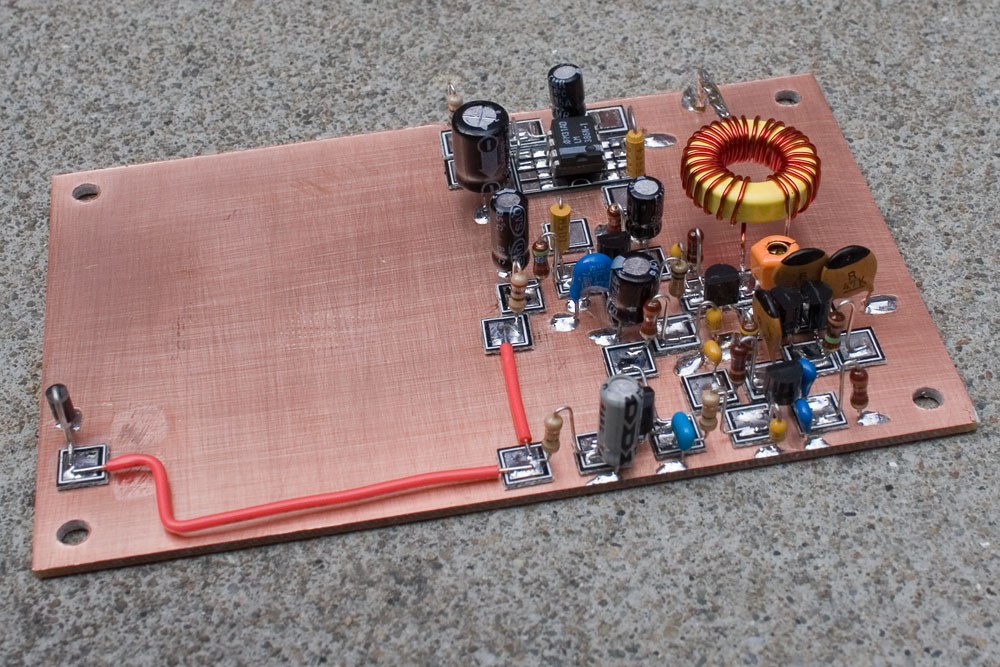

>>3006253Read /ohm/ threads.>Like where should i get my materials (electronics, case, pcb) from?Not eBay, Ali Express, Amazon, or Adafruit. Its all Chinese bullshit. You want Mouser and DigiKey.>>What are some good places to get my pcb/circuit theory on point?It is a guitar peddle. You don't have to do work that meets aerospace standards. Make sure your ground plane is rock solid. Check out Manhattan style circuits.>What should I look out for? What are some mistakes that I need to avoid?Using cheap materials, cheap soldering irons, cheap anything. Basic electronics is a very cheap hobby so pay the money for decent components. They really are worth it. A good soldering iron is really all you need to buy. You can make PCB holders, helping hands, fume extractors, just about anything else cheaply yourself. Don't go out and buy those weird boxes of components that have 100 each of shitty Chinese mystery resisters, half of which are values you will never use and are all out of spec. Buy what you need when you need it. Shipping is the real killer. You'd spend $15 pm components for your project and $20 on shipping. Maybe have a few projects saved up so you can do a bulk purchase and save a bit. Or see if there is a Maker space in your area that can cut you a deal.>Should i make my own circuit or just steal a schematic off somewhere? If so, where from?No need to reinvent the wheel if someone has already designed exactly what you need. That said, if you don't even know what you want to make, you should probably start with that. Once you have something then do the research. Instructables or YouTube might have it but your best bet is forums. Older the better. There are forums dedicated to every topic known to man and some of them are over 40 years old at this point. If there isn't a peddle schematic floating around on one of them that some rando posted in 1996 and that has been build by a thousand different people, all who say it is great, I would be shocked.
>>3006256Do you have some forum recommendations?

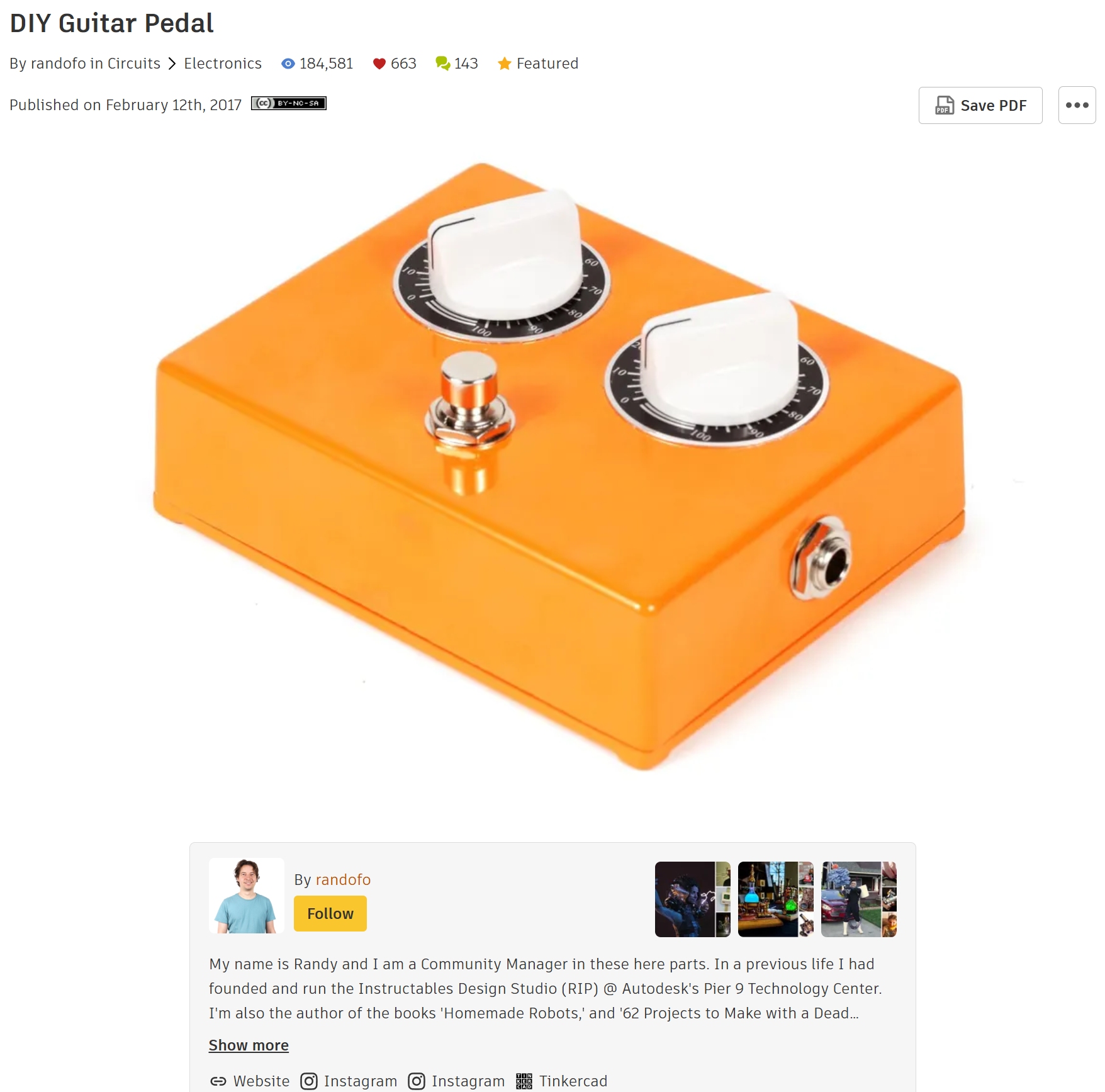

>>3006259For guitar pedals? No. Never made one, don't own a guitar, can't play music. Instructables has a ton of guides though. Did you look there like I said? Picture related.You are going to have to do your own Googling bro. Coming here and asking us to Google it for you ain't gonna fly. Read the sticky. Don't be that guy that asks AI for everything either. The world has enough meat proxies.
>>3006264Thank you for pointing it out, i didnt know Instructables was a site, i thought you meant something else, sorry
https://generalguitargadgets.com/https://sound-au.com/
>>3006253Pedals are physically more difficult to build than amps or guitar wiring. This is because they're simply smaller both in parts and installing the board and wiring into a pedal enclosure. However, they are very cheap. You can practice, and screw up, and move on. Fuzzes and distortions are a good place to start because they have low parts count. You're learning to build at this point. You'd do perfboard and study circuits if you want to trial ideas or design. Guitar FX Layouts has a huge collection of veroboard diagrams. Vero is a perfboard that's in conductive rows. It allows us to build circuits almost eliminating jumper wires. It's also inexpensive and can normally be bandsawed to build multiple pedals from one board. Tayda and other sites should sell unpopulated pcb. It's kind of random what you'll find, but I've gotten good mileage out of their purple plexi.
