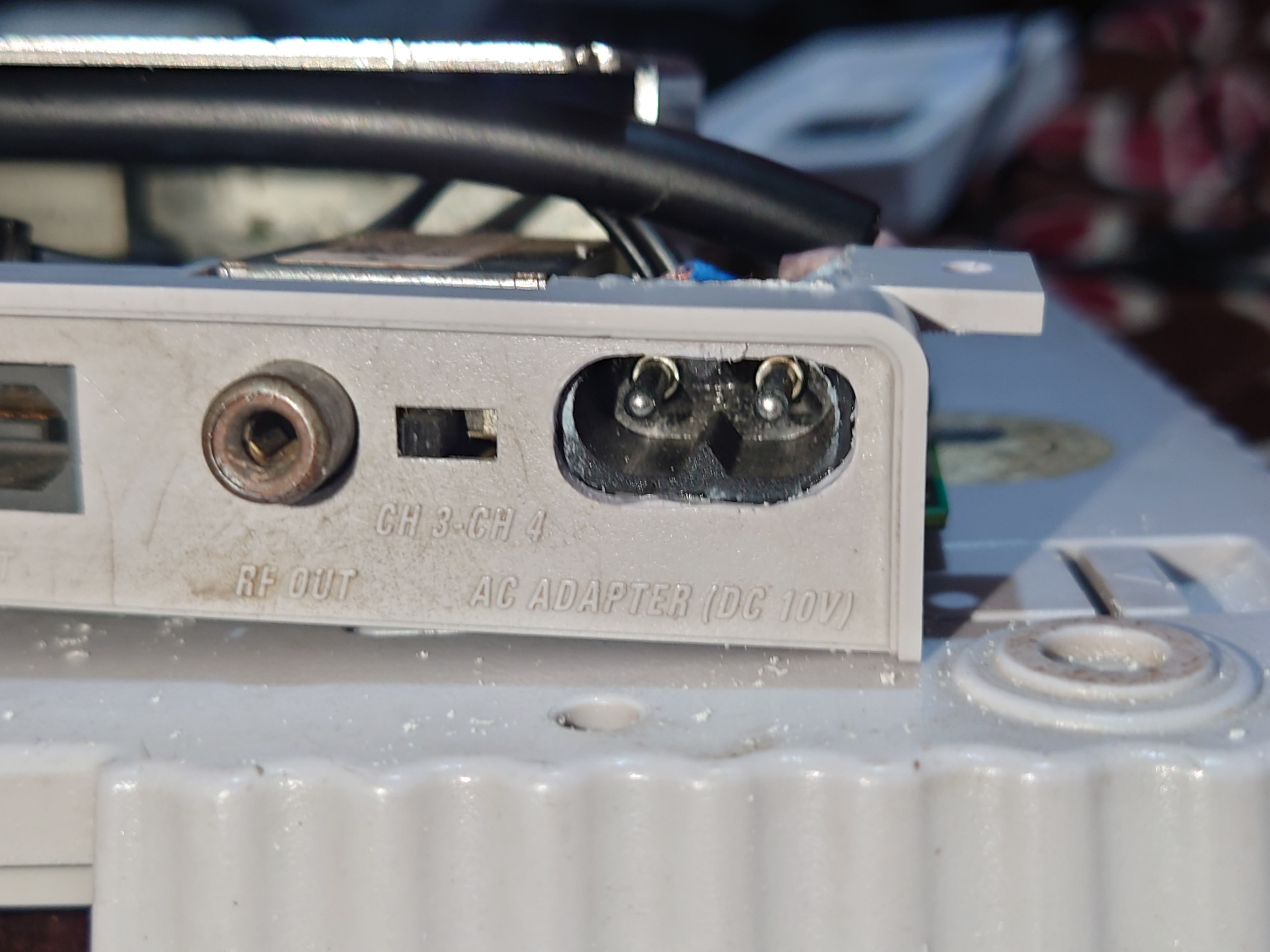

My snes power jack broke like picrel but while I was waiting to repair it I tried to use a different 12V 2A DC adapter but I think I shorted out the little pole thingys because now it doesn't turn on at all, did it blow a fuse or something or did I just permanently fry the entire fucking thing and have to buy another one?
>>12885925i remember the power jack on my old SNES being finicky as hell and not working unless it was plugged in just rightif you got a multimeter i'd open it up and check if power is even getting through the connector
>>12885925>Did I fucking kill my childhood snes?Of course not. You're on the 4chin so you must be 18+ So the broken SNES you bought on ebay last week as an adult can't be your childhood SNES

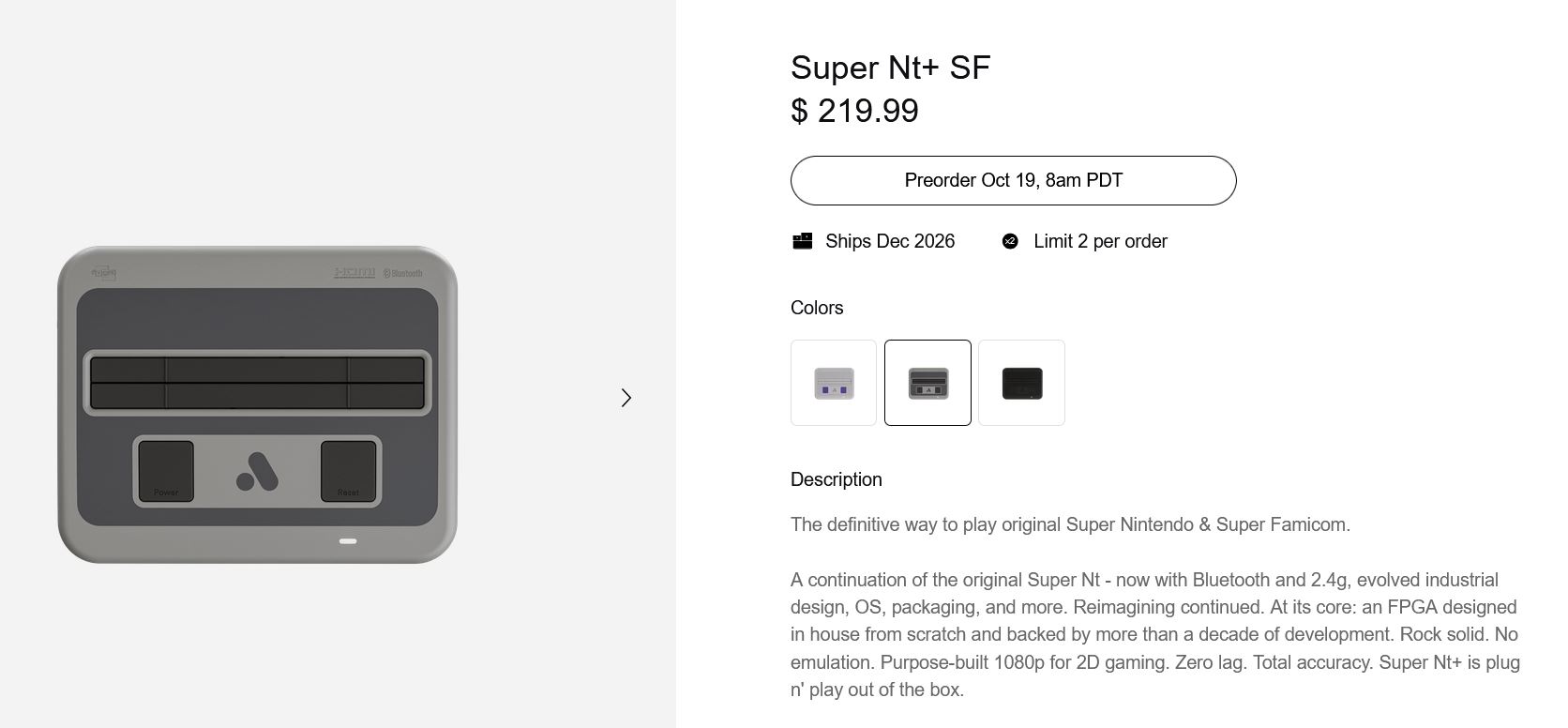

>>12885925Yeah it's fucked, m8. Many such cases.Coincidently you've reached the crossroads with impeccable timing, as you can soon pre-order the Analogue Super Nt+ and get a reliable and practical modern solution, instead of rolling the dice with old, yellow, and fragile original hardware.
>>12885974gay
It's probably fixable.I've fucked up two SNES using bad PSUs, but I've fixed them both. You can find replacement power ports for sale by just googling "SNES power port replacement", but you will need to solder it in.You'll also need to replace the fuse. If it's just a regular SNES and not the junior, the fuse is located at the back on the right side of the console. It uses a 1.5A fuse.The SNES uses a 10v 850mA power supply with a very distinct jack. Use an official one.
>>12885925I broke the power switch on mine. I bought a new one and replaced it. You can too. I believe in you, OP.
>>12885925Sounds bad but I ruined a Gamegear by playing it at night with mod wires hanging out that touched the plug as I was moving around. Probably just the lcd mod kit since the sound still works.>>12886016I have to use a bit higher power because of flash carts and a wireless controller dongle, I get buzzing sound otherwise and sometimes picture issues
>>12885974>$219.99 + tipYeah, no. Fuck off.
>>12885968what
>>12885974Unfinished product for hundreds of dollars? Why not just get a SuperStation 1 at that point? Does more for the same price and is just as incomplete.

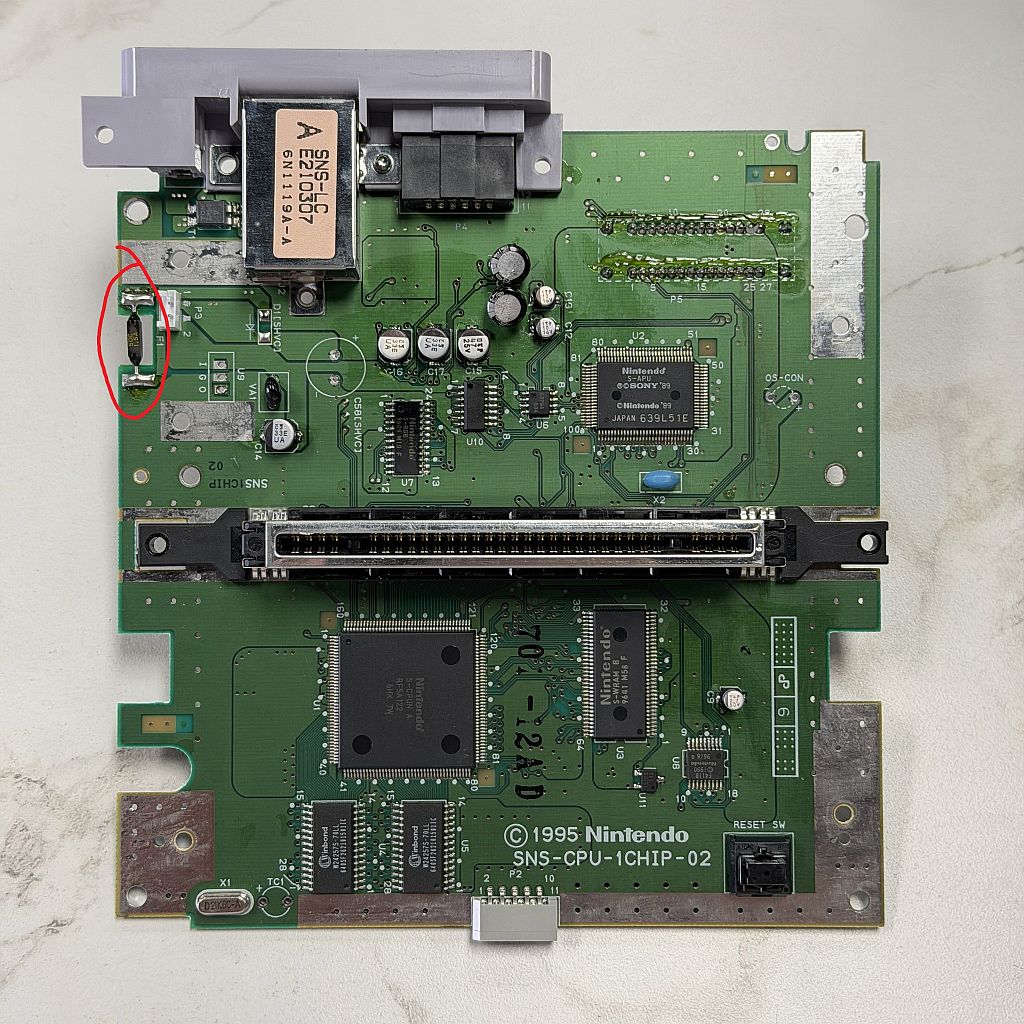

>>12885925it does have a fuse, it's easy to replace.but since your power jack is already kinda fucked, you may as well mod it to take usb-c or install an internal power supply if it's a more modern model without the separate audio module.i did mine, a 1-chip model, and now i just plug a standard figure 8 cable. no more power supply fuckery.
time to USB-C power mod itONE POWER CABLE TO RULE THEM ALL

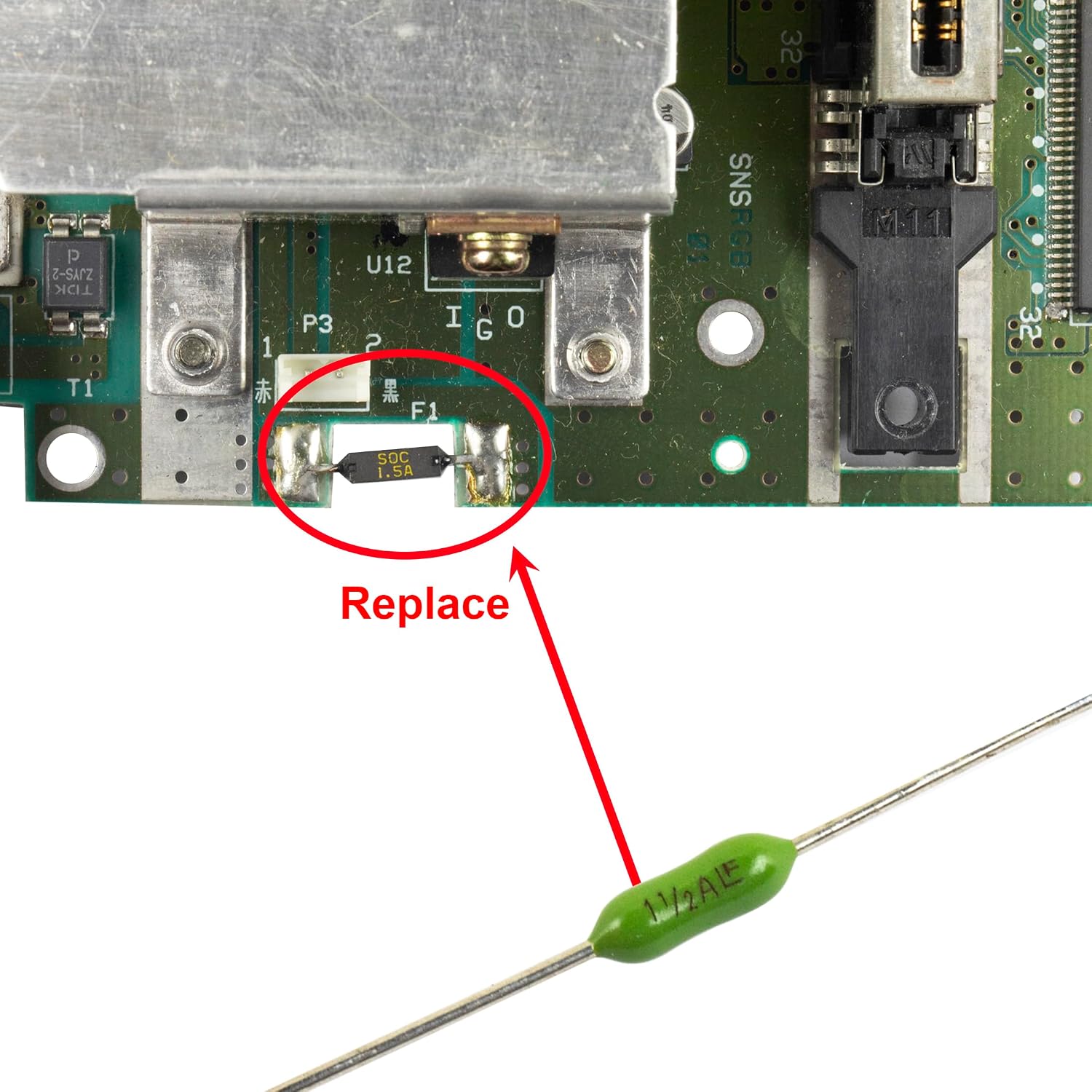

>>12885925lol no the plastics are just fragile pieces of shit in super nintendos. The whole console has some of the most fragile design of the 90s and years of shitty psus and fucking around has caught up to it. Firstly replace the rear power panel.https://console5.com/store/snes-super-nintendo-power-input-jack-replacement.htmlThey're not expensive. While you're there order a replacement fuse, https://console5.com/store/fuse-125v-1-5a-pico.htmlYou probably popped your current one. If all this fails and the console still isn't getting juice you fragged your 7805 which is also an easy thing to replace.https://console5.com/store/7805-l78s05cv-high-output-2a-5v-voltage-regulator-3-pin-to-220-5v.htmlLastly, lots of super nintendos are getting leaky caps. While you're inside this is a good chance to address what kind of snes you have and what kind of caps you need, which can also be found on console5.That last one I'd save if you're not comfortable working on your console to that degree, but the steps before that should get you to solve your no power issue.
>>12886802>pov im so used to underage shitposting that i can't even understand when someone calls me on itwew lads/lasses
>>12885925you probably blew the fuse, just buy everything in >>12886927 post and hope it still worksusually the fuse does its job and stops any serious damage but weird shit happens sometimesnext time do not do shit you do not know how to do
>>12885974Buy and Ad and ACK ACK ACK yourself you fucking troonlodyte
Stop telling retards on /v/ and /vr/ to solder I've seen enough gore
>>12885925>childhood snesyou must be at least 18 to post here
>>12887437your pic is easily repairable.but you are right, you need to have a brain to do it.
>>12887437No. The board will be learning how to fix their devices one way or the other.
>>12885968>You're on the 4chin so you must be 18+ This was your first mistake.

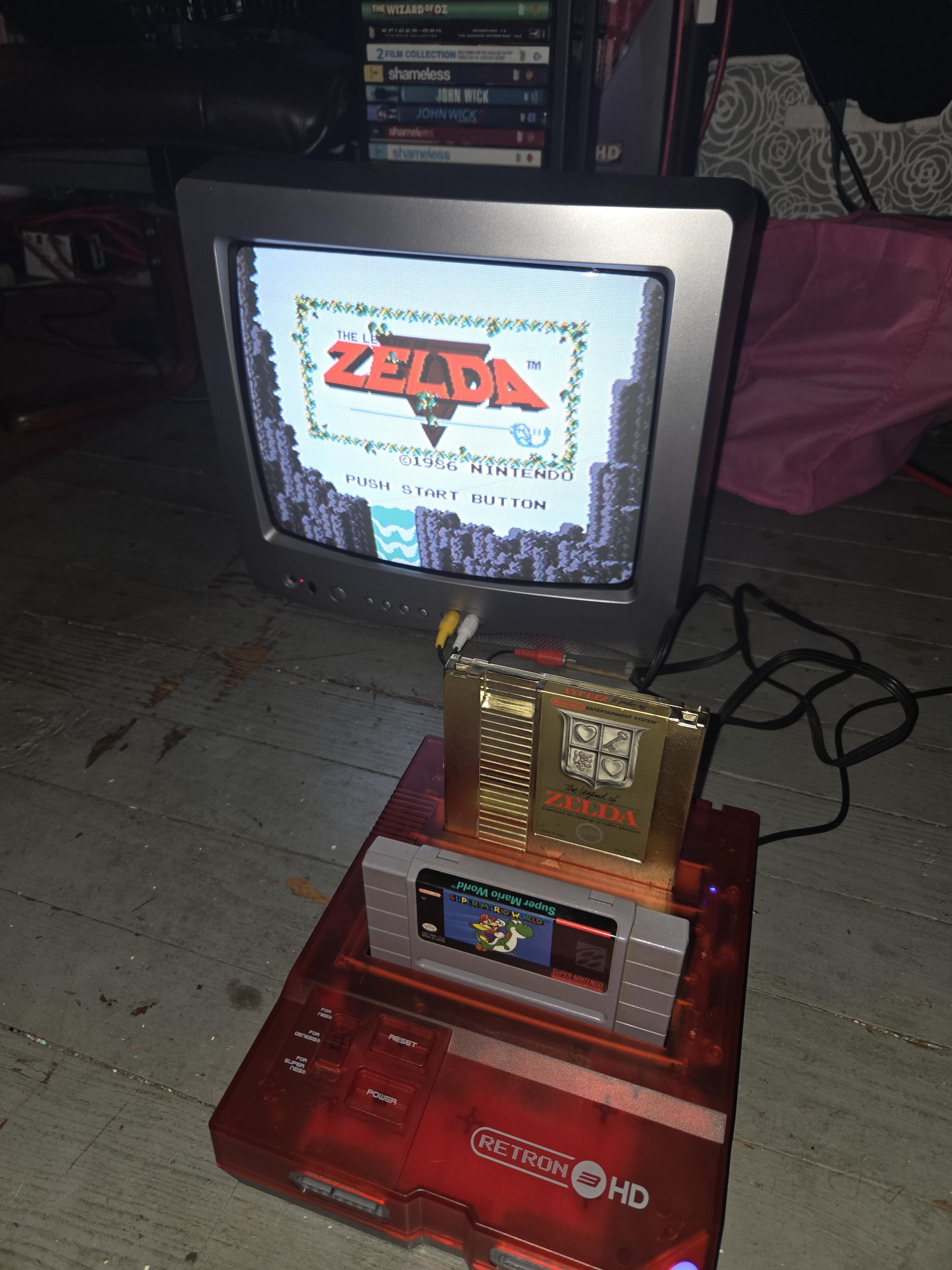

Get a clone console, my friend.

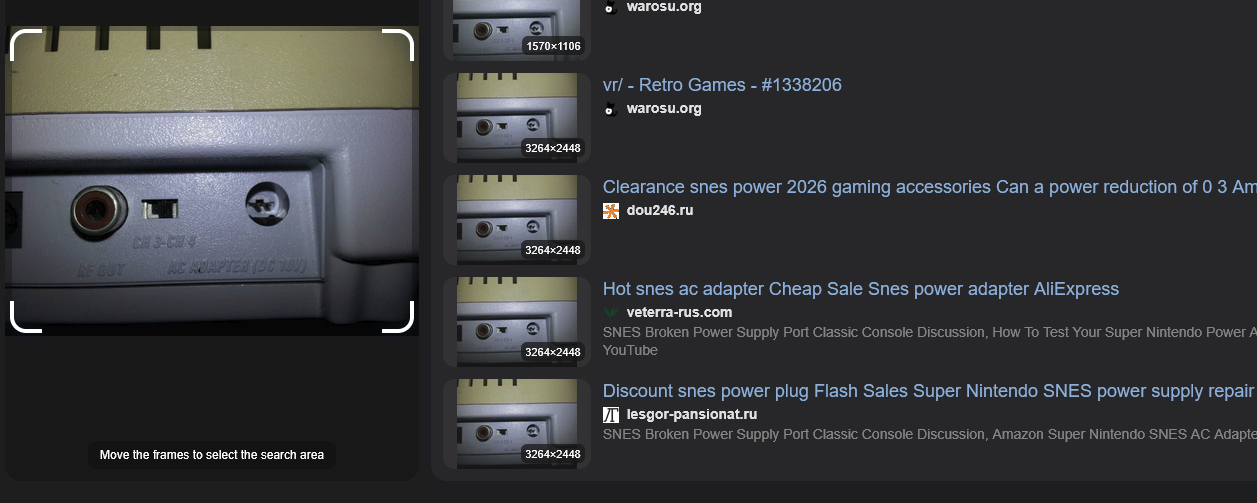

>>12885925>my childhood snes>it's just the usual schizo retard posting screenshots of consoles he doesn't ownWhat a sad and embarrassing schizo lolcow
>>12887574it was an AI training thread all along...
>anon accidentally his super nintendoI'm so sorry...
this is why i took the emulation pill years ago. these old consoles were built far more reliably than the products we have today, but nothing is forever. tick tock uncs
You 99% used a center positive power cord and blew the fuse. Check/replace the fuse
>>12887437>I've seen enough gore(You) problem
>>12887490>wooshlol
>>12887574*LIKE* picrel, can't you fucking read?no one said "hey this pic is my super nintendo, pls fix it for me /vr/ kthxbai"
>>12887481based /diy/chad
>>12887480Iykyk>>12887481If you actually lurked here you'd know otherwise>>12887746That no one on on the video game boards can fix their shit?
>>12886831post more botched repair gore
>>12885974>paying $220+tax+tip for some autismo shit when you can just buy an original SNES off ebay for $50 or lessyikers
>>12887654The whole thing?
>>12885974this is the most obvious shill post i've seen in years holy shit
>>12889048>that no one on on the video game boards can fix my severe mental problems?
