>>2922997
>>>/fa/
Go back

I don't know what I qualify as. I got trained OTJ to operate mills to the point of manually editing some code and even programming our lathe, but pretty much just stuff directly related to simple operation. Everyone else left so now I also cut my own material and decide when/what to run but it's all the same production parts, not the one-off jobs the boss does. Sadly, these other tasks, including kitting and shipping, mean I have very little time for idle phone browsing.

File: IMG_6051.jpg (278 KB, 713x623)

278 KB JPG

>>2923006
$16/hr to do this all day baby , only draw back is that bitch I gotta give child support to

being trained as manual machinist and fuck my back is killing me. They train me on the machine that no one uses because it doesn't have autofeed, some polish antiquity looking bullshit. It makes cool stuff but god damn. Going to have full on popeye arms at the end of this.I'm almost done with my starter projects and will have time for some g-jobs. Anything cool I should make while I have free time and a lathe? (something I could take out of work in a backpack)

File: file.png (673 KB, 1339x952)

673 KB PNG

>>2923159
I rarely get to use our lathe, and i know a place that has a cnc lathe i might be able to get access to so i just started making shit in CAD and getting the files ready.
I made a centre punch already(manually), it doesnt take long.
If you have access to a welder you could make more shit like a bench vice, F clamps etc. which i made in a course before i started my trade.
also
>hammer (i want to make a single piece solid one then one I can change the heads of)
>chess set, i was thinking brass and maybe nickle plate one set?
>coins, if you have access to a router/laser/mill you could make cool ones
>tap wrench
>slide hammer and accessories.
>custom chuck key
>spinning top
More ideas would be cool as i have access to a mill and shit as well.
I have no training for picrel, hopefully it doesnt explode if i get a chance to try it. i'll add a knurling tool if possible if it works well without.

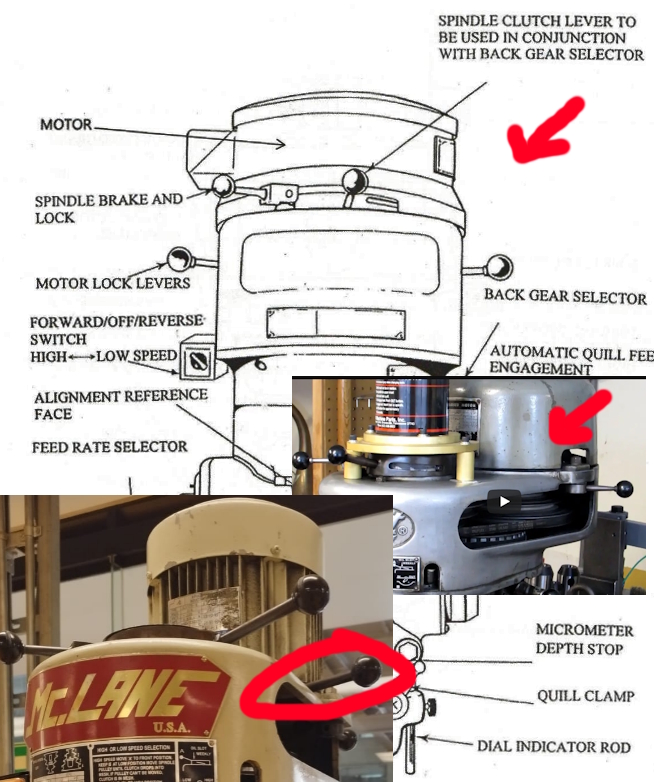

File: lever.jpg (335 KB, 654x782)

335 KB JPG

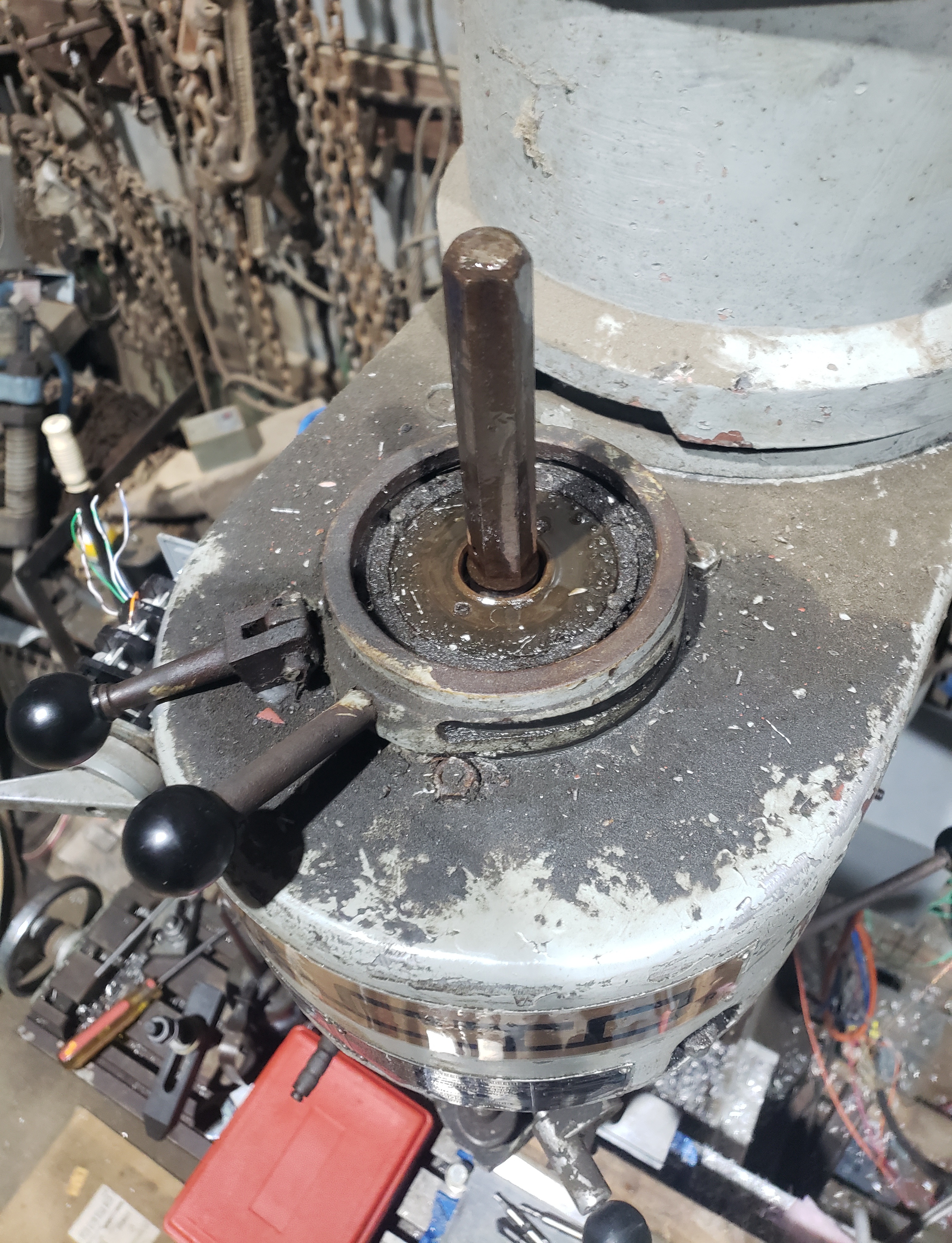

My local makerspace has a Bridgeport step pulley clone that has an extra lever, and I cannot find any manuals or references on what it actually does. Anyone have any idea what it's for?

Pic related. On the background is the official documentation from Bridgeport, which is the grey machine.

>>2923407
its just a lever sticking out of the motor to make it easier to pivot to slack and tension the belt

>another episode of wagemonkies pretending their jobs are complicated while getting paid $16/hr
Why are machinists like this? The software basically does everything for you anyways.

>>2922997
you dont even know how to make a thread properly, why i am not surprised

>>2923411
When they pay you $18/hr you have the write the program by hand

But you’re only allowed to program if the engineer orders 10 or more

If he only orders like 5, then you have to make it on the Bridgeport or the lathe

>>2923411
>The software basically does everything for you anyways.
lmao
lmao even

>>2923409
This.
Was present on the one I learned on and that was the only use aside from being able to hang ear protection or magnifiers on it.

>>2923407
>local makerspace
This shit doesn’t exist where I live. It sucks

File: PXL_20250513_213555727.jpg (2.51 MB, 2304x3060)

2.51 MB JPG

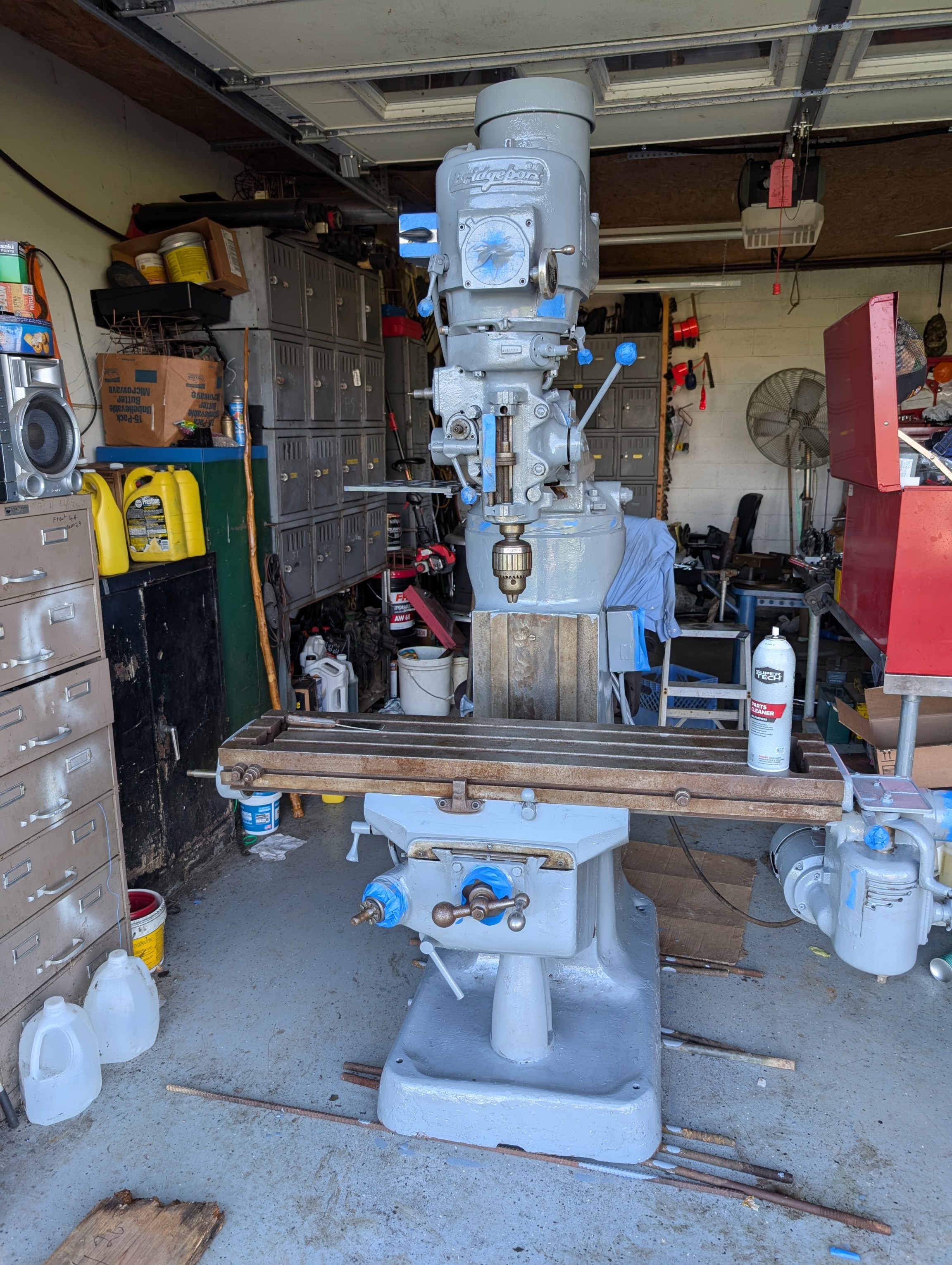

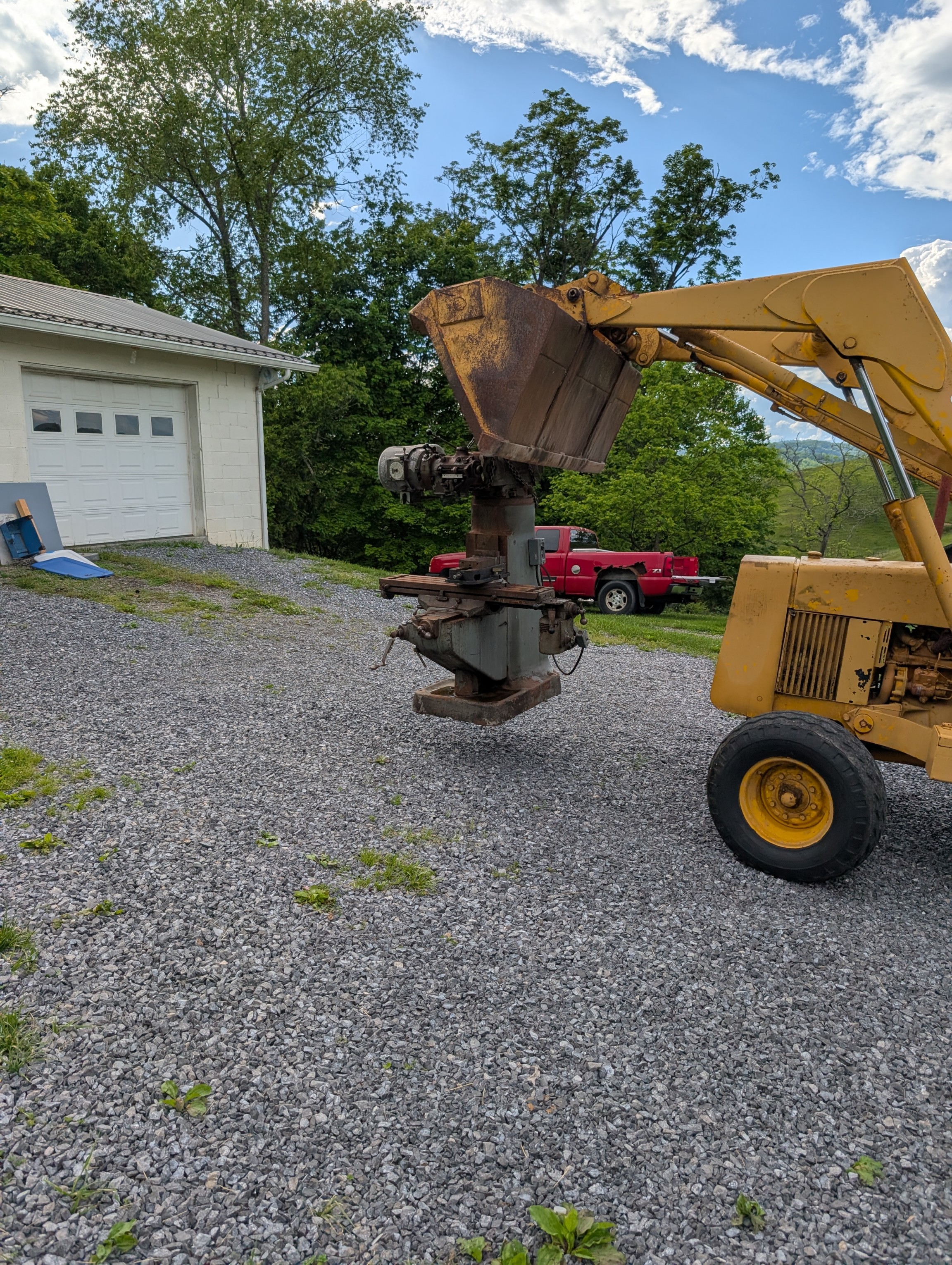

got a mill

File: PXL_20250517_191023570.jpg (2.09 MB, 4080x3072)

2.09 MB JPG

>>2923562

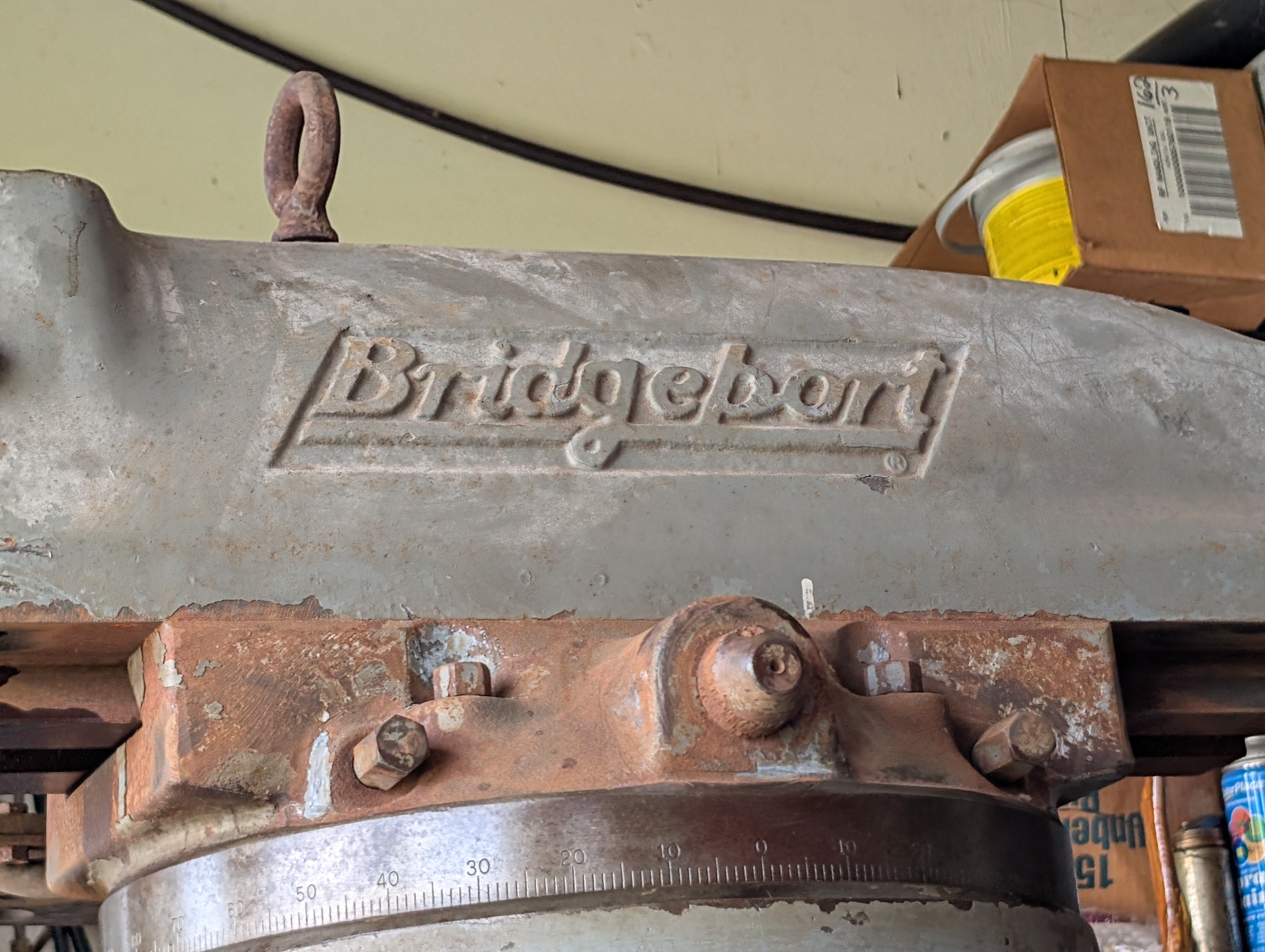

a bridgebort

File: PXL_20250517_223621417.jpg (1.48 MB, 2304x3060)

1.48 MB JPG

>>2923563

>>2923407
Note directly opposed to that lever is a lever labeled "lock leverS"

File: 20250611_190933.jpg (3.2 MB, 3024x3948)

3.2 MB JPG

>>2923577
have you ever run a belt flopper?

>>2923569
Gore goes on /b/, anon.

File: 9d2qt6.jpg (63 KB, 500x500)

63 KB JPG

>>2923595
anons obviously been training at the sheboygan institute of shyster machinery dealers. hes a natural at it

>>2923569
Hey goyim, there is plenty of metal underneath all the surface rust

Back lash is a safety feature my friend, instead of breaking your cutting tool with such a large amount of backlash my friend saves your cutting tool!

>>2923503
Don’t bother

99% of the time it’s ryobi drills, white upper middle class dads asking for help fixing bikes for some reason, white upper middle class women asking for help with painting something from a thrift store


A random dremel or shark or Joanna brand 3d printer from fucking 15 years ago that can only do proprietary cartridge PLA with a tiny unheated build plate and


A drill press with more holes in the table than you can count

A Bridgeport that nobody touches, with not enough r8 collets to do anything, no endmills, almost seized, try to move X and you think the axis brake/lock/hold is on… it’s not.

Unplugged

No mist coolant thing,


The bijur oil thing probably broken or if it’s there no way oil to put in it


If you’re lucky a lathe

Scroll chuck only, no live center, tail stock not aligned, missing tool holders, no hss blanks, if you’re lucky a grab a broken drill to make a turning tool pull of no bench grinder to form a tool with

Or if there is a bench grinder, wheel is undressed, nothing to dress it with, and the wheel is dangerously worn out and small in diameter


Get to pay monthly
It’s a co-op so it’s filled with liberal hippy types

Since it’s a co-op it’s in the reqs to help other people


90% of the time “help” people is basically do their entire project for them because they underestimated the scope of work, the cost, lack the ability to even start , and difficulty of the project

File: oil.jpg (1.28 MB, 2880x2487)

1.28 MB JPG

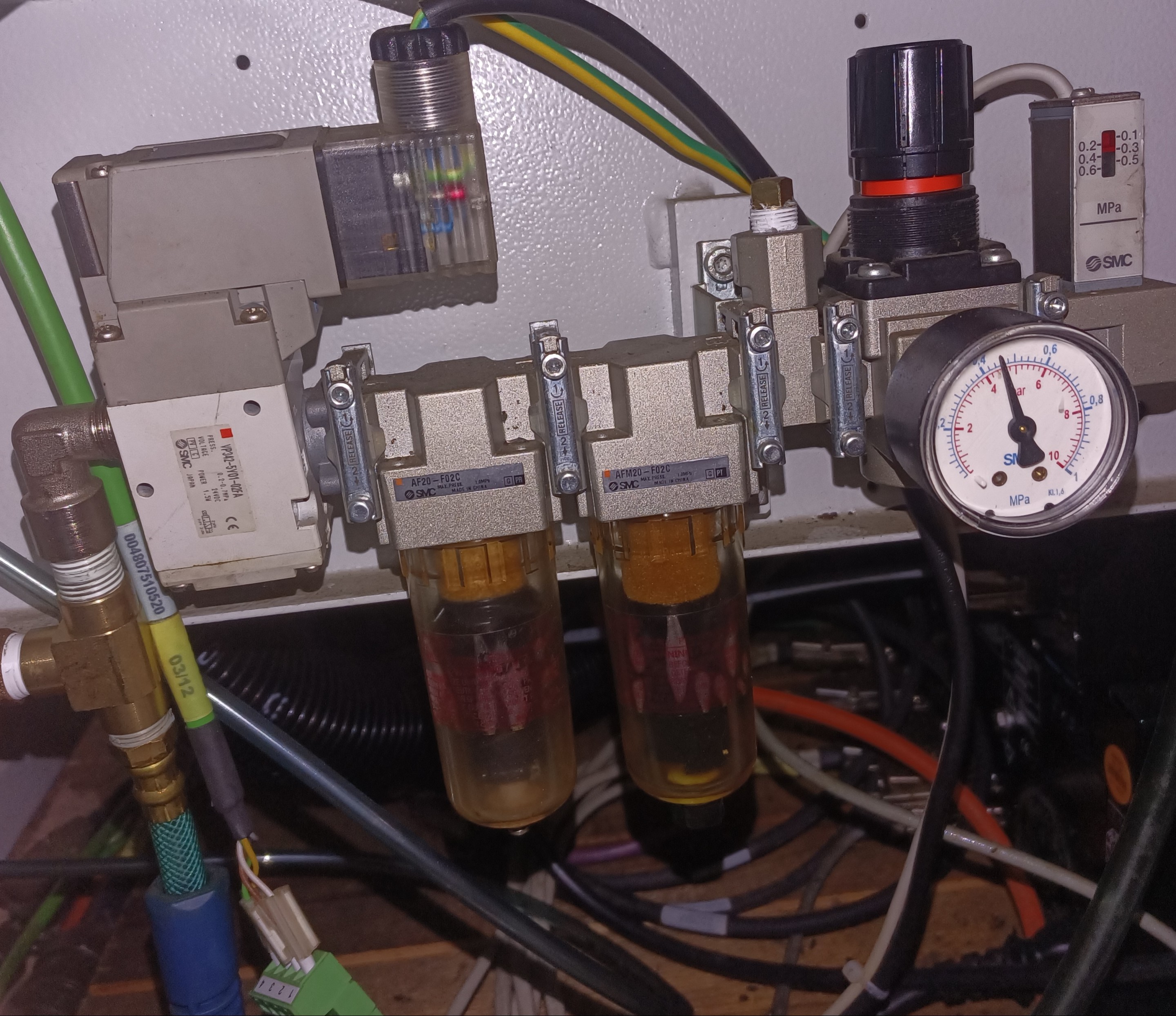

Not really machinist question but maybe someone here can help
The mist separator on the CMM is leaking from the bowl. Does the entire unit need replacing or just the filter element?

>>2923693
Depends how it's leaking, but you can usually get replacement bowls. Is it the drain on the bottom that's leaking, or is it seeping from the top?

>>2923693
The filter isn't likely clogged as they auto drain by design. But you can replace it if you feel like it. Oil mist separators are likely to leak pretty consistently if running in a humid environment.

That whole unit (SMC AFM20-F02C) only costs $62 direct or through distributors. The filter is around $14.
https://www.smcpneumatics.com/AFM20-F02C-A.html

If it's a Zeiss machine I would keep a spare handy as their porous pad air cushion system is a lot more delicate than competing brands.

>>2923752
It is a Hera.
I saw the price was fairly low either way, just want to impress the new boss since I don't have much CMM experience but have already recapped an old comparator DRO for him

>>2923752
Thanks you also.
It is very humid here so that explains a bit.

should I spend an entire year's salary on a cnc mill

>>2925463
no unless you have tons of savings and really enjoy this or a good business plan to make it work

File: 1a34951u.jpg (224 KB, 1300x1001)

224 KB JPG

>imagine the handies

>>2925740
>calloused and full of metal slivers
I'd rather not.

File: 00m0m_7xc50hGzvQDz_0t20CI(...).jpg (96 KB, 675x900)

96 KB JPG

>>2925465
nta, but I do need a small CNC mill for my business. Is this the right thread to ask for recommendations?

We probably won't ever be making anything larger than 10" in one direction and 4" in either other directions. Usually only within a 3" cube. Mostly cutting aluminum, maybe steel too.

Do you have any recommendations for a good starter mill under $800? Doesn't need to be fancy, just work. Precision probably on the scale of 0.2-0.4mm

>>2923357
Bro idk I always grind my center punches out of old broken or worn out taps. Steel is already heat treated and it doesn't get any better than HSS for durability.
If I let you use my CNC lathe and you would waste my time, your time, machine time and wear for a fucking center punch you could buy for 5$ in the store I would kick you out of my shop instantly.

>>2925795
>nta, but I do need a small CNC mill for my business. Is this the right thread to ask for recommendations?
as good as you get in 4chins i guess
just please dont listen to sieg
which steel? how complex is the geometry? 3 axis cnc?
how fast it needs to be?
those tolerances are thrash, so that at least is good, but still, that is kinda low budget desu , unless it can be done with a chang special mill router
are you in the usa? i guess?

>>2925797
The CNC lathe never gets used, it's at a training org. (aimed towards troublesome kids) gathering dust, it might've been donated. i thought of it as an opportunity to learn myself, and leave some code for the instructor to show students. CNC is out of scope for the training they do, but maybe it will get some kids interested seeing it make something. They do learn about heat treating there as well.
Luckily my boss is chill and lets us use the tools/machines/consumables for personal projects as long as they arent in use/needed.

>>2925828
I don't know steels, but honestly certain stainless steels would be ideal.
Geometries will be simple, only every milling one side, flipping, and milling the other side.
I don't have a sense of speed yet, but I'd like to be able to mill away a 3" cube in 3 hours.
Yes, I'm in the USA.

I really just need a mill that works and can get me introduced. It doesn't have to be the best. We can get a nicer one later on, once we're more familiar with it.

>>2925869
>Geometries will be simple
have you considered a non cnc?
i mean depends on where you are but you could get a pretty decent second hand old mill built like a tank for that price instead of a chinese basic cnc router, strap a digital readout and you will have a versatile but manual machine
the lower end on cncs are kinda bad

>>2925930
The majority of parts are rotationally symmetrical. Like, if we had a good metal lathe then we would be set. I was assuming that a mill would be cheaper. Could you get a mill with a base that does full rotations around the milling bit?

>the lower end on cncs are kinda bad
Thank you for the tip

>>2926103
anon then get a lathe... no they are not necessarily more expensive, where i am from you get them cheaper
and 3 inch parts can be milled in a lathe mounting them in the toolholder
look on craiglist where you are and cities near, if search around enough, you probably will be surprised, people showed what they scored on past threads. you may need to travel a little for a good deal desu!
fucking sieg didnt link past threads
and if not you can get basic lathes in that budget in aliexpress, and some anons mentioned that those same chinese ones are sold in your local hardware big chains

File: 20250623_193715.jpg (225 KB, 1849x1048)

225 KB JPG

HS kids in shop class be like

>>2926103
>Could you get a mill with a base that does full rotations around the milling bit?

A simple rotary table is the ticket for knee mills.

>>2925795
>under $800
You could *maybe* get a passable manual mill for that price for those tolerances, but for CNC you need at least another zero.

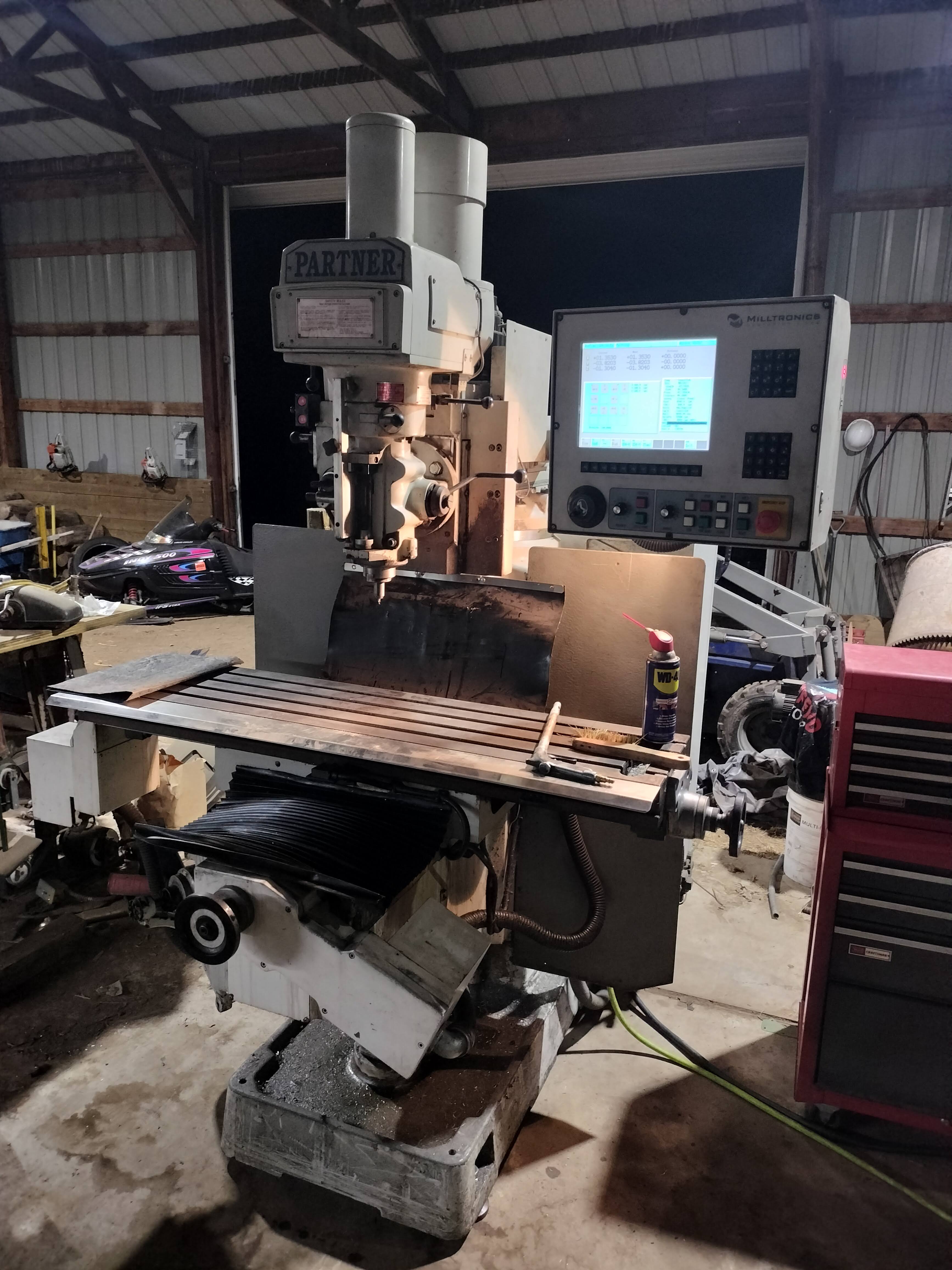

File: 20250623_181546.jpg (159 KB, 1080x1064)

159 KB JPG

>>2926266
its usually opposite that. a semi functional cnc is nearly free save for the rigging. either way 8 bills is low buck shit. i sold a fully operational and tooled bridgeport cnc for $2k a couple years ago and it took over a month to sell. i finally got a guy to buy it if i delivered it (paid add'l $500). it was a clean mid 90s machine with low hours but the control died so i put mach3 on it. made good parts but couldnt rigid tap and no toolchanger sucked
picel is a mechanically superior machine because it has more z travel. anons $800 would buy it i bet but expect 50/50 to have it work when powered up due to sitting. i wouldnt hesitate to retrofit the control if freetime was cheap/available

>>2926271
If his budget isn't even $1000, he absolutely doesn't have the money or hookups for a 3-phase, proper mill after factoring in the tooling and repairs.

>>2926272
>he absolutely doesn't have the money or hookups
i dont doubt it on this larp site. its nothing to need a $75 carbide endmill and thats just a single cutter. then you fat finger the 0 and auger it in and hope you had a spare bought so youre not waiting days for a replacement in the mail

Say hypothetically you were a casual crossdresser or trans woman, what kind of fashion would be safety conscious as a machine operator. Tied up hair and jeans and no loose clothing is key right

File: 1471439091638.jpg (46 KB, 500x494)

46 KB JPG

What DRO to get for a Bridgebort? I was looking into touchdro but I think I would like using something with physical buttons over using a tablet touch screen I guess the functionality would be a lot better than some of the Chinese dros like the toauto but the price is a big plus for the toauto

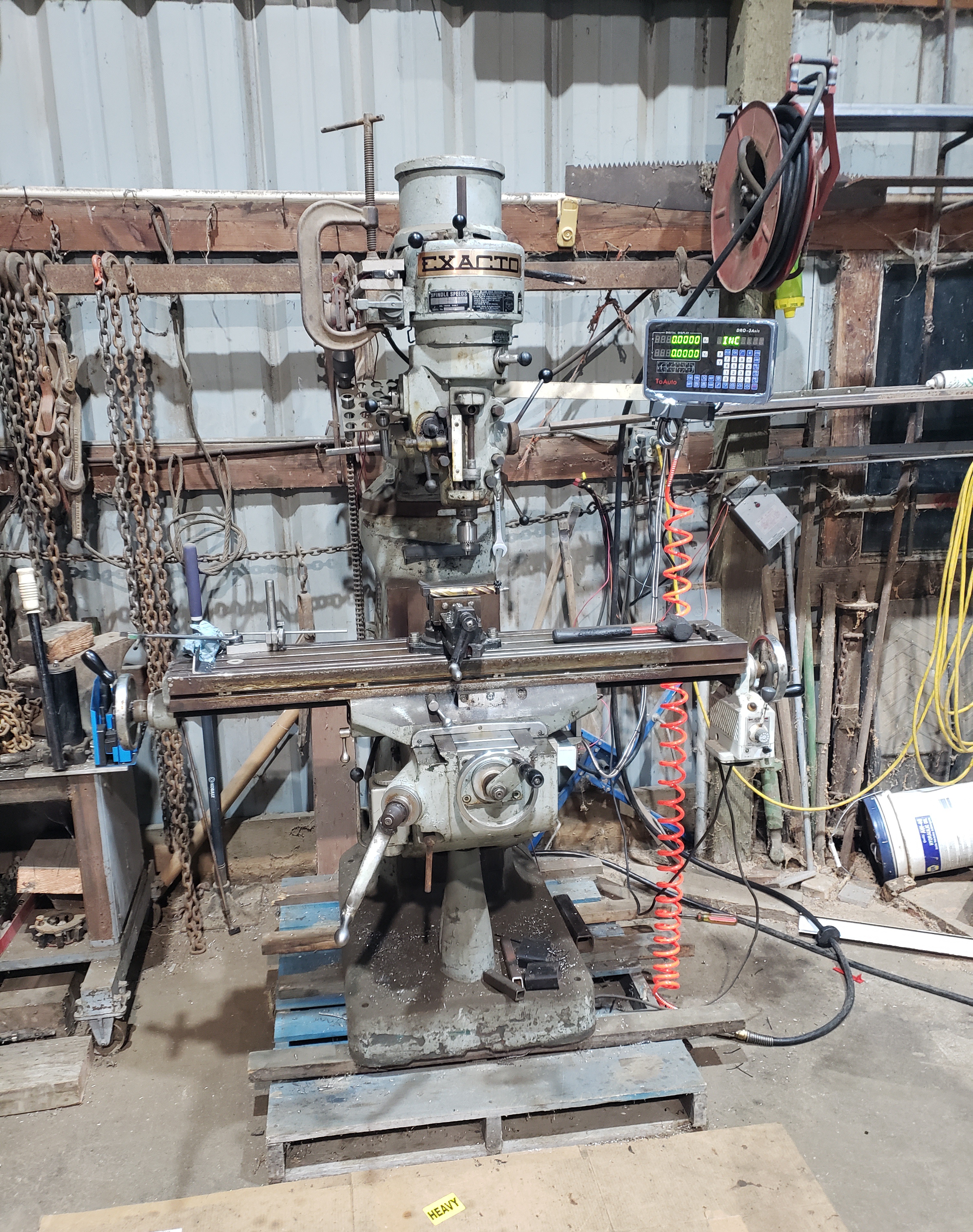

File: 20250626_170353.jpg (3.78 MB, 3024x3830)

3.78 MB JPG

>>2926953
put a chinkauto on a beater mill last fall. been flawless since. i would not hesitate to do it again and theyre a bargain at $175

File: PXL_20250622_201616452.webm (2.1 MB, 1280x720)

2.1 MB WEBM

>>2926958
I might just do it anything would be better than dials right now and the scales would probably be compatible with touchdro if I ever wanted to go that route

>>2925795
$800 won’t even get you the tool holders, collets and vises if you got a haas vf-2 for free

I recently sold about 40 tool holders for $7000, HSK style

File: 20190710_101955.jpg (3.75 MB, 4128x3096)

3.75 MB JPG

>>2926976
>touchdro
if youre gay for a lcd screen for some reason just order the components from ali. you can get a nice lcd box for about $150 and the sino ka 300 scales are about $50 ea. i dont know what a screen offers over plain readouts because i do all my hole location figuring in cad or on paper. i never use the pcd function. 90% is 3/4/6/8 holes and thats just a quick radius multiplier for the trig location. once youve permanently etched .866/.500 and .707 in you brain its stupid quick to do bolt patterns

File: file.png (35 KB, 1231x554)

35 KB PNG

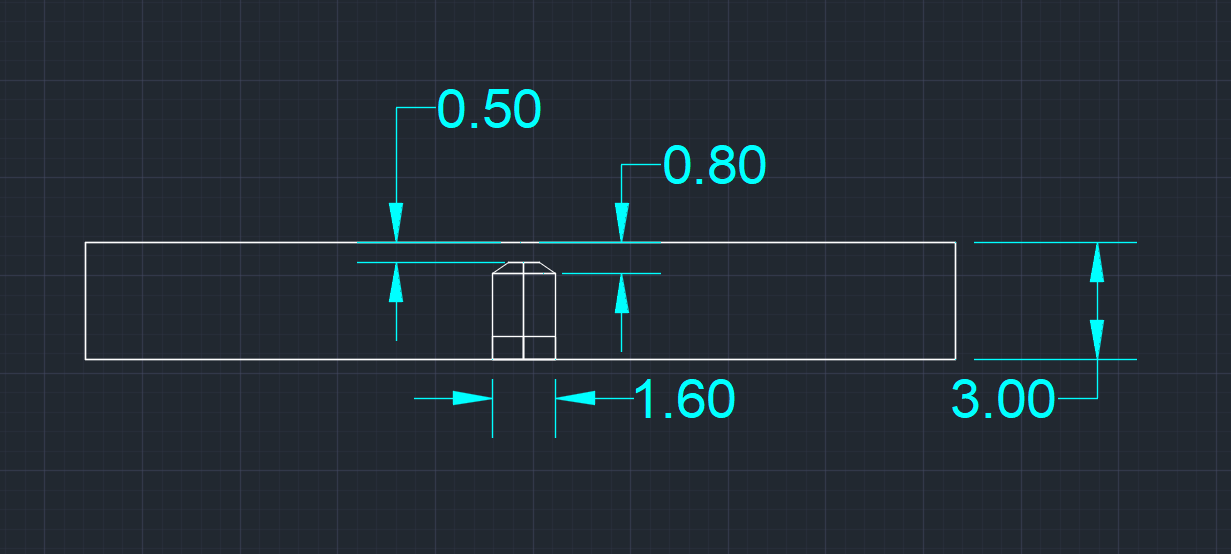

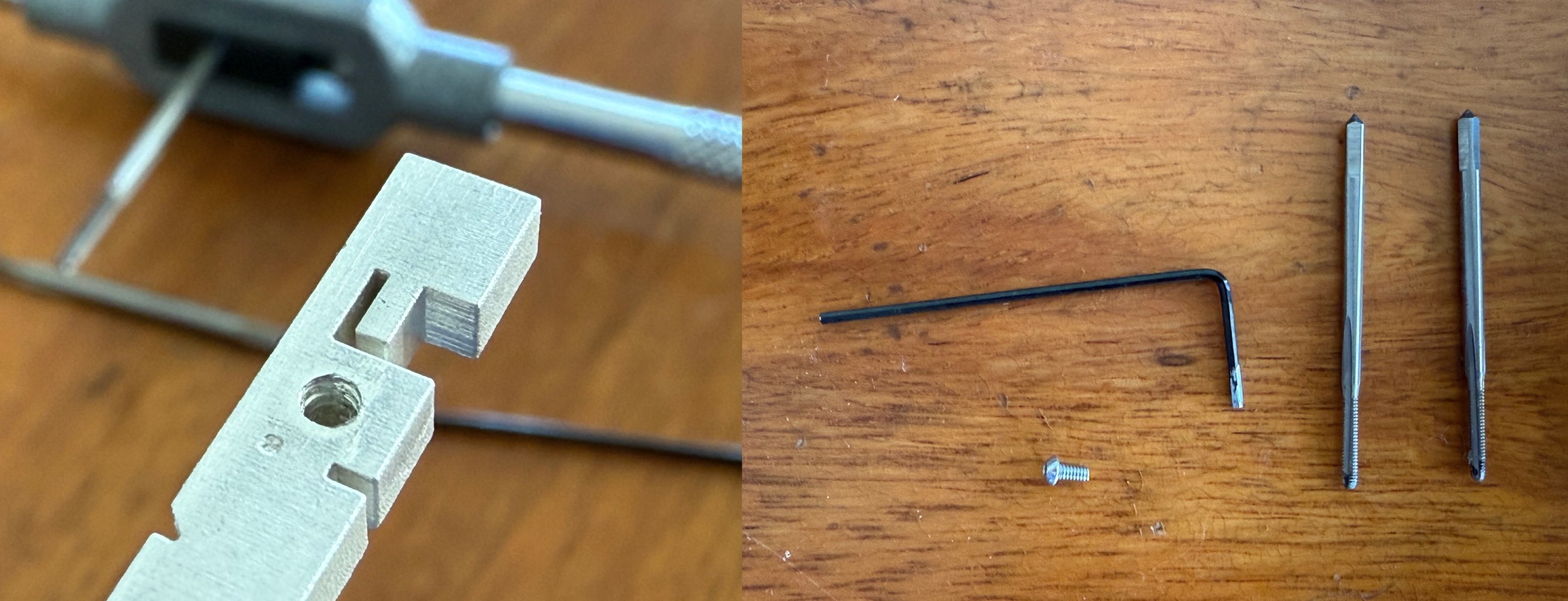

Machinechads - I need a few small parts tapped but don't want to get it thread milled and pay my guy hundreds to buy the tool and labour.

How can I do this myself?
Metal: sterling silver (cast with 1.6mm dia holes)
Need to tap for M2 screws. 0.4mm pitch
M2 has a 1.567mm minor diameter, 2.0mm major diameter.
What exact taps do I need because I see a few different types out there.

>>2927027
Also I just realised that this cast may fail due to the 0.5mm clearance between the hole and top face.

>>2927027
>>2927028
you can always buy a set of taps, the kind that allows use 2 or 3 taps to do a single thread, so you can thread until the end, this way you could get a thickness of 0,8mm instead of 0,5. you will probably need to use also a mill flute to flat the drill cone
as a reference, https://www.mcmaster.com/8305A511/
you may need to grind the end of the taps, desu, finding one clean is not that easy
you may also only use one tap, in that case you need the bottoming chamfer one

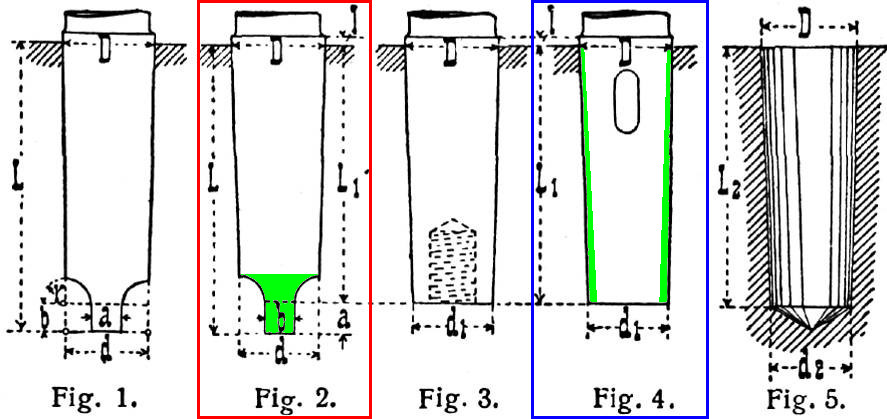

>>2927027
You need a form tap, bottoming so it’s got no lead in. Make sure your hole size is correct for forming threads before doing it

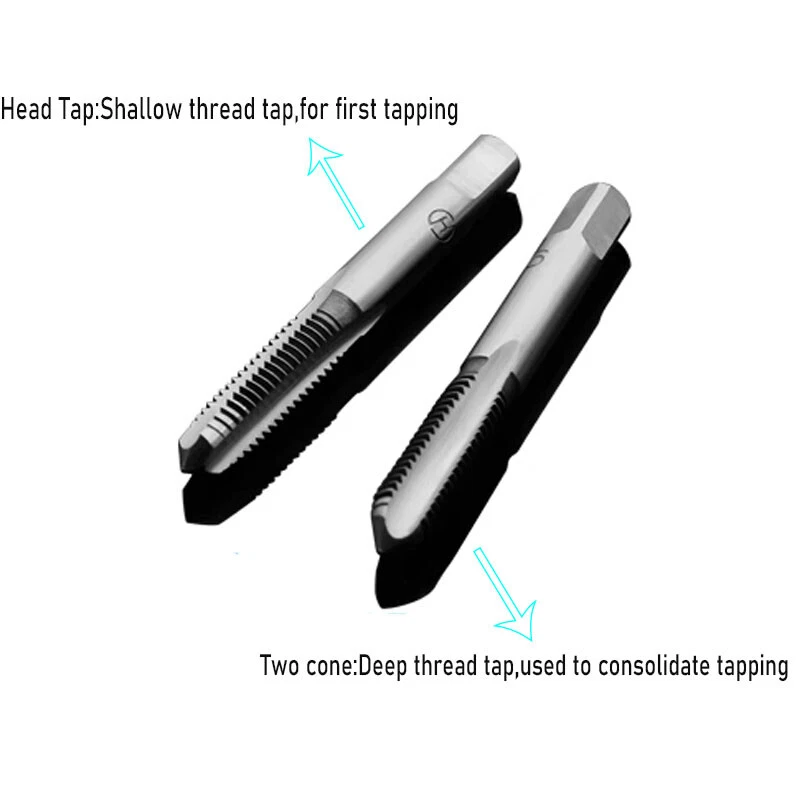

File: s-l1600 (2).png (177 KB, 800x800)

177 KB PNG

>>2927033
>you may need to grind the end of the taps
This was my plan. I bought these and will pray I don't snap these ebay jobbers in the hole.

>>2927035
that should work on silver, i guess. general advise, dont do only 2 steps on difficult materials
but as i said then cast a little less depth and the use a end mill as a flat head drill to finish it https://www.mcmaster.com/products/end-mills/?s=1.6+mm+end+mills
(i am from the eu, but if mcmaster website is not the best one to use as a reference, i dont know what would be)

>>2927038
>>2927034
Understood. Thanks for the advice.
I'll bookmark the thread to post results.

>>2927039
be sure to understand what is tap forming and if that is a good idea on silver, it may be
just to let you know, there is a general consensus of taking what sieg posts with a grain of salt...

>>2927039
also usually this thread is emt , he added the operator bc is what he is

>>2922997
Be careful
The more you try to avoid responsibility and learning, the more you actually learn about this trade.
Happened to me years ago, i couldnt have been happier pushing button, but as time went on i started getting annoyed at the programs running slow so i started pissing off the programmer and soon he turned into an office fag and i was left with 3 cnc mills to program and service.
I had young kids fresh out of highschool pushing buttons and taught them everything i knew so they take on more responsibility.
Pay increase was good but it wasnt what i wanted.
I wish i kept my mouth shut and pretended to be retarded so they feel sorry for me

>>2927027
Lol youre fucked if it breaks
Also, if it doesnt break, half a mm is so thin the tap might drill the hole trough by accident

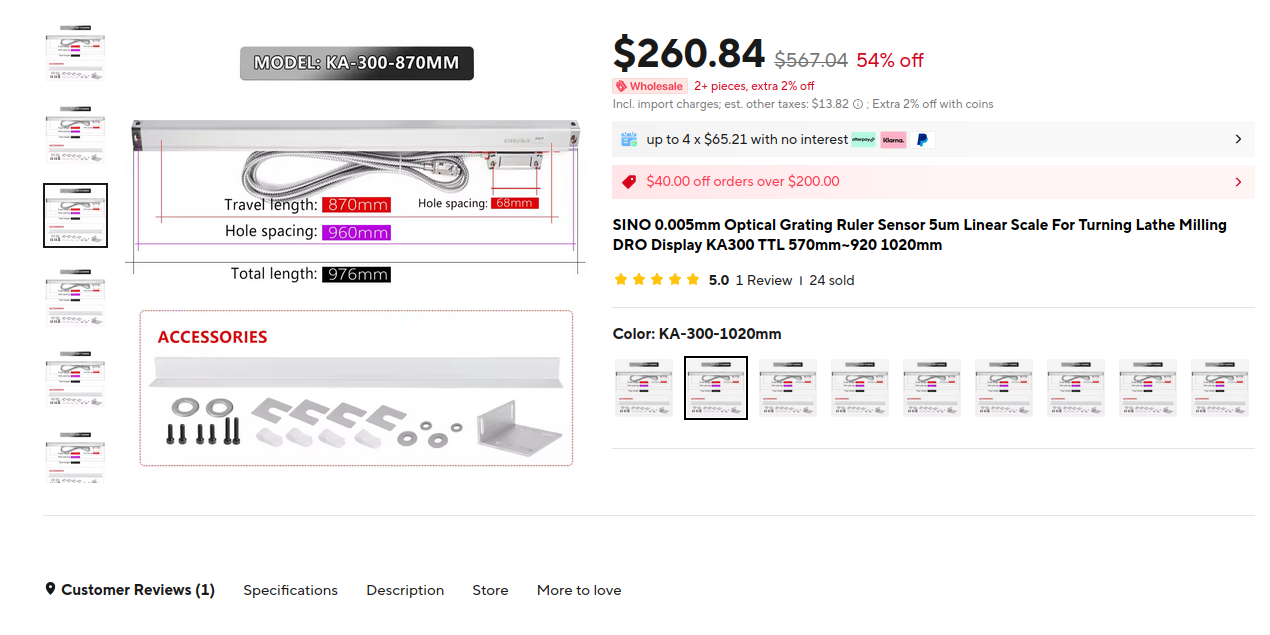

File: Screenshot_20250628_085016.png (283 KB, 1270x635)

283 KB PNG

>>2926995
oof

sneed's feeds and speeds

formerly on 4 jaw chuck's

fellows
i shot the shoot the shit by square
carbide CARBIDE with RADIUS brokes
the boss nigger says make out of plate 24
i do by cut, but by thick of plate?
so i iphone machine to keep carbide in place, not shell shitll by shell of 2 inches of surface and saprikng despite pilk
bullshit
pay your fucking debts and give me what i sneed, ill ballet
china
CHINA is affordable for me
yiyu pay me?
you complain about me?
im back to working at the

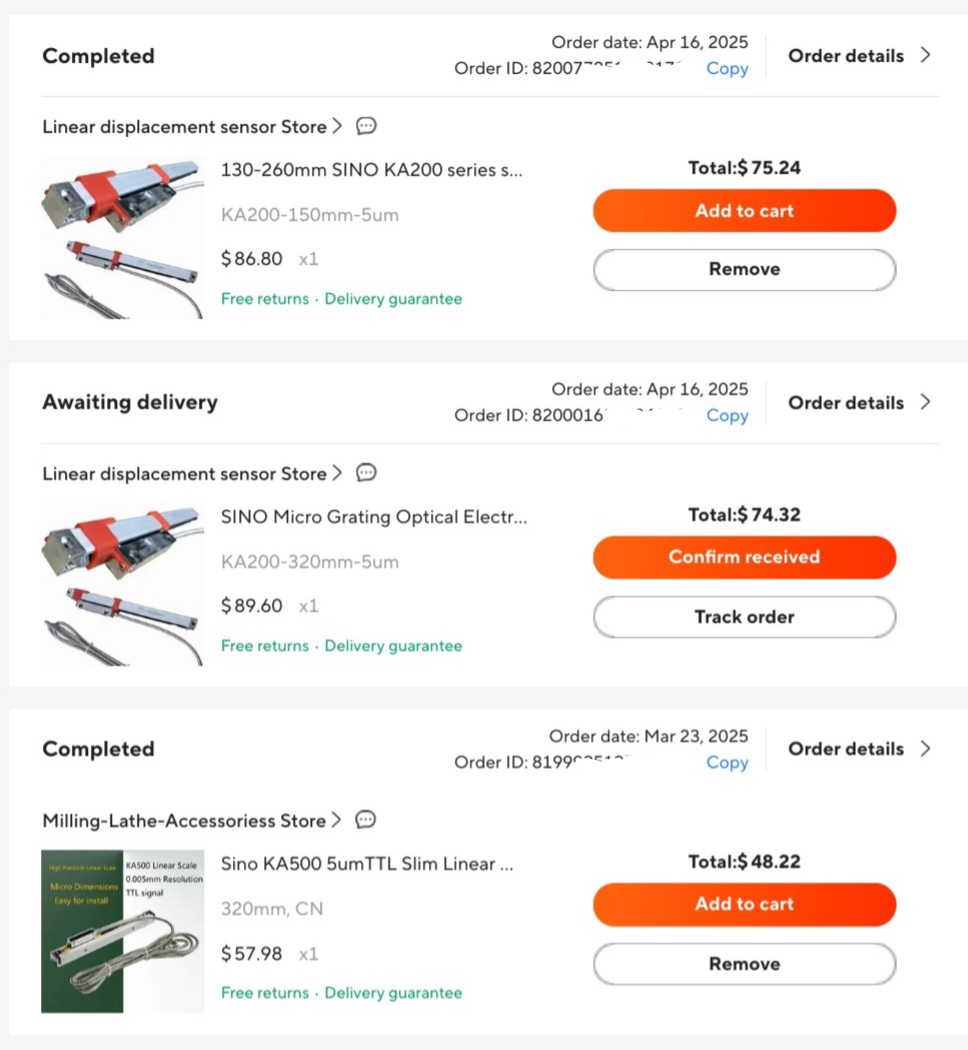

File: 20250628_120512.jpg (148 KB, 968x1050)

148 KB JPG

>>2927291
ouch. i bought these for a little horizontal mill and they were way more than the price of the ka300s at the time because theyre small sized to fit
you only need a 900mm for the x if its a 42" table. the toauto kit cant be beat for price

>>2922997
You are lying. You have to set the tool heights and zero in stock.
And you probably have a dedicated programmer, meaning you probably have to check the program you are about to run.
You already know basic g code and can predict a mill break based on the sound it makes.
You are slowly getting experience and soon you will get more and more responsibilities at work and now you feel like you miss the simpler days.
It all starts eith the introduction of M1

File: 3b4.png (305 KB, 534x486)

305 KB PNG

>>2927446
>started as a button pusher with a 2 year degree
>job shop so all kinds of random shit
>learn everything I can
>get promoted
>learn more
>get promoted
>make connections
>unlearn the shit they taught wrong
>learn more
>am now the lead programmer and project manager
>learn more
>make connections
>get head hunted to build an manage a new shop from the ground up
>mfw I get paid $45/h to spend most of my day shitposting and reading manga, occasionally doing a setup and programming a new part
>mfw I get random, six figure job offers multiple times a year
>mfw it barely took 7 years to get to this point
I laugh when I see shit like "lol try that in inconel". The stuff I've seen and had to machine would make most machinists cry and had tooling reps look at me like I was insane.

File: shamefur.jpg (67 KB, 319x480)

67 KB JPG

>>2927446
>replying to a moronic sieg poast seriously
lurk 4 moar years

>>2927449
lol try that on plastic

>>2927451
Depending on the plastic, unironically true. Some of them are awful.

File: 5 (1).png (1.26 MB, 1280x1440)

1.26 MB PNG

>>2927454
Would these red hanger elements be machinable out of any (slightly flexible) plastic? Nylon?

>>2927459
In theory yes, but you'd be surprised how expensive the stock is, and those aren't simple shapes to hold, especially for plastic. You'll be better off 3D printing them. The one looks awfully long and thin though, I can't imagine them holding much weight at all.

>>2927459
I wouldn't even machine that, id give up immediately, either i sell trillions of those by making injection molds or i wouldn't do it at all.
Depending on desired tolerances, which for coathangers and furniture parts are dick worth, they would remain the same, depending on if trash plastic only is injected, wouldnt even bend.

>>2927450
>replying
he literally created a thread
Button pushers are nothing but a source of wonders and solutions none of which the old heads me included arent even aware of yet
anon, i worked with button pushers, i still keep contact with some button pushers, some button pushers are friends of mine, weeb, youre no Jack Kennedy

>>2927353
Your superiors dont want to buy new end mills, ''shells'' for shell mills, nor do they pay for sharpening end mills, therefor you are tasked for performing the same while having nothing to perform for, which either means, you take bullnose mills and program I machining in solid cam for taking down large depths, which further means, you are running out of stock metal as well
You also mention debts, the company is in deep debt to metal providers, endmill providers, end mill sharpeners and probably state funded electricity providers, not to mention the coolant or maintenance
and you type as a retard, trying to joke your way out of your misery
You should quit, try being a bartender, driver, anything, for at least half a year but search for machining while you are at it.
It never ends well when you work as a machinist that doesnt have access to tools, they dont take you seriously no matter what magic trick you pull out your ass, the company you work for is going under.
I can relate, i was in the same situation, but you have loyalty issues

>>2927699
you could decipher that peak schizo post?

>>2927801
I have been in similar situations and have worked with actual schizophrenics and autists, they focus a lot and predict problems easily.
Two shops, both went to shit because of the owners, same problems, dull and broken end mills, no shells, no drills, no good stock material, but infinite and endless demands.

so i need to do this dive with a 55/64 four flute endmill to widen a through-hole, the problem is i only have a drill press with a jacobs taper 3 and the ER32 collet chuck only has a morse 2 so basicall i want a sleeve that fits into the female jacobs 3 but also takes the morse 2, somehow there are only dual male arbors on the interwebs, wat do
also the vape smoke makes my bones hurt
also

>>2928148
Are you saying the drill press has a *female* JT3 spindle? That's pretty unusual, they're usually MT2/MT3. I actually don't think I've ever even seen a dual male JT arbor.

>>2928148
Can you post a pic of a shank that you know fits into the drill press?

File: TL051013.jpg (98 KB, 887x419)

98 KB JPG

>>2928154 >>2928152
could
clocked out already, basically its picrel, machine takes red square 3, collet chuck arbor gives blue square 2 need a thing that solves the green problems

>>2928167
Anon, I'm 95% sure that's a morse taper, not a Jacobs.

https://www.shars.com/mt2-outside-mt3-inside-7-3-4-extension-morse-taper-sleeve

>>2928167
Sorry, wrong link.
https://www.shars.com/mt3-outside-mt2-inside-4-3-8-morse-taper-sleeve

>>2928169
something funky is going to find out
some of you guys are alright
dont go to the hardware store tommorrow
may the machine god of stiction bless you

Which steel do i use for wood chipper blades?
Im building one like this:
https://www.youtube.com/watch?v=3WiShUSggas

I did some calculations and some reading, i found out the angle dimensions of the entire blade, the shaft is 50x50 (mm) where its square and rounded 30 in diameter on the sides, a tractor is going to power it instead of electric motor, so it has a lot more torque on 300RPM.
Since you people go trough a lot of steel, which one do i use that wont bend or dull easily (the wood it shreds wont be tough nor dry)?
Have in mind, in the video, the man didnt put any fixed blade on the bottom, its just all flat, i on the other hand have placed a fixed knife made out of 1.2379 steel, i have no idea why was it expensive or praised by the machinist guy that milled it into shape for me, i guess its tough, he recommended not to make the spinning blades out of it because if it runs into something, it explodes like a grenade and its too dangerous.
I dont plan to heat treat the blades either, id rather have them bend than to have them fly in pieces everywhere if something gets caught in the chipper.
Note that i have absolutely no idea how steel is classified nor the names or markings, i only know the requirements for steels characteristics and price ofcourse, meaning i need it cheap.

>>2923569

I could tell from the thumbnail its a bridgeport

>>2923146

Thats why i collect unemployment and pay my support off that while making 20$ cash an hour doing contract flooring on the sider

>>2928363
>1.2379 steel
German fag spotted. That's D2, it's a high end tool steel. Very abrasion resistant so it makes good knives, but the as the guy said it's not very shock resistant.
>I dont plan to heat treat the blades either
You'll be sharpening them all the time then, green wood is harder to cut. A2 tool steel has pretty good impact resistance and you can harden it reasonably with a torch, or O1 steel with a torch and some oil. Both are pretty cheap.

>>2928430
How about 1.2080 dont know how much that is in hamburgers, 4957 google says?
I can get it for free if I can trace the plate, it has holes and stuff on it, I think I can get 4 blades, do you have a chart by any chance, table i could use that translates the standards for steel?

>>2928439
That's D3, same issues. D series tool steels are also very difficult to machine because they just eat tooling. If you don't harden it, it shouldn't shatter, but annealed D2/3 is relatively soft, just stupid fucking tough so it might bend from all the impacts. You'll want the blades at least 50 Rockwell C hard regardless of alloy, or they'll wear out crazy fast. Hitting specific hardnesses without special equipment can be difficult though. I wouldn't worry about shattering that much however, the hardest thing you'll probably hit in what I'm assuming is raw timber/tree trimmings would be nails, which any of these steels should go right through, or stall the motor out. It'll mess up the blade but as long as you're not chucking rocks in the thing and are wearing proper PPE, you should be fine.
A2 is 1.2363
O1 is 1.2510

>>2928439
Prices vary drastically from the US to Europe, but based on prices in the US, you should be able to get enough A2/O1 for this for under 150 Euros.

>>2928440
Ok, thank you.

>>2927257
Responsibility creep is called scale creep in project manager speak and is actually a huge fucking problem in today’s workforce

You got machine operators making machine operator wages ordering materials, driving fork lifts and programming parts

Part of the reason I tell everyone to jump every 1-2 years is not only is it the only way to get out of poverty as a machinist….. it also mitigates scale creep

>>2928389
*bridgebort

File: Screenshot 2025-07-02 234111.png (88 KB, 960x673)

88 KB PNG

>>2928440
I made a decision to go with D3, I made some inquiry where they heat treat metal around me, they charge by weight, not expensive at all and the material is free for once.
This is how much it will stick out, M16 hex screws, a ribbed plate under their heads instead of washers, it wont go anywhere, if something was to snap, I will put some holes on the front for another plate at the entrance and leave some 50 mm at the bottom, I highly doubt I will want to put a branch that thick in, the blades start cutting at 30.
Thank you for your input.

File: Screenshot 2025-07-03 004552.png (106 KB, 936x644)

106 KB PNG

>>2928509
One more thing
I will tomorrow cut the 4 plates, its 16mm thick, i need to plane it down to 12.5, or even more since the heat treating will bend them, 12 is final, I can do it on the old precision grinder after heat treating.
Before that, I can cut the plates, shape them on the planer, maybe grind them on the sides, the length is important later on, use the press drill and files to make the pockets for the bolts and all i have left before heat treating is the angle, which i can't do myself, I will need the CNC guy, I wouldnt like to make him do more than 2 hours, half an hour a blade, we exchange services and rarely dabble in money.
From my days as a button pusher, I remember that ball mills are rarely used, but for this they would be perfect.
If this metal is tough on tooling, would it make more sense to save time and the tooling, for the mill to cut on X axis while stepping both to Y- and Z-, or immediately go Y-Z- and step by X?
I can make a model, I think I can program it too, to save all the preparation and stuff.
And the cnc guy is a psychopath, he will ramp it up each pass if the program is good.
He works on a HURCO machine.

>>2928528
You can make a knife edge on a belt grinder, knife makers do it all the time with hand forged knives out of rail road spikes or car springs

>>2928564
How long does it take? Lets say his knife is 8 inches wide, angle at 30 degrees.
I can do that with a single half inch ball mill, on 2 such knives in the same vice
He wants it on D3, so i choose 2 flute, 4500 rpm, down up down left up down left by a thou on climb, quadruple on conventional, max feed to see what happens, im talking G0
Takes 15 minutes tops, 6 minutes setup if I am in the mood.

>>2928528
You cant make shit, youre using solidcam and you have no idea where to pit the coordinate center or how.
Stick to autocad>>2928509
And dont forget, you have M16 screws and a plate under them, so even your vector drawing is incomplete.

>>2928528
look at this fucking button pusher trying shit
for himself nonetheless
dont give up no matter what, you have a task of your own

Why arent there any black people in CNC buisness in USA at least?

>>2929259
I've seen 2 black guys in my 10 years, including giving interviews.
One was a pissy baby that allegedly wanted to be a machinist, but cried about every little paper cut and minor burn (he was deburring some aluminum with a countersink on a slow drill press and a chip hit his hand, we took actual injuries seriously.)
The other dude was okay at first, but eventually had huge issues with authority and just didn't feel like doing the work he was given, and refused to take responsibility when he fucked things up. Towards the end, there was a job he totally screwed three times in a row just by not caring, and thought scrapping a dozen $400 plates wasn't a big deal. He also tried to get unemployment after leaving voluntarily, and threatened to sue for racial discrimination.

>>2929283
I hate them so much

What is the biggest size indexable face mill you can reliably use on a bridgeport style mill (r8 taper)?
Are there any good cheap chinkshit endmills/face mills on ali? Ive had pretty good performance out of the Deskar stuff on the lathe I bought a while back

>>2929718
>biggest
why?
2.5"/60mm any bigger will just hyper display any slop in the mill and mis tram on the head

>>2929721
>why
I don't want to buy one too big

I have a lot of old HSS endmills but most of them are double sided and I don't have collet's for anything bigger than I think 3/4"
Im not even sure I could fit a 3/4" double sided endmill in a r8 collet

File: 1479920529297.jpg (218 KB, 1280x1084)

218 KB JPG

>started learning G code from community college
>its fucking easy
>people whine about how hard it is
why doesn't this field pay more

>>2929904
>he thinks knowing what the codes mean is the hard part
Machining is like any skilled trade. No individual part of it is "hard", the hard part comes from the sheer amount of random technical knowledge and experience it requires to actually be good at it and be able to to tell what's causing an issue and fix it. It's basically that meme story of charging $1000 to smack a machine with a hammer and it being $10 to smack it and $990 for knowing where and how to smack it.

>>2929904
g code is the fucking easy part of using a cnc machine
the only difficult part of coding is the non standards shit like needing to use macros or other not well documented functions

>>2929718
Not a facemill, but you can fit a pretty big fly cutter on one.

https://youtu.be/pWy76xDfTQE?si=WN9zcbzty-U8mEes&t=1354

>>2929904
it is the problem solvers that take the cash prize and set themselves up for a paycheck much larger than you can ever college your way up to
or me
Learn fixturing (i am not english speaker so i cant even translate it)
learn the grip of a complex object shape so you cant miss when you make your petty ass childish g code
its how you strangle something soft that deforms as you strangle harder in order not to move that gives recognition, not faggot nigger ass aids g code (its solid cam click gook skill that matters if you want to wet your frog foot into, not the actual work)
imagine an amputated dick off of an orthodox jew from brooklyn, one that raped countless children and got away with it but a satellite dish fell off a building and YOU are tasked to map the severde dick into g code with dull endmills out of teflon
this is what the OG's have to go trough each day, because CNC wasnt taken seriously until 2007
and what the fuck is wong with that chimp?
why does it look like that?

File: mms-0921-vfms-millturn.png (793 KB, 720x481)

793 KB PNG

Anybody have any experience running DMG Mori machines they'd care to share? or maybe older Mori Seikis?

lmao i’m buying a small table top cnc and i’m gonna have AI do all the legwork from designing to writing all the code for renders and tool paths. See you boomers in the future

File: 16843431213.png (379 KB, 600x405)

379 KB PNG

>>2932022

>>2932031
it’s not like it’s hard

>>2932042
Yes yes, the dice you made in highschool that were .02" out of square were very pretty anon.

>>2932045
cope harder boomer

>>2932022
Are you Sieg or do we have two retards in this thread?

>>2932122
why sperg out about this?

>>2931483
i used a lathe for a while, didnt like it, too closed if i recall correctly. but we were doing research so...

>>2932122
>two

>>2932122
Chat got does decent gcode

But cloudNC is even better

Keep talking shit because a fanuc robot can do setups and cloud nc can program guess where that leaves you?

>>2932391
>Chat got does decent gcode
>But cloudNC is even better
>drinking the kool-aid this hard
Every actual review I've seen of CloudNC is that anything more complicated than a plate with some thru holes requires you to redo half the program, and modify most of the parameters it spits out.

File: 9bw2e3.jpg (110 KB, 500x626)

110 KB JPG

>>2932408
>doesnt know the namefag
summer(1/2)chan is lame and gay
inb4 seig askplanes how he fingercams 5 axis pallet pool hmcs and siemensnxcam is trash because it wont post for antique fadals

>>2932419
I know Sieg, that post was more for other anons because CloudNC has been getting shilled so hard.

>>2932131
wdym too closed? what kind of research?

>>2932419
No post processor for fadal machines? The fuck are these guys even doing?!

Next you’re going to tell me it it won’t work on YASNAC ?


What kind of floppy disks do I need for Siemens?

Why aren’t I seeing any double angle collet holders for that HSK63 platform?

>>2932475
its been more than 10 years... if i am not mixing machines, bc we had from many companies, you cannot mix third party hardware or mod many things with it
basically we researched how do do shit cheaper, like trying to use alumina brush in a powered tool in the lathe instead of moving the part to a cylindrical grinder.
Or trying to learn how to machine newer materials to be used by the companies.
Trying new tools for the tool manufacturer, that kind of stuff
There were people trying new techniques of manufacturing like laser sintering and shit
fun place

File: PXL_20250712_213319342.MP.jpg (2.38 MB, 3060x2304)

2.38 MB JPG

Any good cheap r8 collets? I was thinking about getting a Lyndex-Nikken one for 7/8" because I have read the cheaper ones are prone to breaking but im going to need a few metric ones too and would rather not pay $50 per collet

>>2933738
Are you making a new anvil/wheel for an arbor press? I fucking need one but replacements cost more than what I paid for the press.

File: PXL_20250713_001741990.jpg (2.59 MB, 4080x3072)

2.59 MB JPG

>>2933755
Yup still need to cut out some bigger slots

File: PXL_20250712_180826963.jpg (2.78 MB, 3072x4080)

2.78 MB JPG

>>2933962
cleaning up torch cut

>>2933963
Are you just pinching the plate against the face of the jaws with the tailstock?

>>2933974
Yes it works just put a center in it go slow and take light cuts

>>2933974
>>2934011
see this is the kind of tricks that i love to learn about
i miss having an old timer in our workshop

>>2934011
>light cuts
>torch/flame cut edge
two things that should never go together

>>2934011
>>2934039
I'm not normally one to be Safety Sally over every little thing, but that's sincerely very dangerous anon, especially for something like an out of round/interrupted flame cut. It would be more setup, but a better way to do this would be to have another plate with some good surface area to stick in the chuck with some 1/4-5/16 threaded holes and then drill and countersink your actual part.

For years I thought to anodize aluminum you use electrical currents to control the end color result. Turns out that's titanium, and for aluminum you just soak it in a pot of dye for a while. What a gyp.

File: Expelling Lobe.jpg (25 KB, 346x378)

25 KB JPG

>>2928152
yeah mystery lifted, it turned out that all what was missing on the taper was pic rel, the collet chuck had a short jacobs taper and the main taper shaft was regular morse2 size, my milling operation in the drill press worked out well

>>2934607
Yeah that piece is mainly for lathe tailstocks, there's a rod inside that pushes on that to break the taper lock when you back off the stock all the way.

File: WACO-Gantry.jpg (2.97 MB, 2835x1890)

2.97 MB JPG

>>2922997
How do you get into the world of working with big shit like pic rel?

Anons, how do i read mechanical draft documents? Is it hard?
It looks like witchcraft to me.

>>2935965
I meant technical drawing, sorry.
That's the correct term right ?

dis stuff complicated, i wish i had a higher IQ

>>2935965
would there be a textbook for this which i could try and hack through

>>2935965
>>2935969
>>2935968
>>2935967
I assume your the same fag...
There are youtube vids... Really easy.
There are textbooks idk what your native language is but there are always some (prob english ig).
Id recomend to pick up a "standard compendium" (Normenauszug in german), a book with the most importand and widely used standards, its more for creating the drawing but it has all the info you need.

There are also 2 general standards in use
The old one ISO 2768
And the newer harder one ISO 8015

Officialy the old one isnt used anymore but the industry will tell you smt else

If there is a specific case you need to know you can also post a pic here. But pls 1 post not 4

Yes technical drawing is correct.
I also wish you had a higher IQ...

>>2936314
what was the standard for warsaw pact countries?

>tfw after 6 years an operator i did well enough on the programmer test to land a probationary position in tooling

I don't want to go back. After being surrounded with real machinists I know where I need to be. I don't know if its just the culture of the company but production is like a hellscape of drama and bitching and whining and I don't think I'll be able to deal with it after seeing the promised land.
That and programming, setting up, and making a part start to finish is an amazing fucking feeling.

File: Jobbed.jpg (441 KB, 2608x1000)

441 KB JPG

>>2927027
Thanks for the advice guys. I did it and it works but I will have them done in a shop if I get production runs happening.
I did grind down the taps a bit as suggested >>2927033
The allen key wouldn’t fit (1.27mm wrench) so I had to grind that too.

>>2937768
btw what loctite to use for this--purple?

>>2928528
HSM

>>2936421
Use yandex and translate what you want in Belarusian language. I think they still use it.

File: aha.gif (997 KB, 480x270)

997 KB GIF

>>2923146
>he fell for the pussy meme

File: seigsfits.jpg (1.3 MB, 2781x2048)

1.3 MB JPG

>seig attempts to cut a bearing fit

>>2928389
Tax, and responsibility, evaders like you will be deported to El Salvador with the illegals once America is finally made great again.

>>2939756
Yup

No /emg/ so I'll ask you fucks. I have a 12x36 lathe I'm looking to sell and I don't want to do craigslist/marketplace/whatever because I don't want a whole bunch of random assholes coming to my house and scoping out my tools and bikes and shit. I figured I would just put it on ebay and accept the ridiculous sale fee in exchange for not dealing with 100 retards a day offering to trade for their PS5 or beat to shit dodge dart or whatever, and also having precisely one person come to my house to pick it up. Is selling something this big inexpensive on eBay safe for the seller? I know at least in the past their and PayPal side with the buyer 99% of the time and can completely fuck over sellers for literally no reason and obviously I don't want that to happen for a several thousand dollar sale.

>>2940800
Okay you verified the path. That's some slow shit. Max traverse that shit.

>>2941204
Sir this is the machine operator thread, have you tried pushing the green cycle start button?

If it didn’t solve all your problems then go get an adult and sweet the shop with a lot cigerette in your mouth until they fix the problems while you pause to argue with one of your baby mommas on text

>>2927489
Best case of 3d printing right there that’s like 2 cents

File: 1736023018132139.png (708 KB, 1024x904)

708 KB PNG

>>2941204
>reeeee da wurld es beg sceery!
zoomiezooms are fucking hopeless

>>2941214
I've pushed the green button and it only spins the chuck, it doesnt actually start a cycle. I've tried turning the physical pendants attached to each axis but it scares me which is why I'm getting rid of it

>>2941230
Your agedar is about as accurate as your gaydar

>>2941215
Smallest nozzle size you can get is 0.1mm which will have clear layer lines when inspected closely. For what looks to be a high end product they’d have to be hand finished, obviously not particularly difficult.

>>2942566
Unless you raise the nozzle size by a lot, "intentionaly" creating the layer lines for designe reasons.
Then it becomes modern art and is accepted again

You can also heat and bend a lot of plastics to get those shapes, then glue the 2 parts with a strong adhesieve

>>2942566
Do you notice the flashing or ejector marks on your $1 for pack of 12 coat hangers when you use them?

Do you notice the machining marks on your $20 harbor freight vise?

Will your mom or dad?

>>2944679
Thread was right saying you were retarded
You too >>2944678

>>2922997
I operate a pretty unique machine, it's a blistering machine at a pharmaceutical company, mostly sodium butyrate stuff and some probiotics, pretty cool ngl.

File: 1720394548140764.jpg (182 KB, 708x766)

182 KB JPG

Is there a good book or place to to get prints for manual lathe and mill practice? I need ideas of stuff to make so I can actually practice and get better

File: IMG20250926201625.jpg (834 KB, 3468x4624)

834 KB JPG

This poor machine now gets to live in my half dirt floor barn. Couldn't turn it down for $100.
Everything works, runs great on single phase too.
The only thing that doesn't work is my total lack of CNC knowledge.

>>2922997
How do I learn to become a maintenance brained person?

>>2947255
those can be operated manually, like with a remote thingy. of course is the motors making the movements, but still, you can do fine adjustments that way
you lose the feeling of it, how much is opposing to the movement, but usually the noise is also a good indicator of how the cut is doing

>>2923503
>>2923654
My local one is actually decent for what it does have, nice woodworking setup along with welding/fab and blacksmithing, but they have no machine tools at all. The only way to do machining here outside of a job or having your own machine shop is the community college, which I actually just started at.

>>2947366
It actually has cranks on all the axis and can be operated completely manually.
