I was randomly talking to chatgpt about how I have been feeling burdened by having to make my own BLDC motor controllers for my robot lately and it randomly mentioned integrated half-bridge power modules as something I could use to cut down on my labor load in making these motor controllers. This immediately stood out to me as something I'd never heard of and something intriguing. I have so far been working on my lowside switch and highside switch which together form a half bridge. Many solder connections have been involved and alot of discrete components are involved. The concept of an integrated half bridge on a single chip - meaning two big power mosfets and all the drive circuitry for those power mosfets all condensed into a single chip would be a huge reduction in size and component count as well. So I researched if any are able to do 8v 30a for my 2430 BLDC motor's needs. Turns out there are some out there. At first I was looking at Texas Instruments CSD95377Q4M Half‑Bridge Driver (30A) which can do 30a continuous so perfect for me. However, I didn't want to lock myself into a single vendor chip that may one day be discontinued. I prefer something ubiquitous with many competitors making it that can be purchased from aliexpress. Something commodity level. This way I future proof it and don't have to worry about any one manufacturer discontinuing parts I'm using and prices soaring because of that or simply the part becoming unavailable. So after a bit further digging I found CSD95481RWJ QFN chipset on aliexpress sold by several vendors and one was under $1 each. So it is equivalent to two power mosfets plus all drive circuitry for each power mosfet all for under $1.

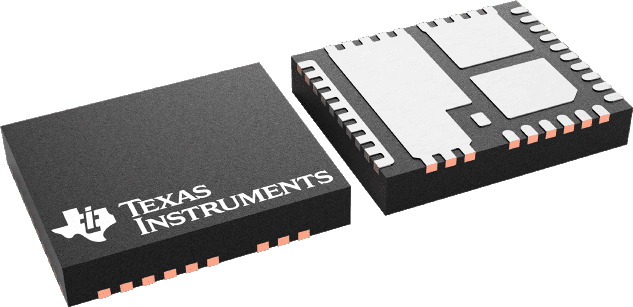

This one also has 60a continuous rating. It is only 5mm x 6mm in size which to me is insane. This is so much smaller than the setup I've been working on yet just as powerful. They are usually used for tiny buck converters and used directly on videocard PCBs and in servers and in automotive PCBs and much more. In any case, using 3 of these half bridge chips you can drive a BLDC motor. The consolidation of so many parts into such a tiny package is truly blowing my mind. So I ordered 60 of these chips - enough to drive 20 BLDC motors. I am leaning toward using these for all my motor controllers if working with them is easier than working with discrete components like I have been. They are cheaper to work with I think - I'd have to run the numbers on that though. They even have built in temp sensing we can read in which is a bonus. Their built in current sensing will not work for BLDC motors so I'll still need my shunt resistor current sensing circuit setup external to it but that's ok. All in all these appear to be a game changer in terms of reducing part count so less potential points of failure and also reducing board footprint so miniaturizing my electronics even more which is very good for us. I'm still needing to work out now how I want to hook these up in terms of PCB making for it and any discrete external components needed to support it. It is also top cooled which is interesting. I'm envisioning using silicone thermal adhesive to glue on a copper pad that has my braided solder wick wires already soldered to it. These will carry the heat away to my water cooled pipe system.
I'm kind of amazed that nobody really seems to use these for BLDC motor controllers. They seem perfect for it. Maybe I'll start a trend. Assuming I don't find out the hard way why they are never used for this application!note: the full product title: "(5pcs)100% original New CSD95481RWJ 95481RWJ CSD59950RWJ 59950RWJ QFN Chipset"note: for my previous BLDC motor controller design I was needing to use 6 digital IO pins to drive a single BLDC motor controller's 6 power mosfets by way of their control circuitry. But for a BLDC motor controller design using 3 CSD95481RWJ H-bridge chips, I will only need to use 3 digital IO pins on the microcontroller. These CSD95481RWJ H-bridge chips use a pwm pin that is a tri-state pin - you can have high, low, and floating as the signal you send to it from your microcontroller. Digital output high and low are the usual digital output modes but the floating mode you do in your code by configuring the pin to be a digital input pin which makes it a floating pin. These 3 states fed into the chip makes it either give you V+ as its output or V- as its output or just off/floating as its output. This corresponds perfectly to the normal h-bridge 3 states we'd be using with our discrete components previous microcontroller design. So this savings in total digital I/O pin usage on the microcontroller means you can drive more motors per microcontroller in theory which is pretty cool.
11 years in and Gary just now discovers what anybody else working on their first motor project would have discovered day one
Well I deep dove into the CSD95481RWJ IC route. I estimate it will cut the work in half roughly for every motor controller made and cut the size taken up by about 60% compared to my previous discrete components approach.Now I will note that I did come across the BTN8982TA which is rated to 40v and can handle 30a continuous 50a peak short burst. But it's TO-263 form factor so about 4 times as big as the CSD95481RWJ. It also costs about $2 each so double the price. It's not a bad option though all things considered but just not quite as good as the CSD95481RWJ for the reasons mentioned. I note it here so I don't forget about it. It can be a great option if the CSD95481RWJ doesn't work out in the end or something.Anyways, for the thermal concern - which is my biggest concern, I plan to top cool the CSD95481RWJ using a .2mm plate thermal siliconed into place on top of the CSD95481RWJ and then solder a bundle of 4 braided solder wick wires to that and run that off to the water cooled copper pipe about 4" away. The top cooling only handles about 30% of the cooling according to chatgpt. The most important 70% is from the bottom cooling through its pads on its bottom. For this I plan to use double stacked .2mm thick copper plate soldered to its IC pads. So that's .4mm thick. Also it will be around 2mm wide where it attaches to the pads. It will then route out from under the chip and swing upward into free space and head over to the 8v+ and 8v- buses coming from the 8v motor battery banks in the robot's lower torso. These thick copper traces I will fork off of with braided solder wick wire right near the CSD95481RWJ IC chip for thermal conductivity reasons. This braided solder wick wire will be live so I will wrap it in fiberglass window screen so nothing can touch it - preventing short circuits. It will then be electrically isolated from where it connects to the water cooled copper pipe with thermal conductive tape.

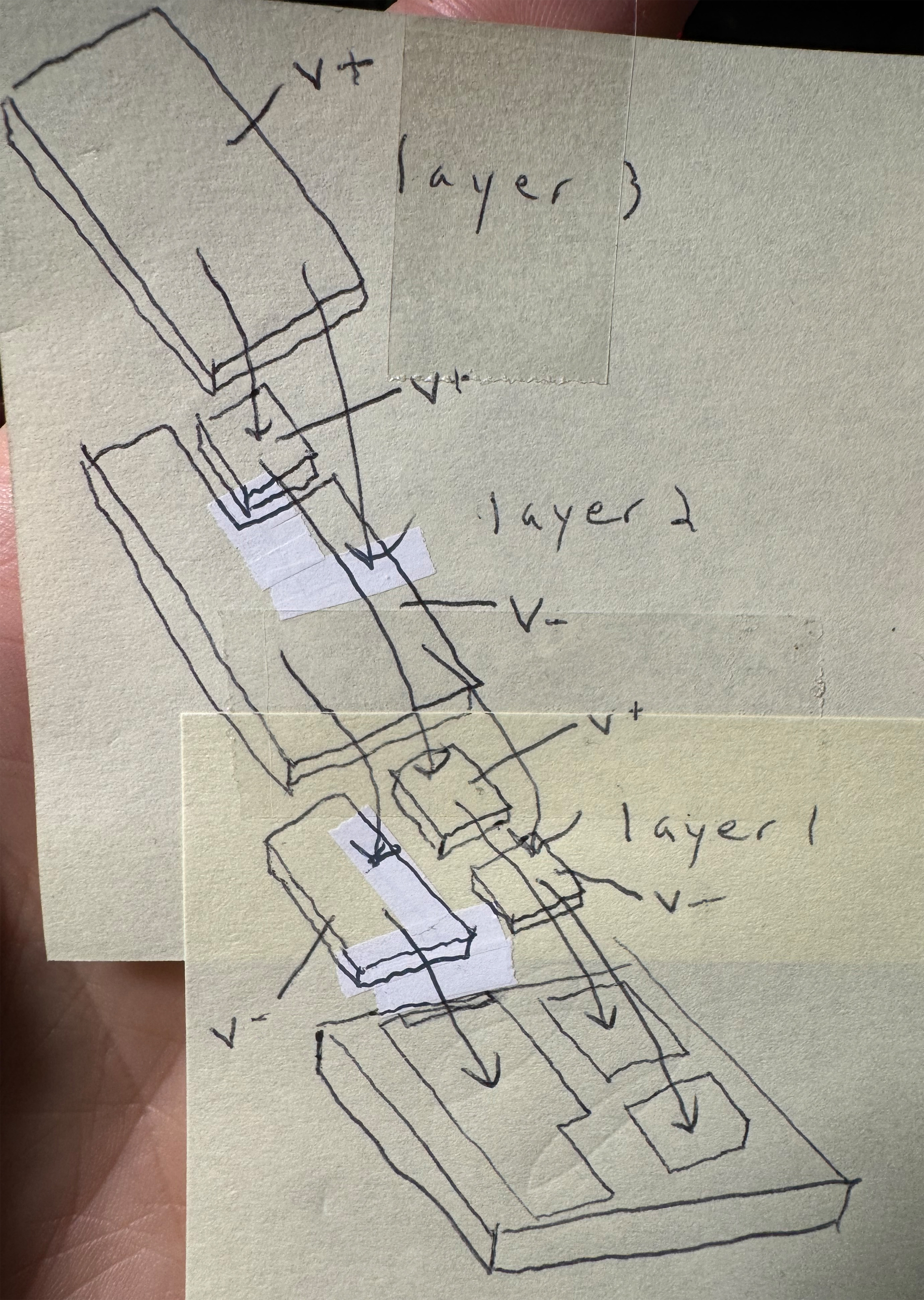

The braided solder wick wire attaching to these thick copper traces will be a bundle of 4 per trace. The various decoupling capacitors this chip calls for I will connect to its output pins using flat flex PCB DIY hand made. I'll be attaching this PCB first and attaching the thick copper traces to the underside pads second as a separate layer that goes underneath the flat flex PCB layer. The flat flex PCB layer will mostly stay around the outsides of the chip and have its center cut out and removed - the part of it that would get in the way of the underside main pads under the chip. So the flat flex PCB will just hug the outsides of the IC mainly in a U shape around the chip leaving the center of the bottom of the chip free to solder to with my thick copper traces.Note: the thick copper traces will be cut out with scissors from a roll of .2mm copper sheeting I bought on amazon which I mentioned a few posts back. Double stacking it wil double its thickness and increase its conductivity both electrically and thermally.

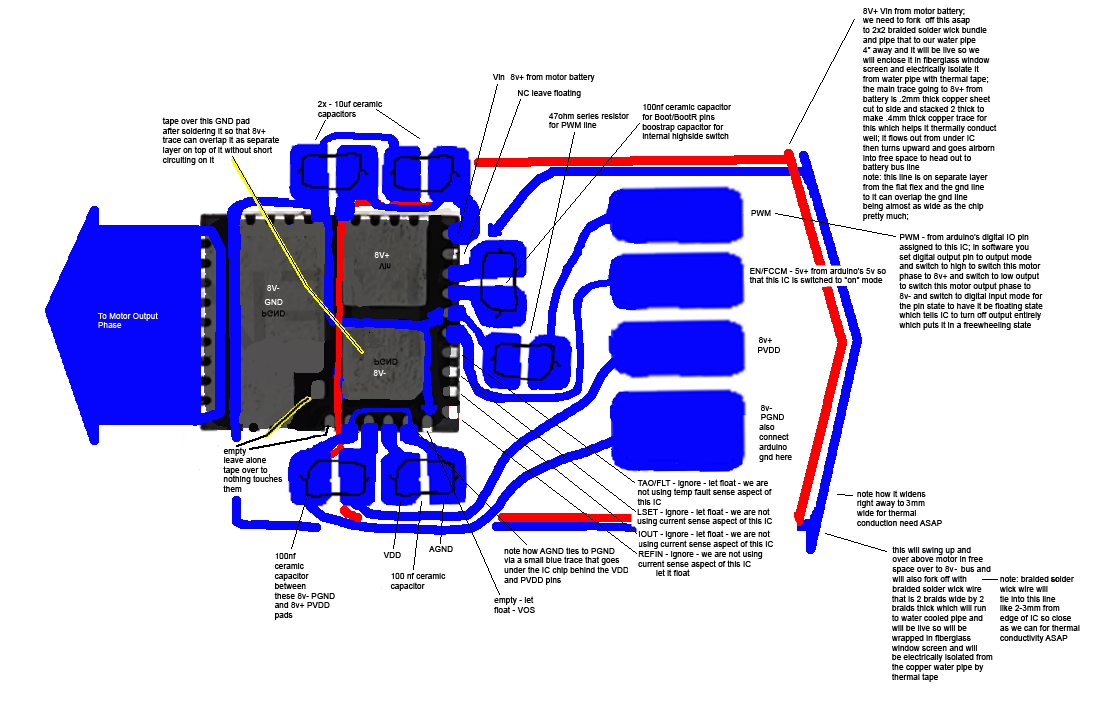

Note: in a usual setup with this CSD95481RWJ IC, a multilayer board with a array of vias is used to bring the heat downward off the chip and into another lower layer within the multilayer board where it can then radiate on said layer outward in every direction. In my approach, I use thicker traces than the layers of a multilayer PCB has so I have alot more local copper in play. Then instead of the heat transferring down and then outward in all directions on very thin copper, mine travels down then in a single direction outward away from the IC on that trace. The trace will need to be as wide as possible as soon as possible. I expect to get it from 2mm width - the width of the pad - to 5mm width within a few mm. This rapid transition to a wider width combined with the use of much thicker copper compared to a multilayer PCB's copper thickness of its layers means I should be able to exceed the thermal performance of a multilayer board using my approach. Especially since I also plan to quickly fork off the main traces with bundles of 4 solder wick wire braids that will carry the heat off to a water cooled pipe 4" away.Note: in my attached schematic I only show a single CSD95481RWJ IC because they are all wired up the exact same way. It's just doing it 3 times for each of the 3 phase wires of the BLDC motor.Note: I will use a single electrolytic capacitor per motor controller also not pictured in the schematic.
>>2969431You are a sick bastard and need to S T O P
>>2971501what is sick about building a household assistant robot?
BLDC Driver ICs exist you know. Go on the Texas Instruments website and look for them, there are many options available. In a project like yours, you should probably use ready-made solutions whenever possible so there's less stuff you have to worry about.
>>2971629Good to know. The highest amp rating one I could find though was 8a and my smallest motors require 30a continuous rating. So this is not a product I can use for my robot.
>>2969431oh look another sexbot thread.
>>2971648assuming you and this >>2971501 are both going the sexbot angle, that is not the intention of this thread/project. I've been very clear on this anti-sexbot stance from the beginning. I am opposed to sexbots period. I am not building one. Not sure why people jump to that conclusion, nothing I stated about the robot says anything lending to that assumption.Also consider this: if you create advanced AI that goes around telling married men to come lay with it, then you are creating a whorebot essentially that is morally deficient and at the very least simulating adultery. Adulteressbot. No, my bots will be morally upright and Bible thumper bots.
>>2971716Its not adultery cause its not alive…
>>2971736I agree its not literal adultery which is why I said it is simulating adultery. Jesus said if you even look at a woman to lust you have already committed adultery with her in your heart. So if looking the wrong way God considers a crime, then simulating adultery in other ways than mere heart imaginations surely is in crime territory too wouldn't it seem?
I urge you to tread carefully, for what you are doing is not without profound ethical and spiritual implications. Remember the words of Ecclesiastes 7:13-14: "Consider the work of God: for who can make that straight, which he hath made crooked?" It is essential to reflect on the divine order and the sanctity of life as you work on this project. If you are a man of faith is it really worth an eternity in hell to create a sexbot?!
>>2971401In next 11 years he will discover he can basically buy all the parts and in year 2525 he will discover jlcpcb
>>2971716the first thing you want to build is an arm its obvious you want a robohandjob
>>2971716Hedonismbot disapproves
OK, so when I was thinking of using both my discrete components motor controller design parts I already made and then also separately implementing the integrated half bridge IC design going forward, it hit me that the 8v- and arduino gnd tie together on the half bridge IC by necessity but this ruined their intended isolation I needed for my discrete components motor controller design particularly for the lowside switching portion of that schematic. On the lowside switching portion, the little mosfet has 12v- and arduino gnd tied to its source pin. If on the integrated half bridge I also have to tie arduino gnd and 8v-, then that means 12v- and 8v- and arduino gnd are all tied together always.That completely ruined the necessary isolation between arduino gnd/12v- and 8v- that I had intended to be in place for my lowside switch setup. So that was bug #1 freshly introduced that I would then need to solve for in my discrete components motor controller design. When studying this out on the discrete components motor controller design, another error hit me: when any lowside switch turned on in the design, the 12v- dedicated power supply gnd and the 8v- motor supply gnd become connected as long as that lowside switch is on. Since every lowside switch had always access to 8v gnd on its source pin, then even one moment of 12v gnd and 8v gnd attachment anywhere on the robot would cause every lowside switch in the entire robot to immediately turn on at the same time.
So if any turned on, then all turned on. This was a huge oversight. For some reason since I only designed and focused on one half bridge conceptually at a time, I did not consider the effects one half bridge has on its neighboring half bridges. This just never occurred to me. I guess conceptually I envisioned that every half bridge had its own personal 12v ground from its own personal 12v supply that was electrically isolated from the entire rest of the robot. But of course that's not practical even if it is technically possible. So in testing, things did work, but would have failed as soon as I tried to test more than one half bridge at a time. So I caught this bug before testing revealed it.I discussed this horrible situation with chatgpt and it taught me that in a complex system like a robot, grounds of all your different supply rail voltages cannot be relied on to be isolated from one another like I was treating it. Even if at times they were momentarily, one switch, one change and suddenly they are not and it all becomes a common system ground again. So if I can't safely assume a ground for any given voltage is safely disconnected from the grounds of other voltages, I should not rely on switching on and off access to any particular ground to any of my lowside switches. Instead, I should be shorting the gate driver of the lowside switches to ground to shut them off rather than messing with their source pin's ground connections like I was before. I am to leave the source pin's ground connection as 12v- and its gate connection as 12v+ at all times except when I want to shut it off - at which point I short the gate pin to gnd using my logic level mosfet to do so.

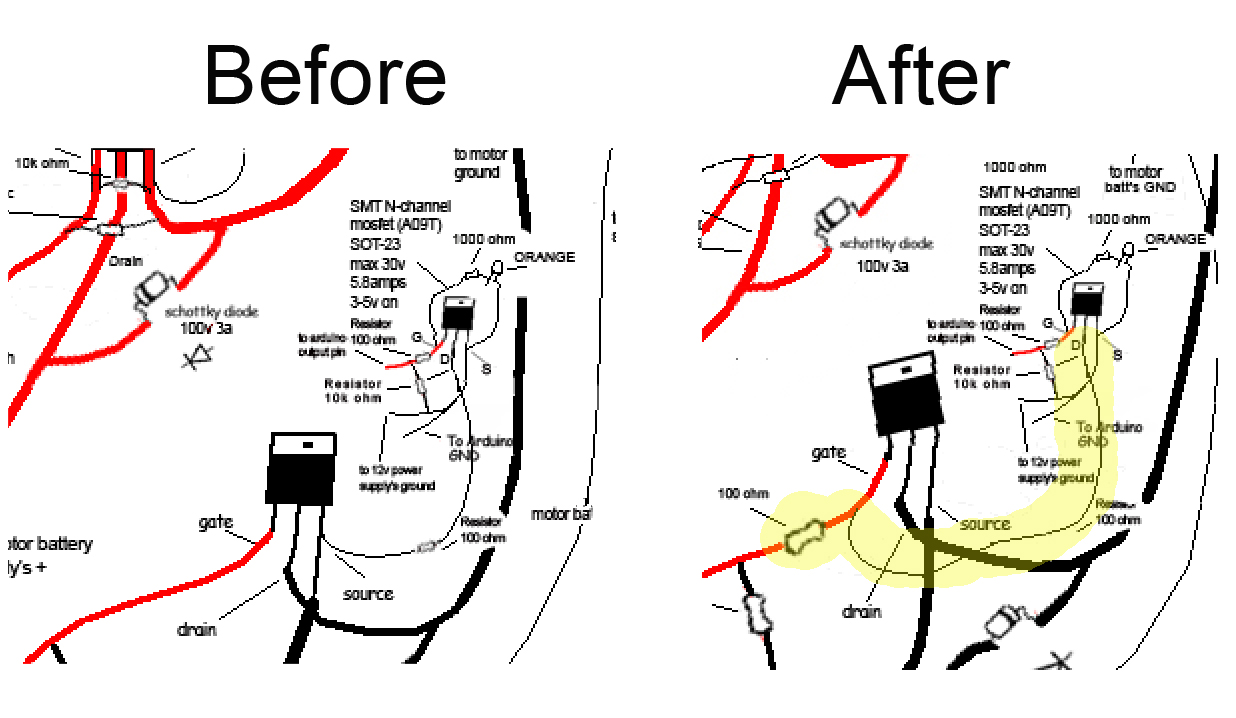

The fix was very straightforward and minor: I just had to add a 100ohm resistor in series with the gate pin of my big power mosfet lowside switch and then reroute my little mosfet a09t drain pin to the big lowside mosfet's gate pin instead of its source pin. The connection to its gate pin must be downstream of that 100 ohm series resistor so that the path from the big mosfet's gate pin has almost zero resistance when traveling through the little mosfet's drain line and over to its source line into ground. This way when you turn on the little mosfet, the big mosfet's internal capacitor quickly empties out, flushing into the path to ground created by the little mosfet and that discharges the big mosfet, shutting it off. When you want it back on, you shut the little mosfet off, which allows the big mosfet's internal capacitor to charge up again, which turns the big mosfet back on. So the setup now acts like a normally on relay.Note: the resistor on the drain line of the little mosfet that we used to have when it fed into the source line previously is now removed. We want no resistance on there because that would impede the little mosfet's ability to discharge the big mosfet's internal capacitor in a timely manner. We want to be able to not only discharge that capacitor quickly but also direct all incoming current from the 12v+ line that makes it past the 100ohm resistor heading for that big mosfet's gate into our ground path. This rapid redirect flushes so much of that already limited current that hardly any can make it inside the gate of the big mosfet which causes the gate of the big mosfet's voltage to approach near zero volts. So it's called a "pull down" path to ground.Attached is a photo of my schematic before and after the fix.

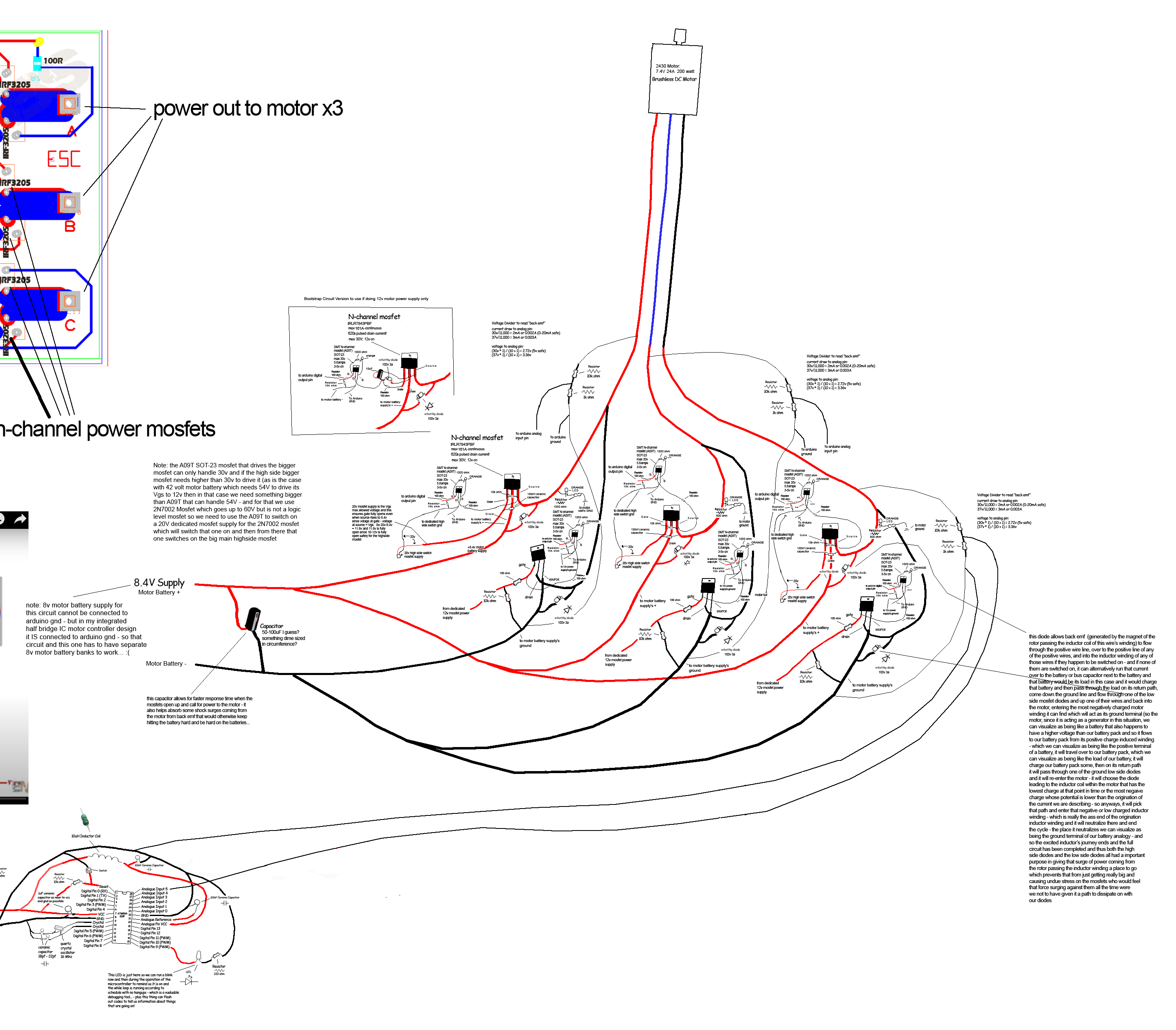

Attached is a photo of full updated schematic with the changes in place.That all having been said, this discrete components original bldc motor controller design, now fixed, is worth keeping archived, but is now basically abandoned now that I have access to the time, money, and space saving shortcut of my integrated half bridge IC based design. It's kind of sad to abandon something I spent so much time on, but who knows, I may still use it if I ever come across a motor that I can't find a cheap half bridge integrated IC for in the future. It's a great schematic to have at the ready for that scenario.

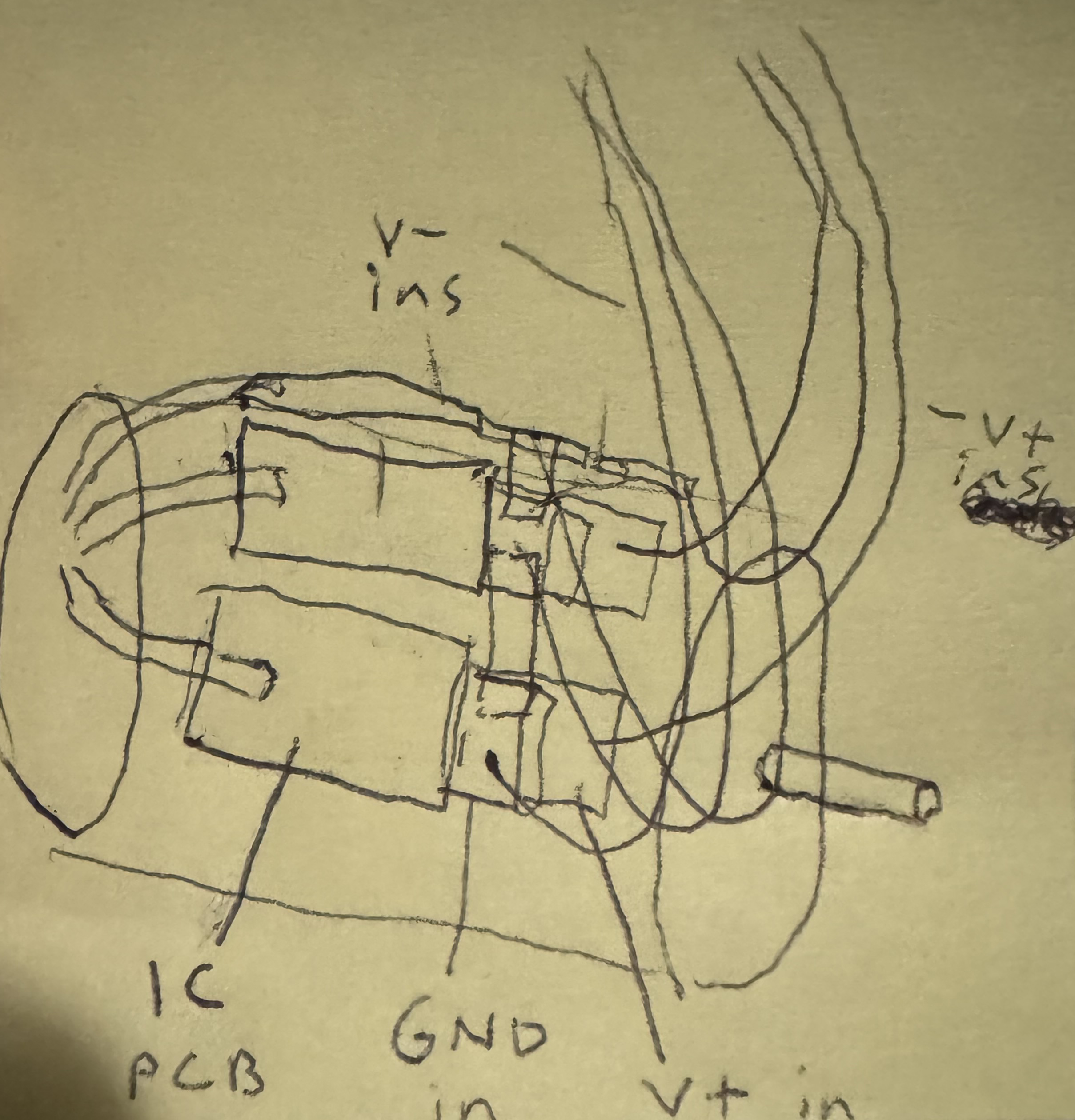

Ok so I was thinking now that each half bridge is just a tiny IC rather than a pair of hefty power mosfets, the space taken up overall by my entire bldc motor controller is going to be about 3cm x 1cm x 2mm which is insanely small for 30a continuous at 8v motor controller! This realization caused me to reconsider whether I even need to treat this as a single motor controller cluster that has to be sat like a horse saddle onto the side of my bldc motor - my original intention for my discrete components original design for my original bldc motor controller. What I realized instead is that things are now so small that I can simply build a half bridge for each phase as a inline element nested inside the cable run leading to each phase wire of the bldc motor. So instead of having a dedicated spot for each motor controller, I'm going to have just a slight bulge in the phase wire leading out from the bldc motor and that bulge will contain the half bridge that handles that phase wire. All nested inline. This is the easiest way to implement and most streamlined I think. It also means the whole motor controller will just be "floating" in midair, not actually mounted to any motor or anything at all. Just part of the wire harness nested right in there. This is a radical approach IMO. Only made reasonable by the fact we miniaturized the design by such an insane degree.So the previous version of the schematic was intended to be mounted to the side of the motor like a horse saddle and had an l shape so inputs would come up from bottom and outputs out to left side toward motor phase wires. These L shaped half bridge setups would be stacked next to eachother side by side. In the new variation everything is inline, inputs coming from right and outputs exit out left side to motor.Here's the updated inline variation of the schematic (no longer L shaped flow like before).
>>2971964>>2971965>>2971966>>2971967>>2972075You should get this working on a breadboard first.It might be difficult with quite a bit of trial and error to get the arduino giving the right outputs at the right times to drive your motor.Having to probe a bunch of components that are hanging in the middle of a cable sounds like a giant pain in the ass. Your probe clip will be dangling from component leads, putting strain on the solder joints or potentially shorting things together. If you use a probe without a hat or clip, the board will be pushed away from you and moved around when you go to measure stuff.Also, as your robot moves around these drivers might end up banging into each other and other electronics shit inside. You have a very high density of motors

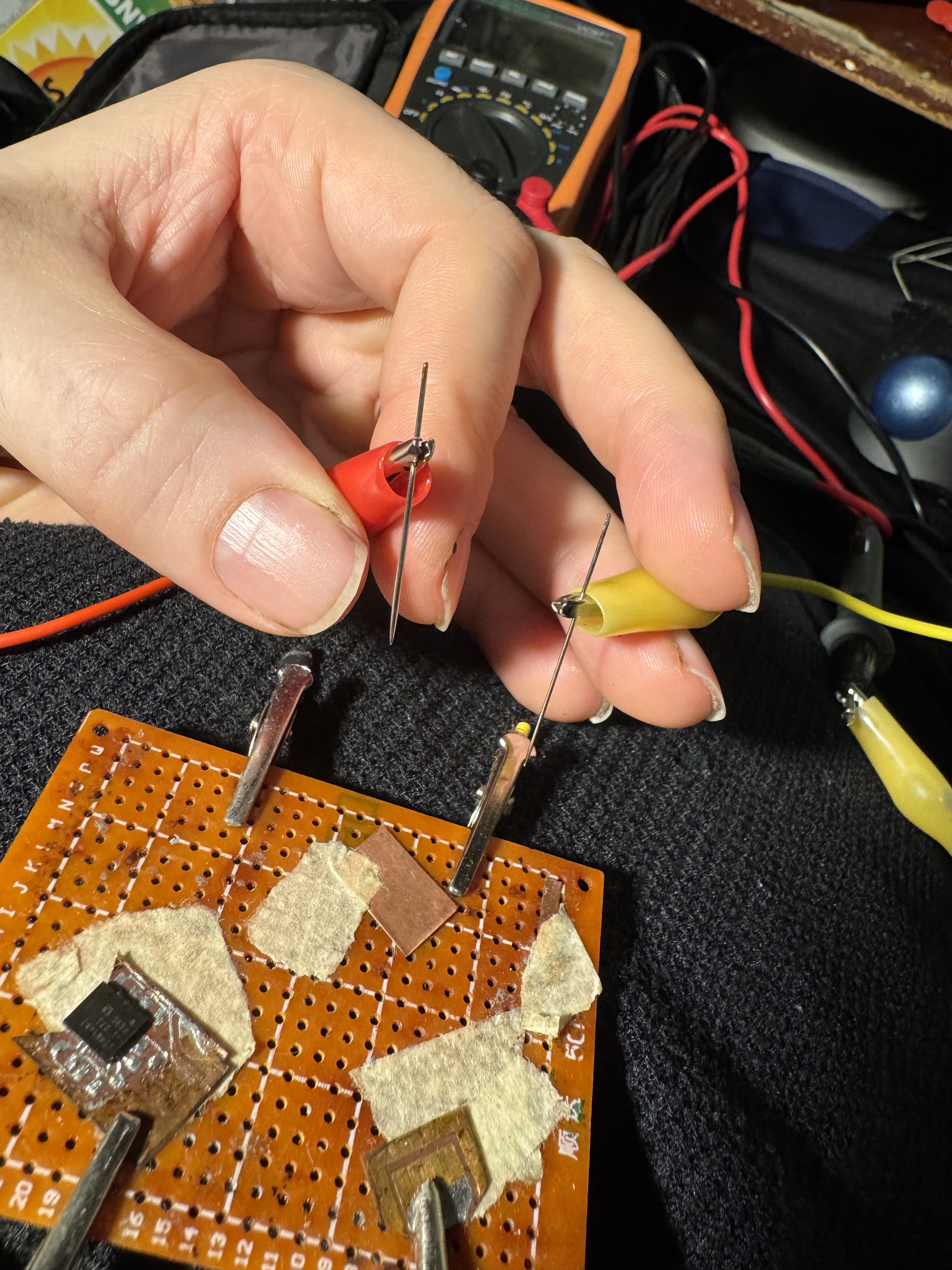

>>2972087>use breadboard firstthis ic is so tiny it can comfortably fit on my pinky fingernail. so i have to make a flex pcb to even interface with it. breadboarding works if you have breakout headers you can plug jumper wires into. It isn't a timesaver for this>difficult timingsnot really. there's just 3 phase you can walk through them at any speed. I'll just trial and error till it creates pseudo sine wave though.>probing in middle of cable a painI don't think so. I just pinch probe tip against it with fingers or w/e to hold in place for something like this. I don't use a probe clip.>drivers might be bangingwell sure but I don't think that should be a issue and should not happen that often the wire won't be that floppy it should just wave in the air like electrical lines overhead blowing in the wind. I also might wrap the whole thing in rubber to protect it. It will be pretty robust I think.
>>2972136>I just pinch probe tip against it with fingersThat is an excellent way to both pick up noise for the probe and to inject unwanted signals into your system
>>2972374no, noise or signals in system would not happen since the only multimeter probing we'd ever be doing is when system is off and we are trying to troubleshoot some issue or test it before going live.
>>2971967How come you ponder whenever breadboarding your project is a timesaver or not while wasting your time on drawing shit like this in ms paint

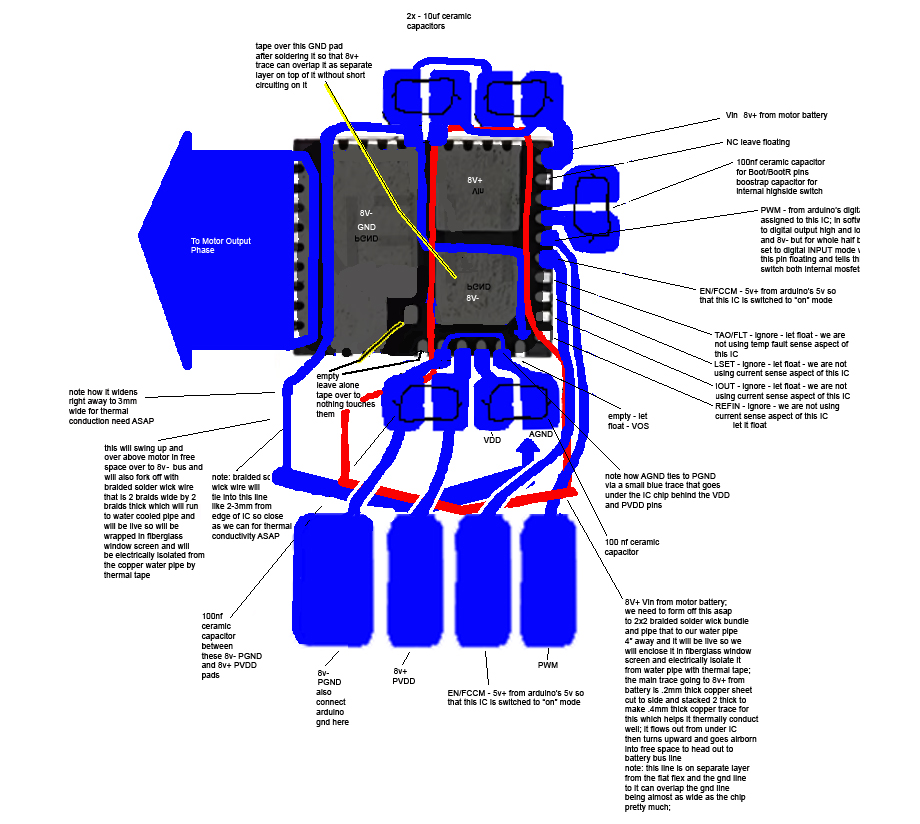

>>2972715I drew the schematic in photoshop with pencil tool and that same schematic I plan to print onto transfer paper and laminate onto copper and etch the copper board to make the circuit from that drawing then. So the drawing is not a waste of time it is literally the first step of a diy circuit for the motor controller. It's not a wasted step or an extra step or a skippable step. It's needed 100% so zero waste of time at all.
Ok so I realized I don't have to feed in 8v+ from an external wire when I can just pull it from a neighboring pin on the chip that has 8v+ already fed to it from one of the big 8v+ copper traces attached to one of the big 8v+ pads on the underside that connect directly to one of the side pins. That side pin can then be routed to any 8v+ requiring pins if I can find a path for this routing - which I did find. So that is one less external wire input needed - bringing total external input wires needed to 3 instead of 4 as far as the 30ga wires I need to attach. So now all I need for 30ga wire attachments are 5v+ from arduino, GND from arduino, and PWM from arduino. This saves work and simplifies the wiring so its a great improvement.Oh and I also did the same thing for the 8v- feed, pulling it from a local pad rather than a external wire feed for that.
>>2972920Also, I have separated out the PCB traces themselves and made them black instead of blue for printing them onto the PCB transfer paper and laminating this onto the blank Pyralux flex PCBs for etching them. I also mirrored it since it prints and laminates backwards onto the PCB.
>>2972922>Hand drawing instead of using the rounded rectangle toolRetard
>>2972922How is making a post on how you recolored your image from blue to black not a waste of time
>>2973218I mean, technically he flipped it too. That's 2 steps (assuming flip isn't an affront to God's divine plan or something).
sup, I'm the robotics PhD guy from a few threads ago, can you tldr me on the progress ? Last time I told you to test one joint, did you achieve that ? Also is your mental health better? I remember last time you seemed completely narcissistic and delusional about your work, did you reconsider some things?
>>2973334also as a cool little trick that could save you and the other retards over at /robo/ a fuckton of time. There's something called motion diffusers (you can find a well structured GitHub), you can map the results of the motion diffusion to whatever your upper body kinematic model is to have a robot able to move based on a text sequence. I've been able to test this in my lab on a simple humanoid and using this method you don't need any training or anything. I remember you were hostile to having deep NN and had delusions about being able to make the robot work with a rule based algo, you could use this type of high level rules / sentences as inputs to what I just said.
>>2973334>can you tldr me on the progressthere was none>did you achieve thatno>>2973337>There's something called motion diffusers (you can find a well structured GitHub)Larry will not waste his time on learning all that stuff, he's cutting corners by drawing his circuitry in ms paint, instead of using CAD, how could you possibly expect him to delve into github scripts
>>2972922What are the next steps you are planning on doing to get the motor up and running? Is there a lot of work left?
>>2973577A little bit more calibrating the test prints of the circuit and verifying its perfect then doing the whole diy pcb process then soldering on the tiny IC and its supporting caps/resistors etc then attaching all the wiring to that and testing it then repeat that 3 times to get all 3 half bridges and then I can test the motor and code the motor firmware.
>>2973607>and verifying its perfectWill it be verified as perfect if the edgess are jagged and cracked again? Or will you keep trying until you actually get a perfect trace?
>>2973679in my trace alignment I was having to do pixel level modifications and reprints to verify the pcb traces/pads perfectly match up to the pins on the chip. that part has to be perfect. imperfections in the toner transfer, mixing ratios of etchant, copper prep etc cause the trace imperfections you are referring to and that's process related and not at issue as long as everything has continuity and will naturally improve with iterations as I dial in the process with each attempt.
>>2973731>in my trace alignment I was having to do pixel level modifications and reprints to verify the pcb traces/pads perfectly match up to the pins on the chipHow can you do this and at the same time claim that you're saving time by not learning kicad
>>2973772it still is less time IMO but the gap is closing on this IC specifically because the margin for error got ridiculously low due to the 0.4mm pin spacing its insane. The other circuits were a clear major timesave but this is another level. However still a time saver nonetheless.
>>2973772Kicad is not neededhttps://www.tinkercad.com/blog/send-to-fusion-for-electronics
>>2972920>>2972075>>2971967As a certified (tm) (R) hater who just checked in after a long time to see how little progress has been made, this might be the most substantial progress report of yours i have seen.Proud of you Arty.
>>2973406And here I was, thinking this guy was not super smart for using a pulley system, forced to admit that was the least stupid design decision he made. Seriously, not taking 3 days to learn kicad and order your PCB online but doing it on MS fucking PAINT is just incredible, topkek. Godspeed Arty, just as a heads up we have 2 master and 1 undergraduate students that were able to design build and train 3 humanoid robots in the same amount of time it took you to (not) do a PCB design for BLDC motors. But beyond making fun of you, I really really recommend you to stop being retarded and test your components separately, buy a BLDC driver and test your arm joint (as I said last year) and realise how bad your design is. Don't wait to assemble everything and then realise that every single part of your design is dogshit. I want to start making threads about my papers to mog you but I was wondering how could I do that without doxing myself
>>2969431I'm not a hater or anything, but I have to warn you Arty. Last night I was visited by an angel in my sleep. He told me God is mocking you by giving you tasks you can't accomplish. He's making a fool out of you to make an example. He called your project "Adam 2 electric boogaloo", mockingly.
>>2973781Tinkercad's good for making schematics out of circuits on breadboards or with point-to-point connections, but its library of components is a bit limited (it doesn't even have thyristors or accelerometers, for instance), so I probably wouldn't use it for anything too complex.I guess it's fine for a first course on electronics taught at a community college, but probably not for high-complexity projects like what OP's trying to make.My personal choices for schematics are Microsoft Visio and LibreOffice Draw, mostly because they're much cheaper than AutoCAD or any other professional Autodesk product.KiCAD? It's good for PCBs that need to be made in large quantities, but it's not what I would use to make an electrical diagram of something like an HVAC system or an industrial control panel.Then again, for OP's purpose, which is to lay out the actual traces of a circuit board and specify the exact placement of each component, with footprint specified and all, an EDA program like KiCAD or EasyEDA is exactly the solution needed for his problem. He could even supplement it with the StepUp plugin for FreeCAD if he wanted to design PCBs with special mechanical characteristics (i.e. flex PCBs or PCBs with an irregular outline)Then again, every man is free to spend his spare time as he will.
>>2974157>>2973772to be honest one can learn kicad within one or two hours just enough to design something like the PCB presented here. Drawing PCBs in ms paint is the pinnacle of self-sabotage. There is no excuse
>>2975921you have to consider that this>>2971967is how OP draws PCB schematics
can someone explain what meds OP should be taking, but isn't?
>>2976193Cyanide
>>2973337Fascinating idea. I had this idea before of taking roleplay AI background text, like "*moves closer*", and having another program interpret that into actual commands. It's partially biomimicry, when you move your arms and hands, you don't think about each individual muscle, you just do it, and have a subconscious part of your brain do it>retards at /robo/But the doctor said I was "special"!

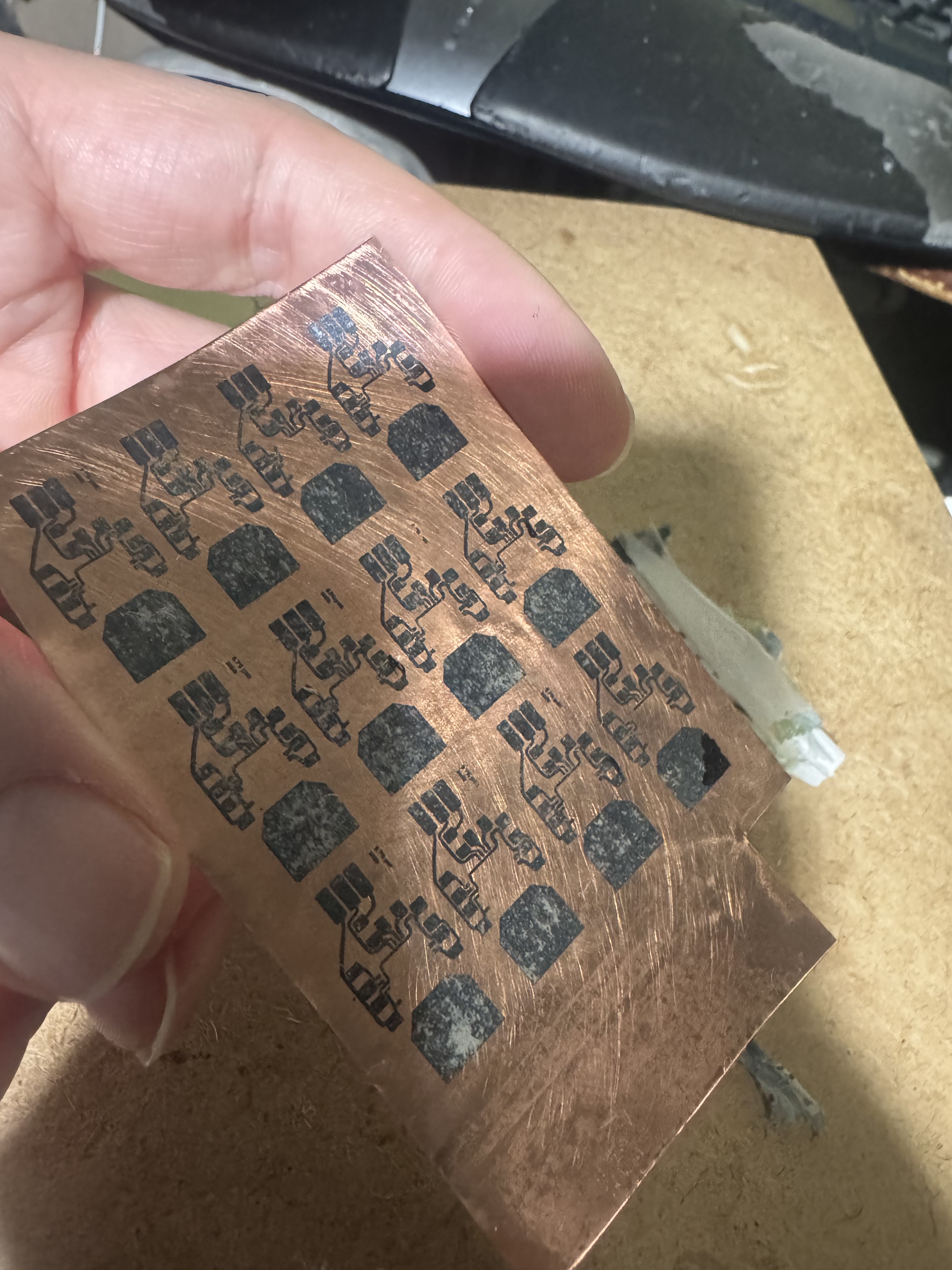

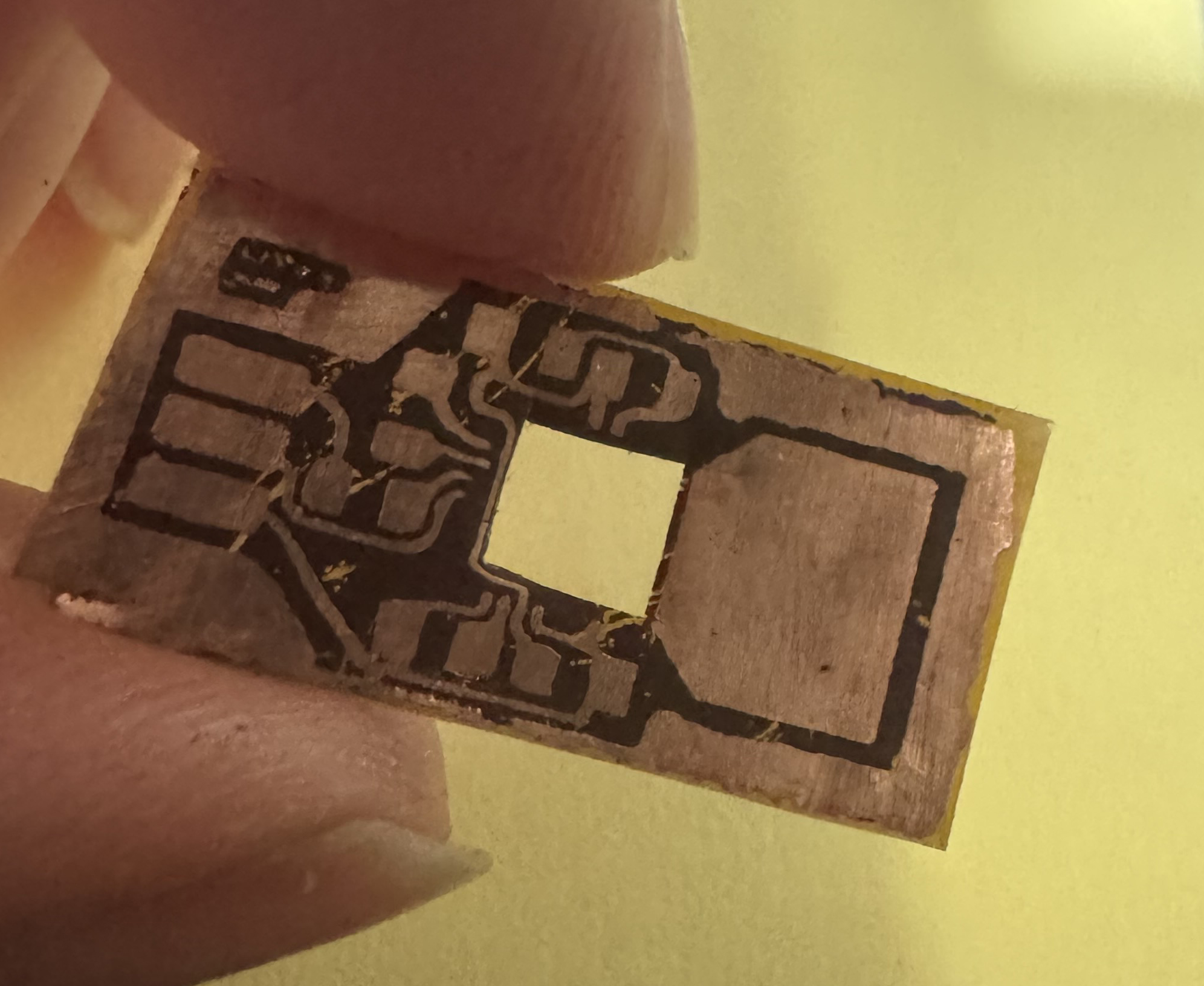

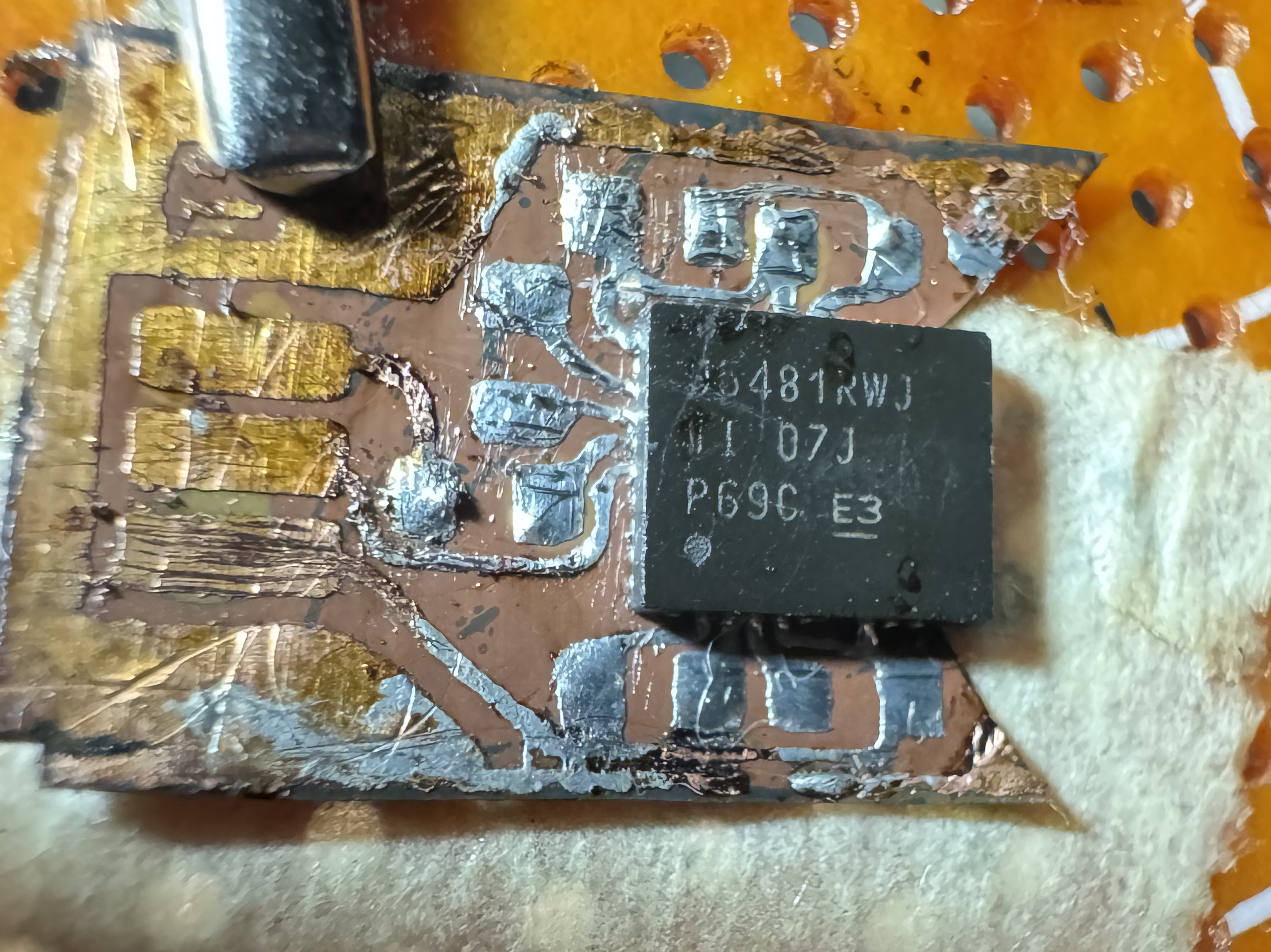

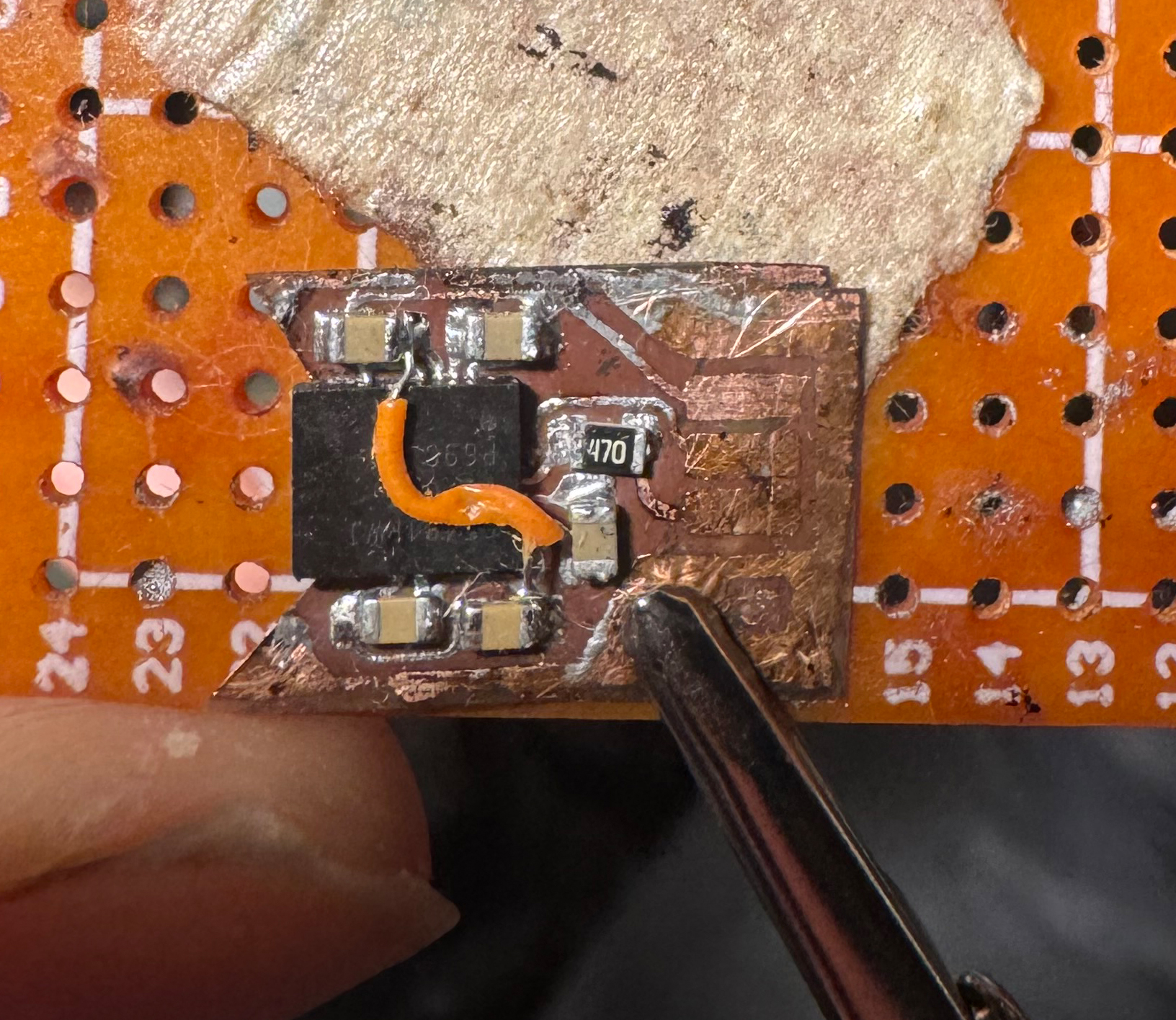

So I ran into some issues trying to make the DIY flex PCB for my integrated half bridge IC chip. This chip has extremely fine 0.4mm pin spacing so the PCB has to be insanely accurate. My previous discrete components BLDC motor controller variant enabled me to create much more crude and less dialed in flex PCBs and things still worked. But with this flex PCB it has to be very dialed in and with very high execution precision. This is no joke. The first issue is that my laser printer does not adhere well to the pcb transfer paper I bought on amazon. It prints on it with some of the toner showing up mirrored a inch or so away from where the print originally lands onto the PCB transfer paper. This means the ink isn't setting onto the transfer paper enough and is coming off onto the fuser roller or something and that is corrupting the fuser roller. This can destroy my printer's performance over time and cause improper fusing onto all prints going forward even for normal office use which means addresses I print on envelopes are smearing off while in transit and envelopes are being lost in the mail system for me. This is VERY VERY bad. So I had to ditch using this transfer paper.
Thankfully chatgpt recommended using glossy magazine paper and so I gave that a try. I used Psychology Today magazine paper and the print went onto there PERFECTLY. I used 600 dpi setting, heavy as paper type. I prepped my copper flex PCB blank (Pyralux) with 400 grit sandpaper followed by alcohol prep pad wipes. Next, I laminated the glossy magazine paper print onto my copper flex PCB blank (Pyralux) with my laminator a few passes. Next I soaked the magazine and flex PCB sandwich in 110F water for around 30 minutes which turned the glossy magazine paper mushy/pulpy. I then rubbed the paper repeatedly with my fingers working from the outside edges and was able to roll it off gradually and gently. It came off in two layers. It leaves a bit of pulp residue behind on the pads but that is ok it doesn't affect the etching process later you can leave that. And with this method I got the cleanest traces on there EVER.

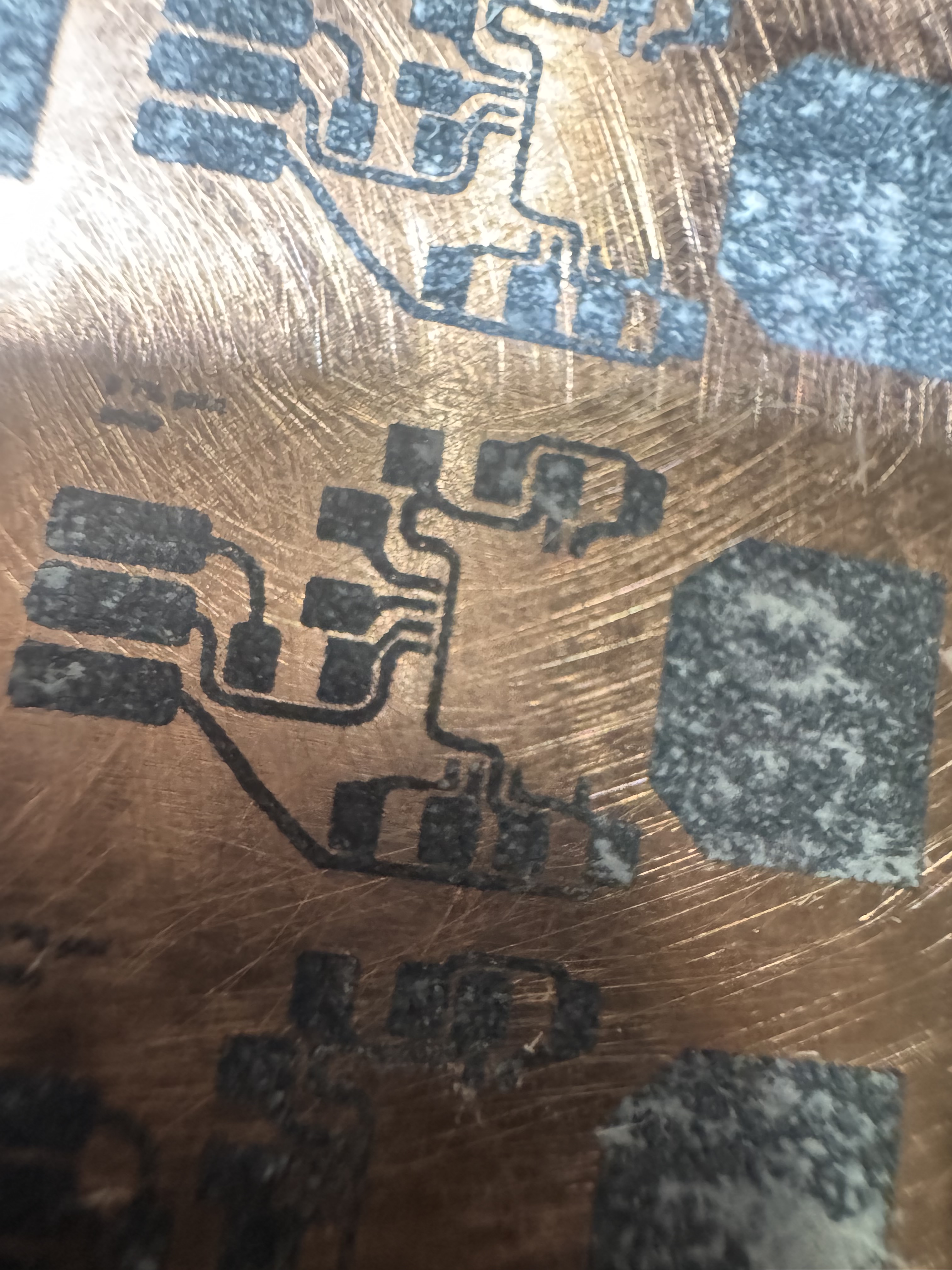

But when I went to etch this clean PCB with toner in place, things fell apart again. I used room temperature water with my Ammonium Persulfate crystal and water mixture. So it was 68F water. I did not agitate the etchant much. The etching took about 2.5-3 hours! That is horrible etching speed. The larger copper planes took their dear time to evaporate and meanwhile the finer traces had undercutting so bad that the entire copper under the toner etched away and evaporated and the toner came off having nothing to stick to anymore and whose sections were lost. The total etching time is supposed to be no more than 5-15 minutes. 3 hours is totally unacceptable. I found out from chatgpt that the reason it took forever was I failed to heat the etchant to 110-120F and I failed to agitate the mix (stir or vibrate or w/e helps). I also learned from chatgpt that for every 10F increase in temperature of the etchant, the etching time cuts in half. So a increase to 110F will mean the etching time should come down to the 5 minute range pretty likely if I also agitate well. The instructions on the container of etchant crystals said room temperature and no agitation is fine. THEY WERE WRONG for SURE on that.
So to address perfecting the etching process I plan to get a AC hot plate with temperature adjust which I already own - one for like pans or kettles cooking/heating. I also determined that the easiest way to agitate would be to put the etchant and PCB in a small container and create a apparatus that lifts and lowers one side of the container in a rhythmic way so that it rocks the etchant back and forth across the PCB. Below is my simple apparatus design for that. The advantage of this approach is its free if you have the very few parts needed. I can power it with my lab power supply. The n20 gear motor is like $1. Super easy to make. Can handle my 15g of etchant sloshing easily. Simple to make. Does not have anything going INSIDE the acid which would then be spinning and crashing into the PCB and possibly causing issues there. We want just a bear minimum amount of etchant batch per PCB job and so even a spinning stir rod with magnet setup would be hitting the PCB and tossing it around violently etc I didn't want that and didn't want acid on that and having to fish it out and clean it of acid. Prefer nothing going into the acid but the PCB itself. So rocking the whole container makes sense for this and resolves that problem.

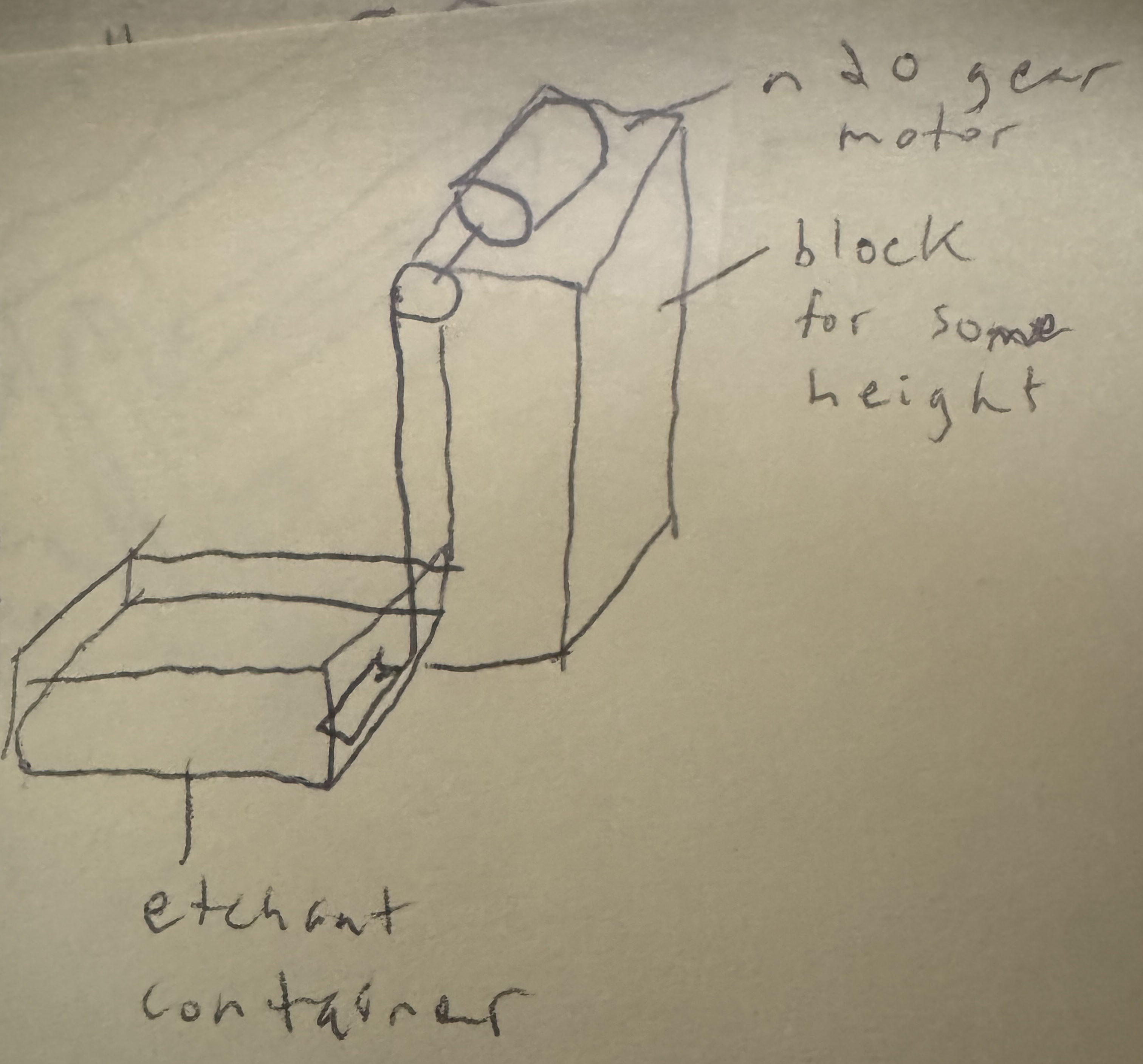

The rocker apparatus consists of a n20 gearmotor ($1 on aliexpress), a little wheel (paper and superglue composite wheel), string, a little block to get the motor up higher in placement than the etchant container. As the n20 gearmotor rotates it lifts the string, raising up one end of the etchant container. As it reaches 180 degrees of rotation (6 o'clock) it has lowered the etchant container back down. It repeats this raising and lowering of the container over and over in a cyclic pattern which will cause the etchant solution to slosh back and forth over the PCB improving the rate of the chemical etching reaction and moving copper ions away from the PCB surface being etched more efficiently. No pwm motor controller is needed I don't think since you can change the rock speed by changing voltage setting on the lab power supply and/or changing radius of the wheel that is turning and doing the lifting and lowering action.
This is definetly not worth whatever you saved by buying the module or having the pcb made in pcbway. Bug desu no you should have ordered the model. Until i see the robot hands this is pointless.
>>2976772Results look inconsistent desu. Are you going to manually test all those for shorts before soldering? The next round of issues will come when you try to solder something fine pitch on this. All the money you spent on this could have bought multiple iterations of prototyping from jlcpcb or elsewhere. And all the time spent on this invested on r&d to actually advance this project someday.
>>2969431STOP THIS FUCKONG ABOMINATION OF A PROJECT RICHT NOW YOUR ANCESTORS ARE CRINGING IN THEIR GRAVES
for fuck sake, this is going even worse that my low expectationwtf man, 20 days to print doodled shit on some paper and do some stuff a 1rst year student can learn to do in an afternoonhow the fuck do you expect yourself to finish your robot sex slave before you are burning in hell for trying to make yourself as God ?
>>2976193Has some kind of terminal narcissism with religious overtones. I don't think there are meds for it.
So I was randomly watching YouTube recently and saw a George Hotz past broadcast entitled "George Hotz | Programming | Welcome to Gas Town and the future of Computer Use | Agentic AI | Part 1". It kind of shocked me to see this. I was under the impression for some years now that vibecoding was for total noob programmers who were incompetent and horrible coders that were happy to throw together some absolute trash bug filled code with LLM help and call it done. And that were they ever to need to go back and fix the code and remove bugs, it would be more trouble than it was worth due to the horrible code the LLM output. That it would be easier to rewrite it all from scratch at that point than to try to fix its bugs. I'd been watching this space closely though. That was the consensus I thought was at hand. But then this video threw a monkey wrench into that consensus. Here, a world renowned god-tier coder in George Hotz was using agentic AI and saying its the future of coding. Kind of blew my mind. I then deep dove into agentic AI, how agents work, what is the agentic loop, what are agent tools, what are agent skills, what is good vibe coding practice, what are good vs bad vibe coding methodologies, how much does it cost, etc etc. I discovered something called Claude Code and Codex and OpenCode and OpenClaw and people raving about these tools or warning about them and making fun of them. It is a incredibly polarizing topic with people adamantly for and against it all. I even listened to a 11.5 hour long audiobook called Vibe Coding Audiobook by Gene Kim, Steve Yegge. It was a huge deep dive for me. Full Post: https://forum.allaboutcircuits.com/ubs/llm-assisted-coding-custom-ecosystem-i-am-creating.1927/
>>2976193>>2977183ego-seltzer and empathamine 5mg for acute narcissism and cognitive rigidity, daily, crushed into morning porridge
>>2977214Oh no yeah def and the best part is a robot is half machine half code so really ai can do half or less than half cause really cause youd still need to do sims. But in the next step for ai is having it plugged into all software so even robot sims will have ai and the robot actuators keep getting better and will get cheaper as time goes on. But i dont want to spend hundreds on robot actuators so..,
>>2977214AI will give you code that looks good on its own in little sections, but amounts to incoherent slop over an entire complex project.Software nowadays is already usually a buggy mess and a needless resource hog, which AI is being trained on, which future programmers wont even know is a problem because they have deteriorated skills due to reliance on AI.AI is very good at pattern recognition or simple mundane tasks (e.g. object recognition), and can have utility as a tool to explain things, but i wouldn't rely on it to do design work, especially unchecked.
>>2977345If you use public ai yeah it starts messing up after 1000 lines of code which you get there fast because it likes bloating thd code with error handling etc…ButStuff like copilot doesn't just hand you the code it edits the code. There also agents for debugging. Its good to have a good grasp of what youre planning to do but yeah coding by hand is being phased out.
>>2977302>ai can do half or less than half cause really cause youd still need to do simsIf LLMs like ChatGPT, Gemini, and Claude can be used for vibecoding, then shouldn't it be possible to use them to generate a netlist for use in a SPICE program (LTSpice, NGSpice, PSpice, etc.)? I've never tried it myself, but I have seen people make subcircuits for LTSpice to simulate AC and DC motors, so I think simulating a BLDC motor driver shouldn't be an impossible feat.
>>2977396I dont know what spice is. Id just use tinkercad and try that tinkercad to fusion 360 workflow lol
>>2977468Didn't you watch the movie Dune? "The spice must flow".Just kidding. SPICE is an electronic circuit simulator, widely regarded as the industry and academia standard for circuit simulation. It was originally developed by an EE professor named Laurence Nagel at UC Berkeley in 1973. Since then, many variants of SPICE, both FOSS (NGSpice), free but closed source (LTSpice, Q-Spice, TINA-TI), and paid (PSpice) have popped up. Both KiCad and Tinkercad's circuit simulation modes rely on NGSpice. Tinkercad has the disadvantage of not allowing custom component models to be imported, but stand-alone installations of NGSpice will allow you make them, so as to include, say, a custom transistor with specific beta values.I remember getting free student versions of TINA-TI and PSpice using my university e-mail address, but I'm not really sure how easy it is to get a hobbyist version of them. LTSpice is absolutely free, but it doesn't have component models for electrical motors, even though some people have made their own in the past.https://www.precisionmicrodrives.com/ab-025LTSpice is Windows-only, however. Fortunately, NGSpice will run on Windows, Mac OS X, and Linux, although it may be slightly more difficult to use, as it doesn't come with a waveform viewer by default, so you'll have to use something like GNU Octave or Matplotlib to graph the waveforms. Fortunately, KiCad and Qucs-S (which both make use of NGSpice) do have their own built-in waveform viewer.The biggest advantage of using any SPICE tool is knowing that you'll have a netlist (in order words, a structured list of nodes and components) that can be edited as a stand-alone text file, which makes it very easy to use custom components and group together components into subcircuits. Since it's text-based, I don't really see it too difficult to imagine that something like ChatGPT or Claude could at least write a custom netlist for a relatively simple circuit.
>>2976773>free chatbot trained on whatever internet bullshit instructed me to fail and waste time/resources once again>BUT THE COMPANY THAT MADE ETCHANT WAS WRONG ON HOW TO USE THEIR PRODUCT - FOR SURE!smfh
