This is what is supposed to be a vent in our kitchen that connects to the apartment complex’s ductwork.In non-burger units it’s a 100mm vent hole. The cut is about 11.5x10.5cmThe owner before the previous owner was a fucking tard and did this shit, so it’s our problem now. We want this fixed ASAP as this is a ductwork that is also hooked up to the bathrooms, so shit smell will occasionally come into our kitchen.Any suggestions?The supposed original hole going to the ductwork is kinda awkwardly placed as you can see, being obfuscated by a metal beam.
>>2989538Is this in the floor, wall, or ceiling? Also, 'ductwork'? What kind? Vent or HVAC?
>>2989541It’s on the wall, right below the ceiling.Ventilation only, air is pulled in.Pic related is on the inside through that hole
>>2989538so the ibeam holding up the wall is just on its side? >>2989543>Ventilation only, air is pulled in.clearly not otherwise you wouldn't smell shit from the bathroom.you can't connect a cooker hood to it or anything, so if its annoying you just close it off.
>>2989538>apartmentCall the landlord and have them fix it.
>>2989538Cut a piece of sheet metal from some duct on the roof of your complex and do this.
>>2989563It’s not a rental. I own it.
>>2989564Thanks, that’s actually what I had in mind as well but wanted to hear out here. Now I’m an ESL, and also clearly no expert in ventilation terminology so what is the "tube" thing called what I will connect to this hole creating a socket to add another longer tube?>>2989560Sealing it is another option but I still wanna try to make it work.
Bump
Where are you trying to connect it to? You want 6" flex. If you want to use actual pipe you will need snips a drill and sheet metal screws.Or just fill it with insulation and cook food that doesn't smell like shit.
>>2989908What do I use to seal the plate to cover the older hole properly ?
>>2989939An adhesive caulk would do fine. Just make sure you put a good even bead around the old hole so you dont end up with a leaky spot.
>>2989538>>2989543FYI you are almost never allowed to put a fan on shared ducts like these because it would spread kitchen smell and airborne diseases to other apartments. They are for passive ventilation only, cut the hole as big as you want and put a grate on it
>>2989943Thanks!>>2989952Yes of course, I’m only planning to mount a regular exhaust valve potentially with a check valve if I can fit. The duct pulls enough air out already.

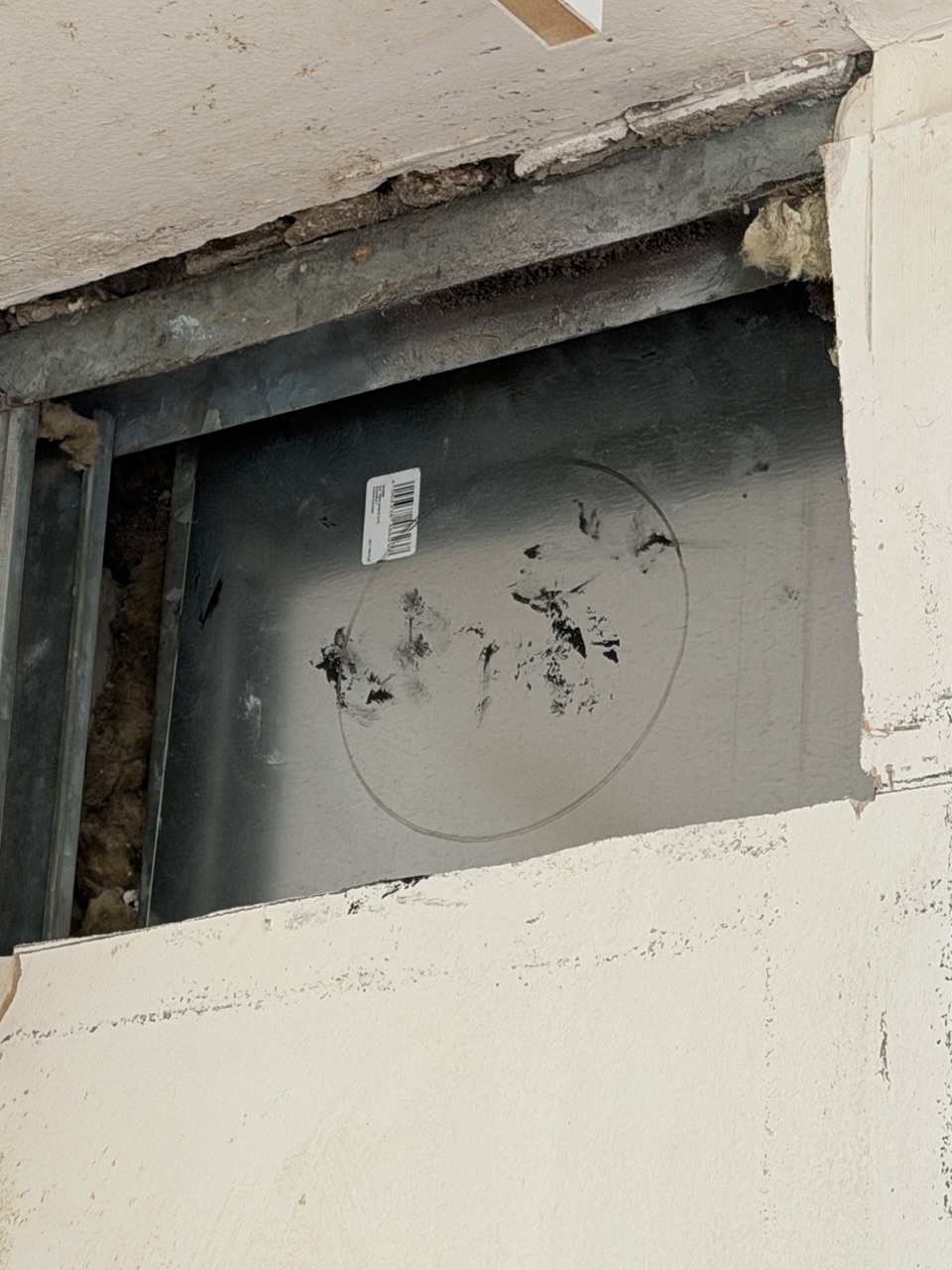

I just sealed it off now.I cut off the wall a bit to make room for the 10x10 inch metal sheet I got. I used some adhesive caulk that I applied around the old hole and on the corners of the sheet. I kinda fucked up and started drilling into the sheet almost right away which made it peel off on the right side because the caulk takes 24hrs to dey, so I took it off an reapplied a thicker layer of caulk again. Will update tomorrow.

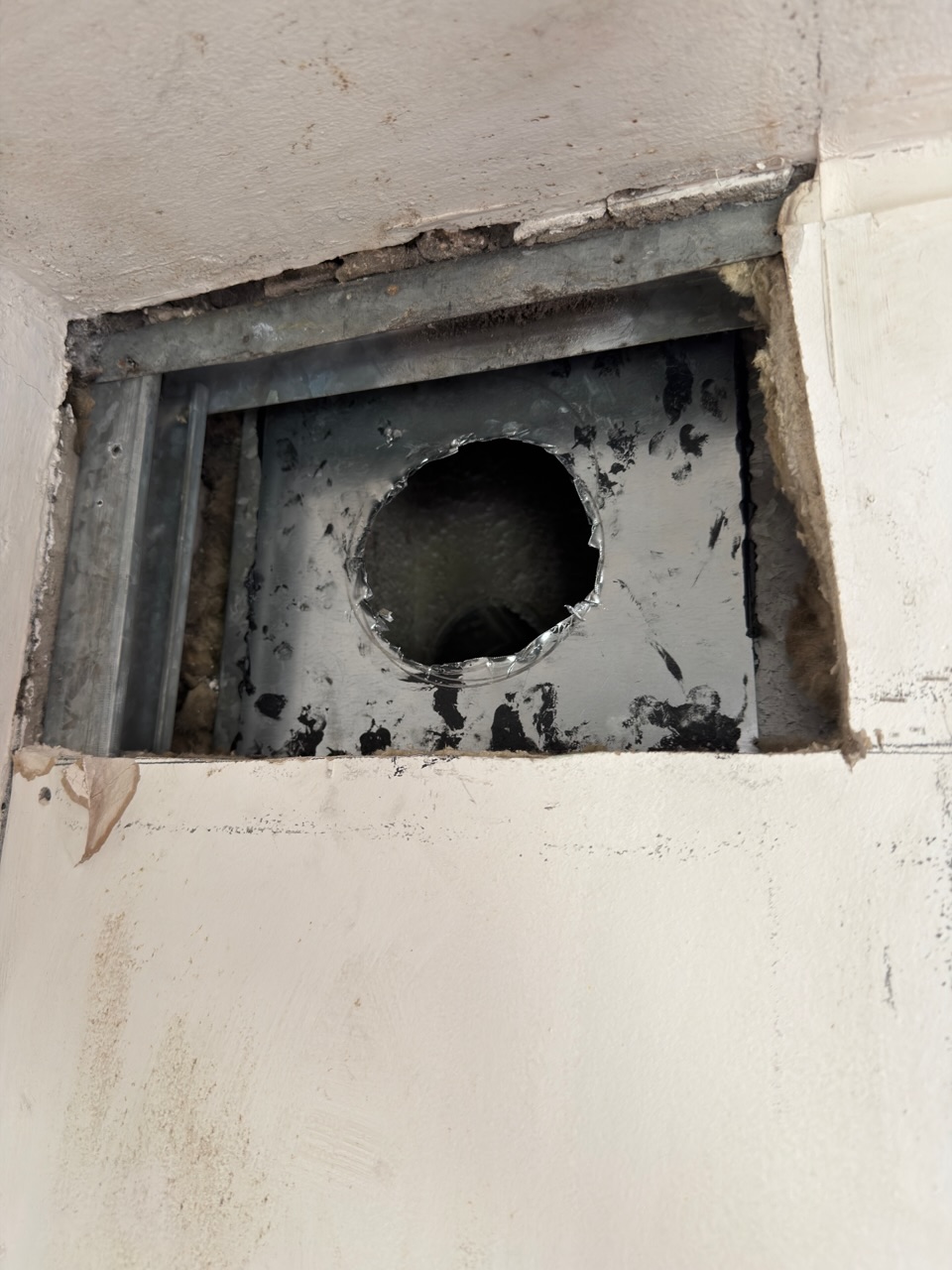

>>2990231Just cut out the hole. It was probably not the best choice of a pair of metal shears but I will sand it down a bit
>>2990231a brand new piece of sheet metal, top lad

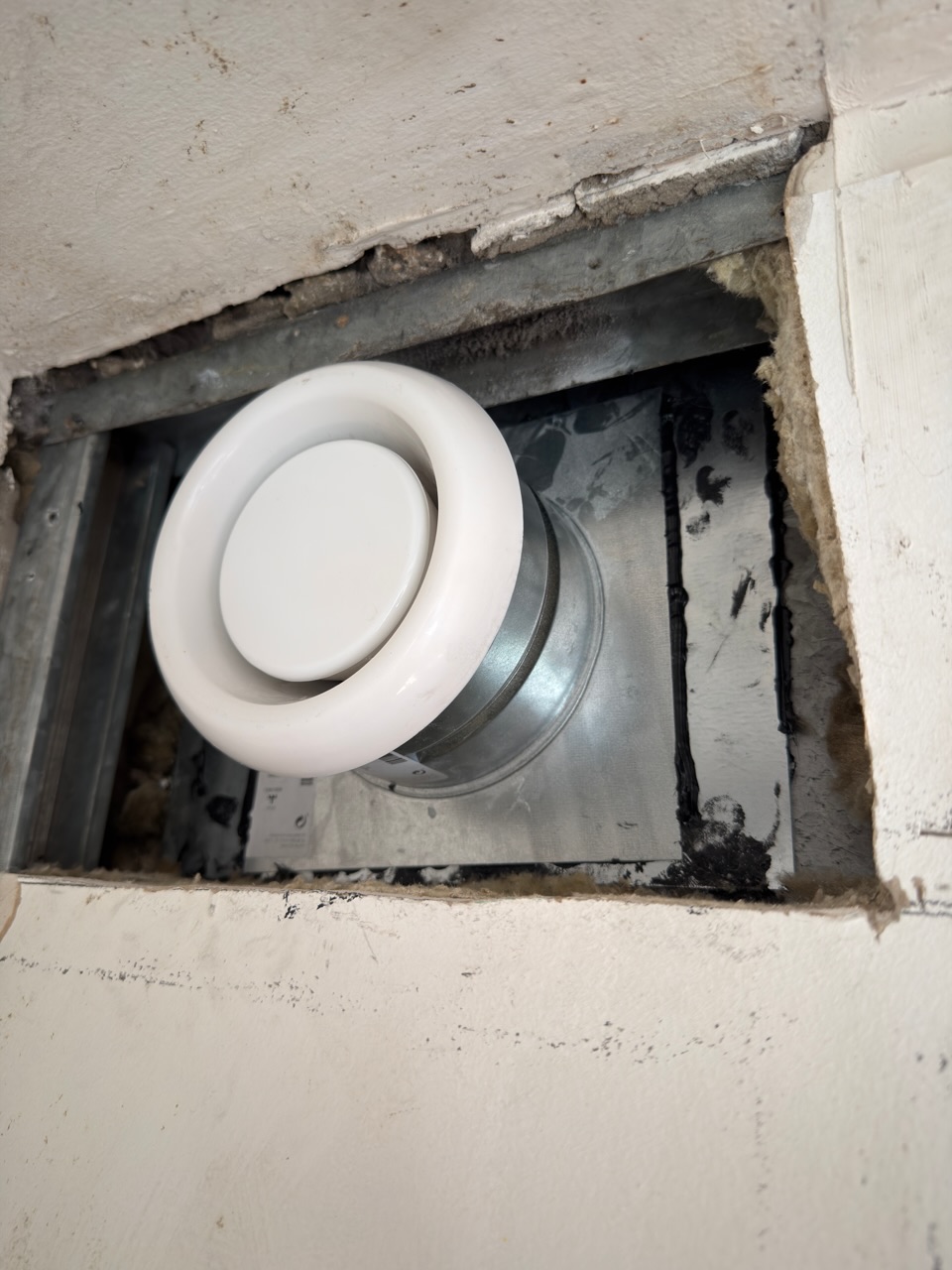

And done!Not only does it already look miles better, but it’s also way more quiet and it ventilates well. Sure it’s not finished but the remaining steps are manageable.I think I’ll hold off the foaming sealant until I have gotten a proper plasterboard cut out, but if you guys believe applying it already shouldn’t be an issue, I’ll do it already.
>>2990379How does this keep the stink out?
>>2990384Haven’t had the chance to experience it yet but the valve is quite tight with only a tiny gap so I believe it should mainly keep the air going one direction.If ever, we will add a check valve later. This is only a temporary solution as we may add a walk in pantry in this area of the kitchen, with the vent placed at 45° at the top.
>>2990392>the valve is quite tightWhat kind of valve?
>>2990397the exhaust valve seen in the picture.
>>2990379Nice work
