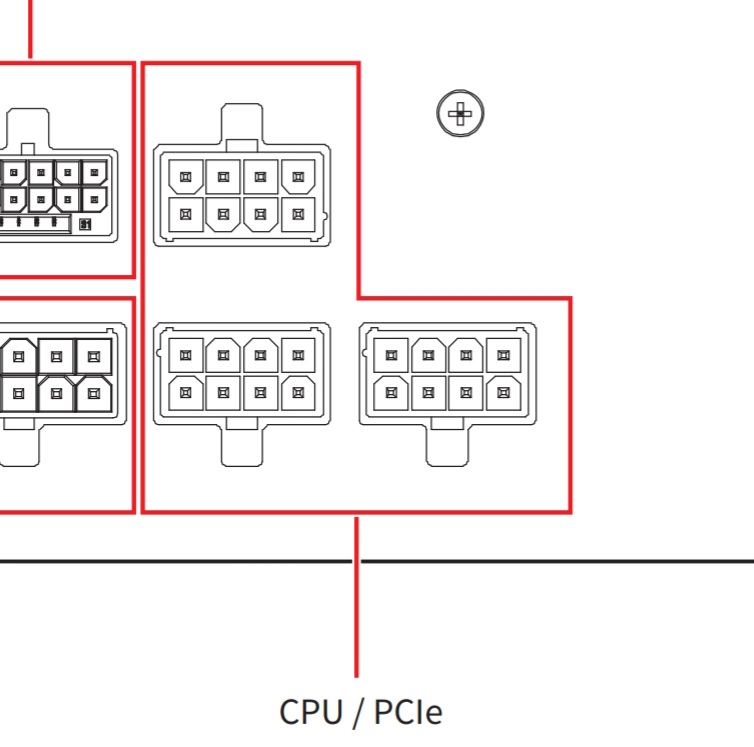

What is this goddamn bullshit. Stupid fucking CPU plugin is triangle square square triangle and the opposite on the other row.

I need that same configuration for my mobo too, but ALL of the fucking cords that came with the power supply have different configurations at the other end of the cord.
>>
Anonymous
01/29/26(Thu)10:59:14 No.108003626
Anonymous 01/29/26(Thu)10:59:14 No.108003626

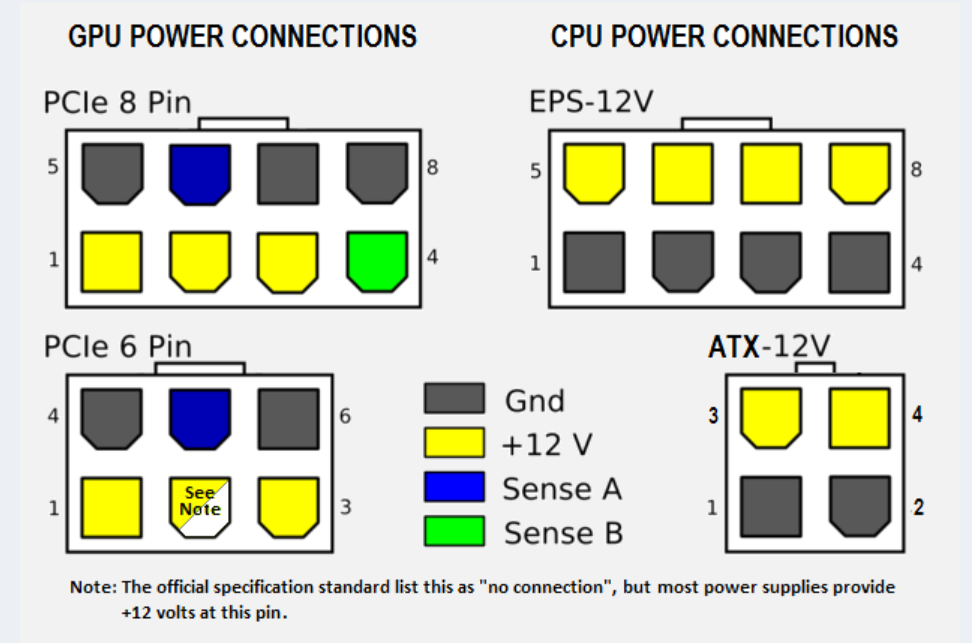

File: Spsgx.png (138 KB, 972x643)
138 KB
138 KB PNG
you are being protected from your own ignorance
>>
Anonymous
01/29/26(Thu)16:02:43 No.108005807
Anonymous 01/29/26(Thu)16:02:43 No.108005807
>>108002247

pick the right power anon
read connector ends

i have one computer that does not use all cpu eps ?? pins but is ok since celeron
>>
Anonymous
01/29/26(Thu)17:06:03 No.108006354
Anonymous 01/29/26(Thu)17:06:03 No.108006354
>>108002247
The bottom row is a mirror of the top row. They do this so you have clearance for your finger to reach to latch when you unplug the cable.
If the weren't mirrored, you finger wouldn't be able to reach the latch of the bottom row plugs.
