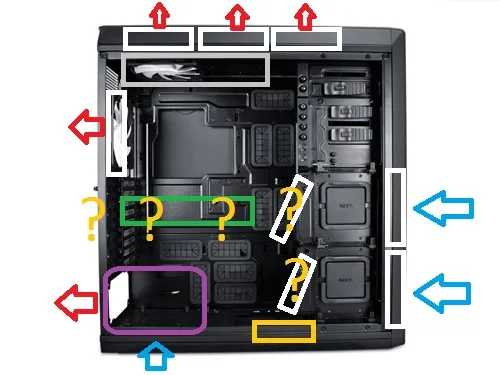

is this still peak case design or have they improved.
>>108847067They greatly improved by getting rid of the airflow blocking drive bays.
>>108847078fuck off that is not an improvement that is a cost cutting measure.
>>108847067newer versions of this design don't have the drive bays so it allows even more AIO or custom watercooling, or more hard drives. They are also generally a bit wider in the smallest dimension, which allows for better wire management, and sometimes the lower section housing the PSU is separate, allowing even more wire management or various controllers to be placed there. More and better fans, quieter cases, better airflow, and actual glass instead of acrylic seems to be the trend for this design overall.
>>108847118>SSD>NVMe>M.2Anyway, just buy a case with drive bays They make them.
>>108847179>>SSD>>NVMe>>M.2Whoa get a load of mr.moneybags

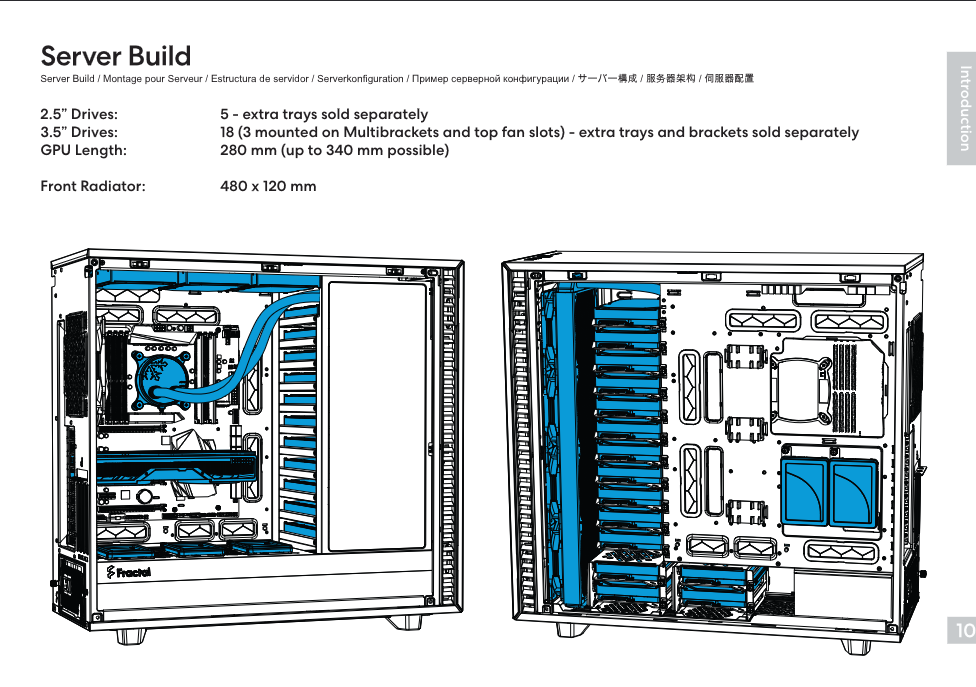

>>108847067Not to sound like a shill but the Define 7 XL is probably the best case design that will exist until we have rice grain sized ssds or something.

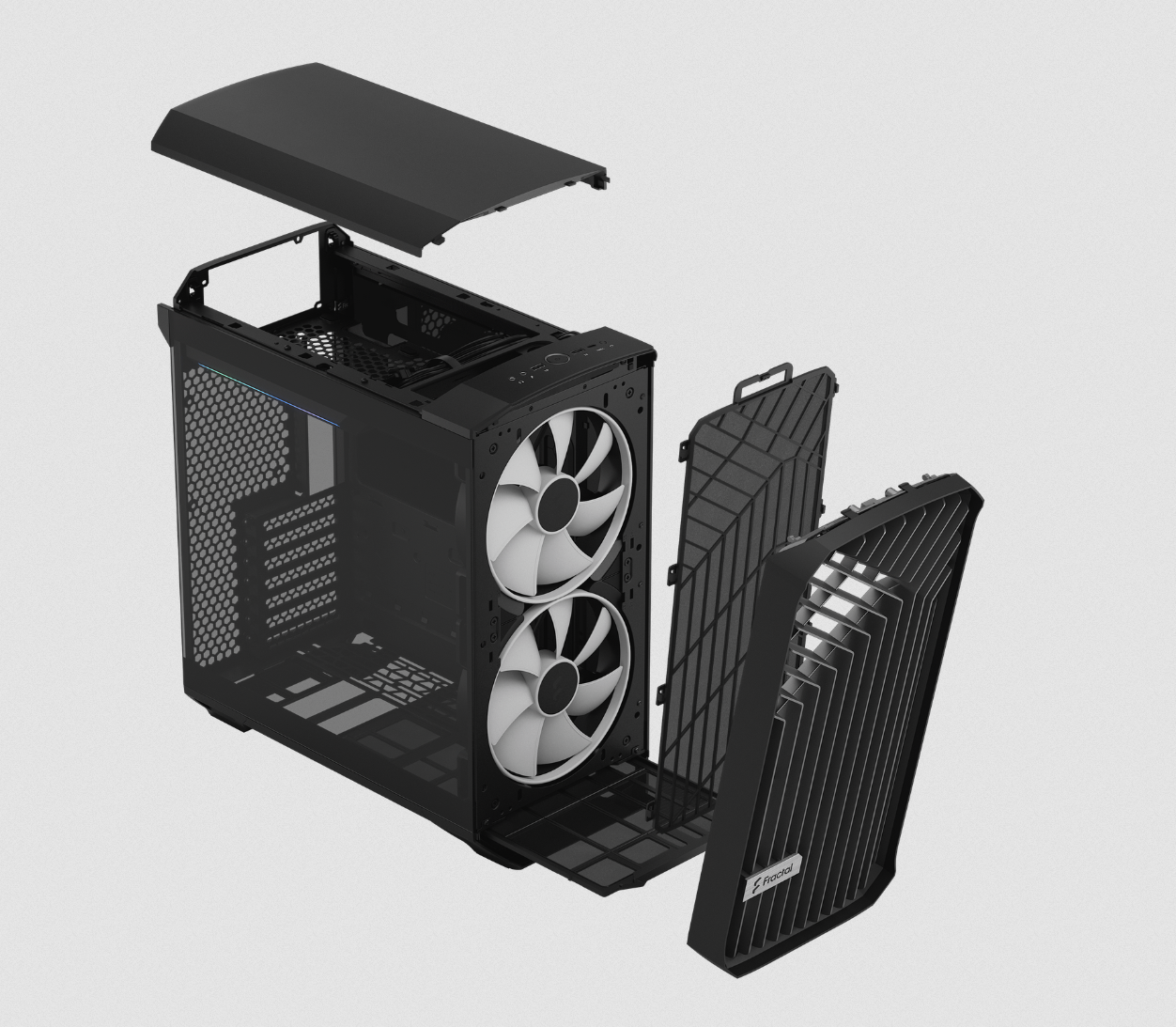

Several cases put a scoop in the lower front, and keep the power supply in the lower rear. That Havn 360 case, Fractal Meshify 3, Fractal Pop 2 Air, etc.There's also that idea of mounting the power supply, rotated 90 degrees from what's typical. Lian Li 207 does that in the front, Antec Flux Pro in the back.

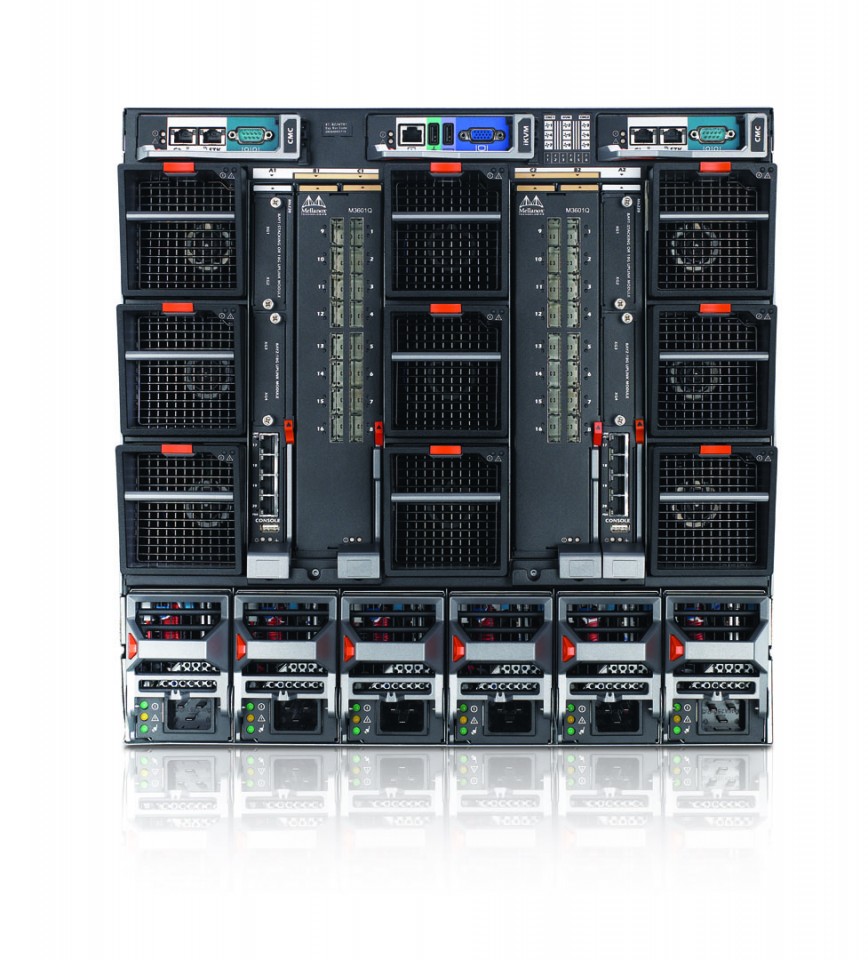

>>108847328you mean the dell 1000e chassis right?
>>108847078BRING BACK STORAGE AREAS FOR PHYSICAL DRIVES
>>108847067hello!

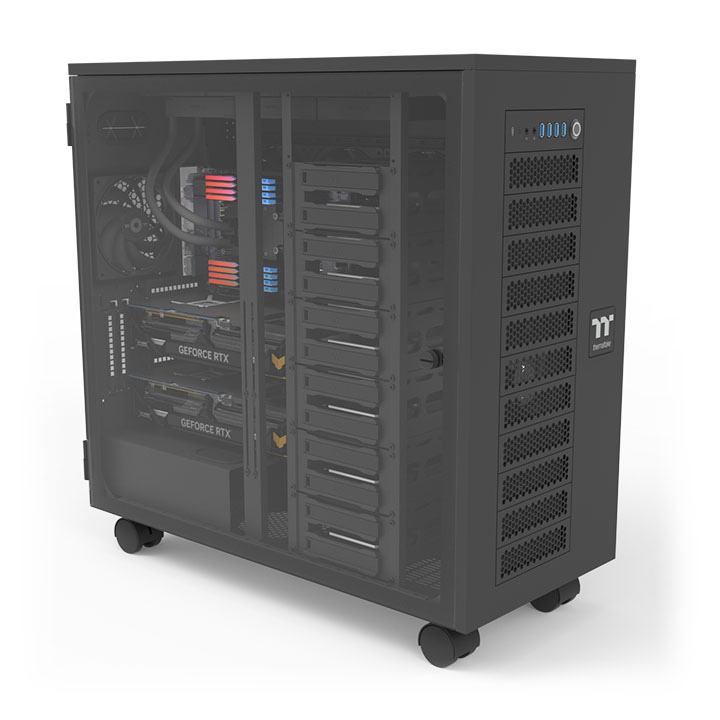

>>108847067The best design IMO is something like a CM stacker or any other case that has it's entire front as 5.25 bays.It's no longer a hard choice between storage, fans, radiators or anything else.Being 5.25 means that if you do make a decision you have options. Do you just want basic HDD trays or do you want hotswap?
>>108847067>top fansWrong if you are strictly using air coolingLearn how wind tunnels work

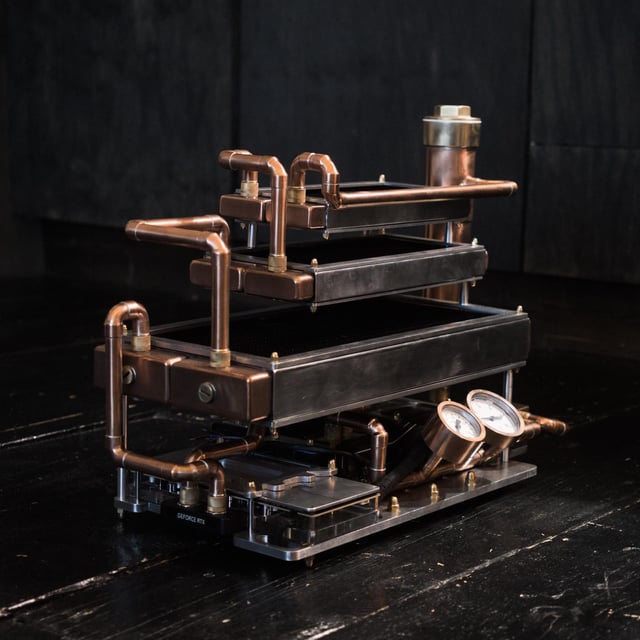

>>108847067>>108847328Radiators mounted inside the case is fucking gayradiators should have their own chambers to allow for clean in/out airflow without mixed it with any other air

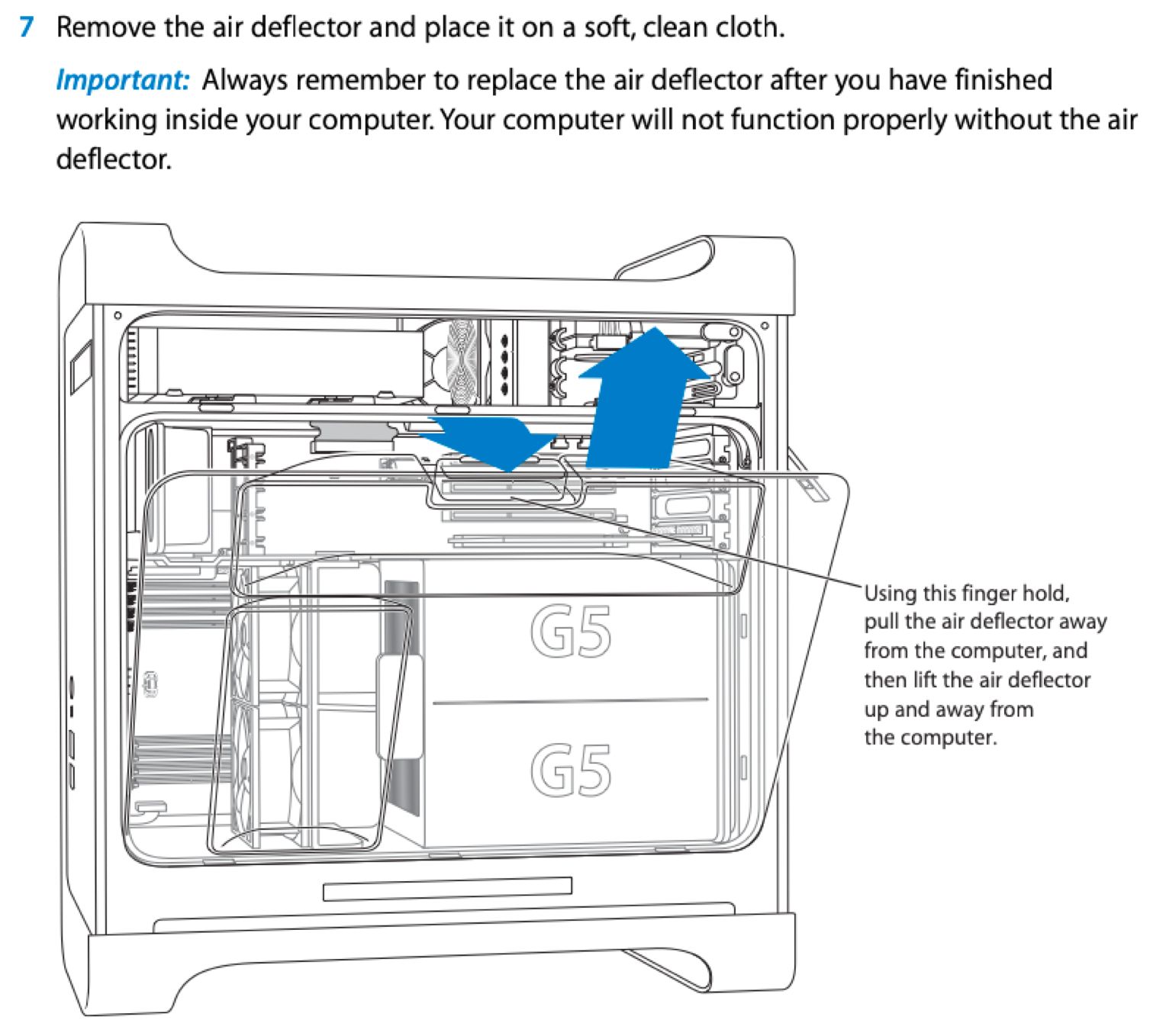

>>108847067you can’t call it peak case design if the power button is anywhere near where you plug in USB things and headphones in the frontalsohttps://www.agc88.fr/agc/doc/apple/powermacG5-userguide.pdf was probably close to peak case designpic related is from page 45>three separate air tunnels>easy in, easy out>big fucking fans for the CPU(s) that generate loads of heat>airflow intelligently directed in one direction without air bouncing around all over the place inside>Johny Ive modeled this on an HVAC heat exchanger and it’s clearly his most underrated work, if not his best work
I always hated this retarded shit.Never bought a case that does this and never will.
>>108847067Negative air pressure is always a poor decision. >>108847078>>108847179Retarded posts.

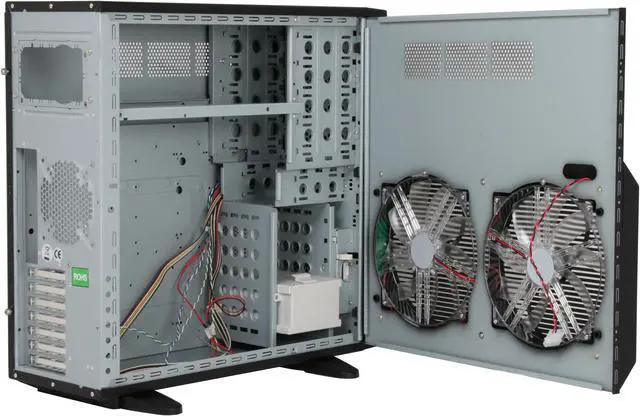

If there were filters on the two large fans this would be a pretty optimal design. Just two fans pulling air in. All other vents allowing air out.
2 fans at the front, one at the back. That's it. That's all you need.
>>108847067
>>108849006>Just two fans pulling air in.That's exactly what I have. There's no other moving parts in the entire rig and even those 2 fans are off almost the entire time. The passive PSU sits at the bottom, right next to the intake fans.

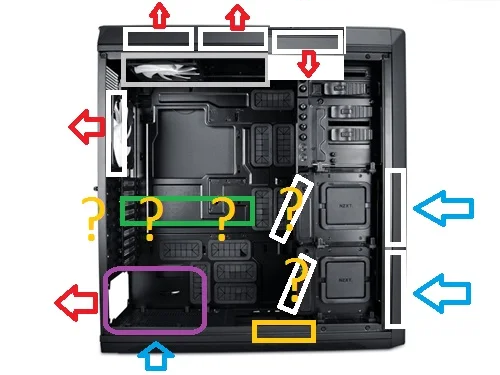

>>108847067>more outtake fans than intake enjoy vacuum inside
>>108849019Also, the only improvements would be to actually fix the PSU in its place, seal off the bottom mesh shit and remove that top PSU compartment since I'm not using it.
You only need one intake and exhaust fan in 99% of builds, everything past that is ricer waste of electricity.
>>108847067>negative air pressure >peak case designlol
>someone brings up one good point>hurr let's all repeat it ad nauseam :DDDDare we on fucking plebbit or youtube????? fuck off
>>108848975>giving the psu its own isolated airflow is badyoure fucking retarded bud, buy a case with feet and dont put it on thick carpet
>>108847067PCs are outdated architecture.It is sacrificing performance for the sake of dubious* modularity.*example: graphics cards double the role of system RAM and (partially) CPU - there is no good reason GPU and CPU couldn't share the same fast memory and be on the same chip - in fact it's the most efficient and performant design.
>>108847328thx. i like that case. i will use it for my next build.
>>108849586Fuck you, I'll do what I want.

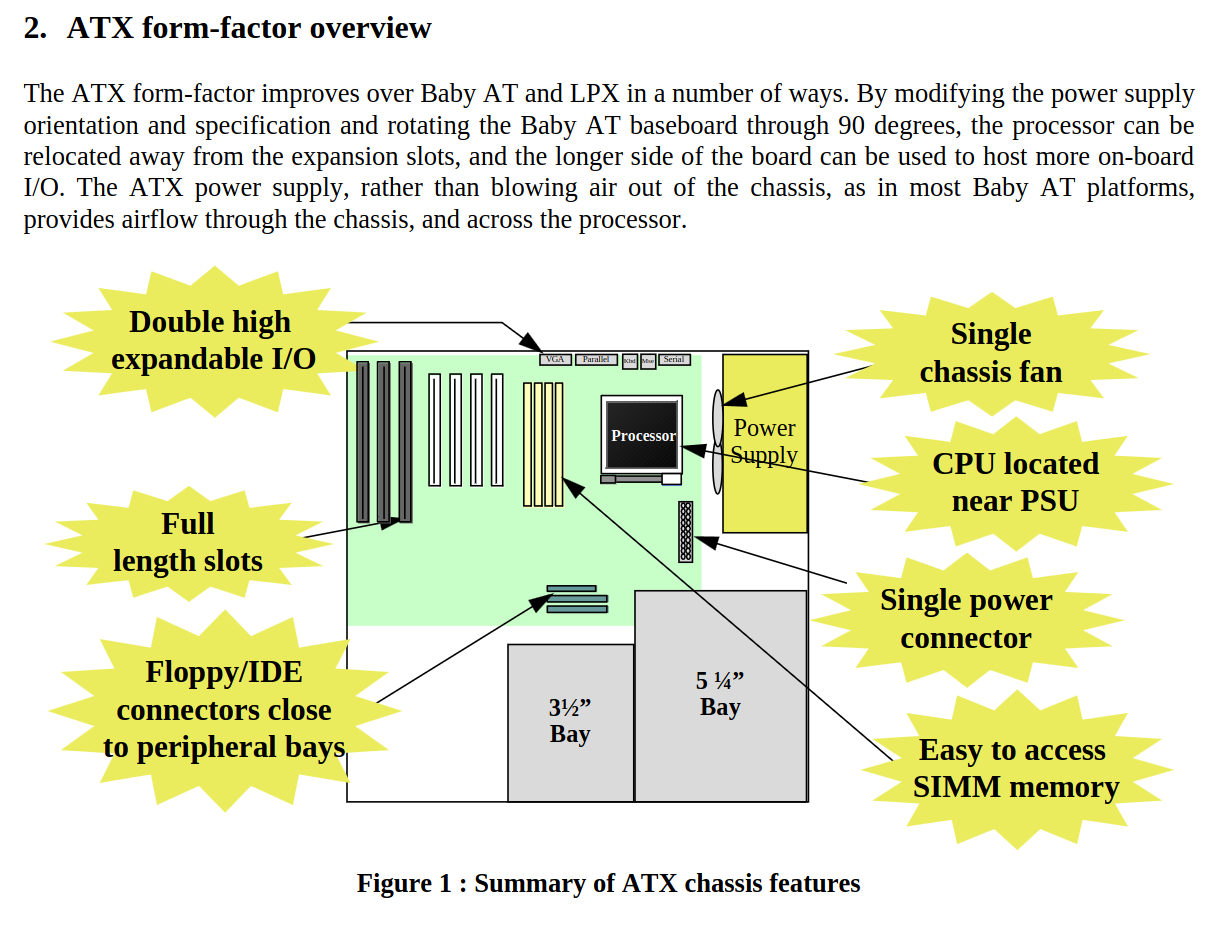

It's been over 30yrs now since the release of the ATX standard (1995) and nothing has changed for the better.How do get rid of the ATX jew?

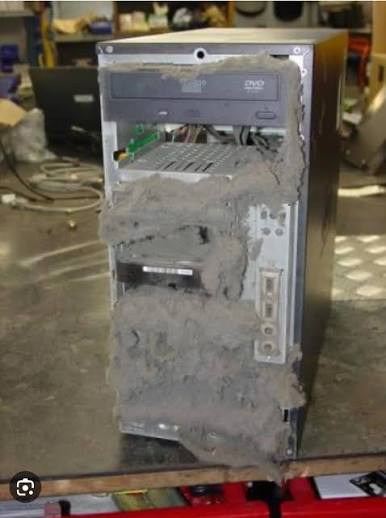

>>108847067I set mine up to have all fans pointing outwards to quickly remove all warm air as fast as possible. Yes dust gets sucked in through every micro gap, but eventually the dust builds up an insulating layer that prevents warm air from heating up my PC, keeping it running at peak performance.
>>108850644
>>108847067This was never optimal, just barely functional.If you want it closer to optimal, you would have to put a lot of plastic shrouds in there, to actually guide the air. And also increase amount of passive coolers, their surface area mainly.
