Hi everyone, I came across this interesting problem and I'm looking for a proof:Consider a convex quadrilateral. The four vertices of the quadrilateral serve as the foci for four ellipses.The condition is: The two ellipses of opposite sides of the quadrilateral touch each other at exactly one point P. This condition holds for both pairs of opposite ellipses simultaneously (sharing the same point P).The goal: Prove that the two tangents of the two pairs of ellipses at point are perpendicular to each other for any convex quadrilateral.I haven't quite cracked it yet. Any insights?
bump

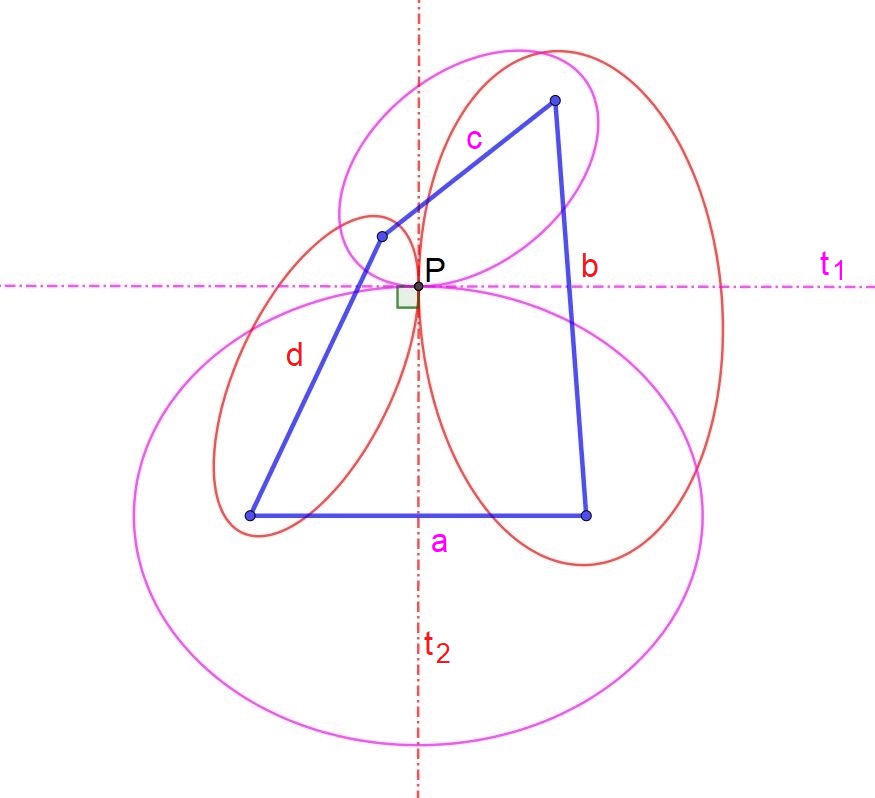

The geometric proof based on the image centers on the reflection property of ellipses.1. Property of the First TangencyThe quadrilateral vertices are A, B, C, and D. The first pair of opposite ellipses have foci (A, B) and (C, D). Because they are tangent at point P, they share a common normal line, n1. By the optical property of ellipses, the normal at any point bisects the angle formed by the lines to the foci. Therefore, n1 bisects both angle APB and angle CPD.2. Angle Definitions at PLet P be the origin and n1 align with the x-axis (0 and pi radians). Based on the bisection property:[eqn] \text{Angle of } PB = \alpha [/eqn][eqn] \text{Angle of } PA = -\alpha [/eqn][eqn] \text{Angle of } PC = \pi - \beta [/eqn][eqn] \text{Angle of } PD = \pi + \beta [/eqn]3. Property of the Second TangencyThe second pair of ellipses has foci (B, C) and (D, A). They share a common normal, n2, which must bisect angle BPC and angle DPA simultaneously.[eqn] \text{Bisector of } \angle BPC = \frac{\alpha + (\pi - \beta)}{2} = \frac{\pi}{2} + \frac{\alpha - \beta}{2} [/eqn][eqn] \text{Bisector of } \angle DPA = \frac{(\pi + \beta) + (2\pi - \alpha)}{2} = \frac{3\pi}{2} + \frac{\beta - \alpha}{2} [/eqn]4. ConclusionFor n2 to be a straight line, the difference between these bisectors must be pi:[eqn] \left( \frac{3\pi}{2} + \frac{\beta - \alpha}{2} \right) - \left( \frac{\pi}{2} + \frac{\alpha - \beta}{2} \right) = \pi + \beta - \alpha [/eqn]Setting this equal to pi requires [math] \beta = \alpha [/math]. Substituting this back into the n2 angle formula results in an angle of pi/2. Thus, n1 (0 radians) and n2 (pi/2 radians) are perpendicular. Since the tangent lines are perpendicular to their respective normals, the tangents t1 and t2 are also perpendicular.
Exactly! Wonderful! The law of reflection, as a property of an ellipse, or rather the fact that the tangent is the bisector of the focal angle, leads to the solution here. Thank you very much for this suggested solution!
