Looks like the last one died. Let's have another.

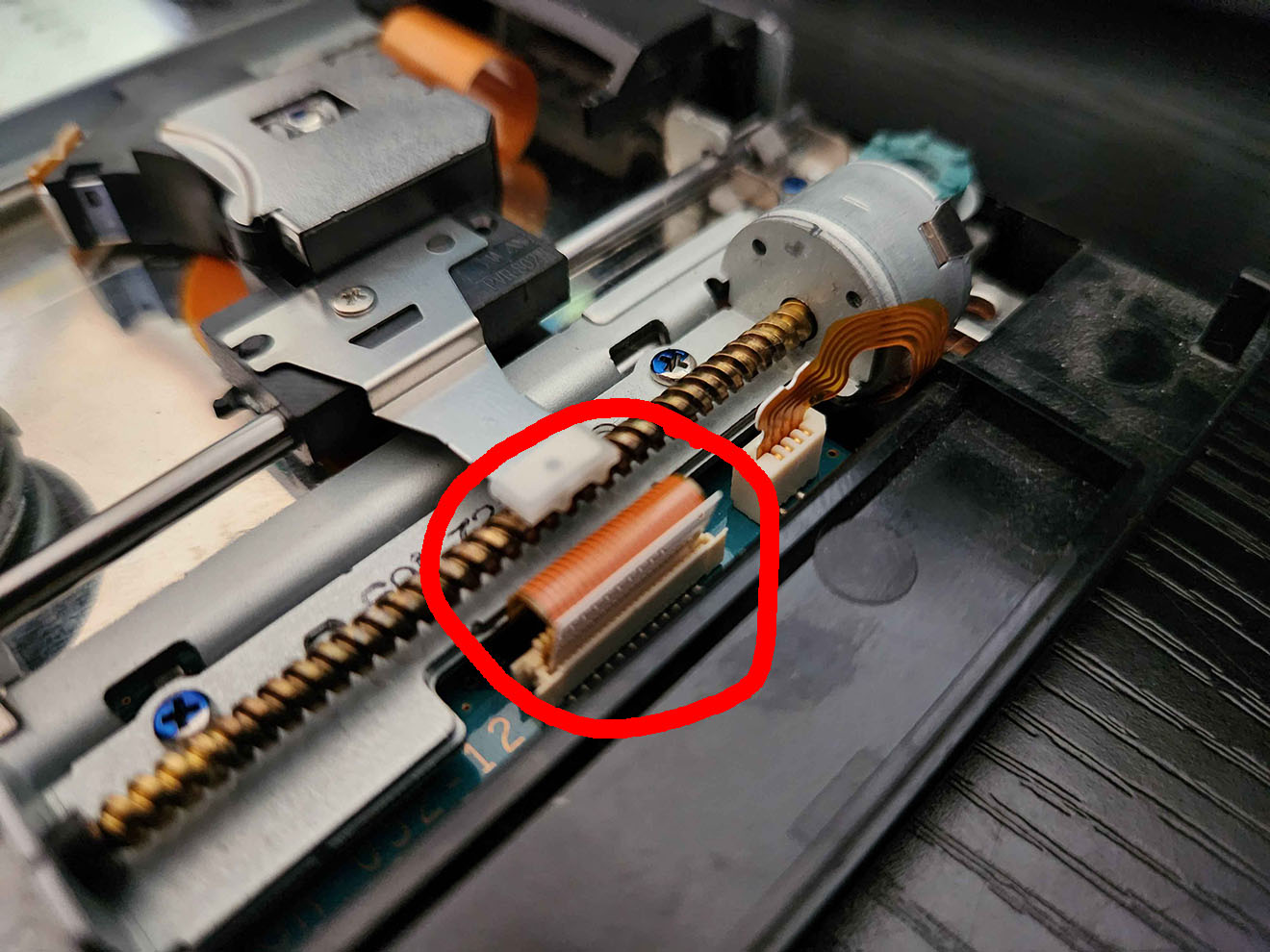

So, I replaced the laser and ribbon cable on a PS2 slim, but the latch on the ribbon cable port broke. I have a few questions.1) Does this port have a name?2) Does the latch on the port have a name?3) Is it possible to find replacement latches for sale, or am I going to have to cannibalize one from another PS2?4) Failing 3, what equipment would I need to replace the port entirely with another that still has the latch? It doesn't look like a job for a soldering iron.5) Should I just tape this shit in somehow and forget relatching it? What kind of tape would I use and where would I put it to ensure the contacts actually make contact?Thanks anons.
just play on p.c. or buy another one, or buy a fat ps2 and hard drive it
Nah.
>>120269011,2,3: Yes4: That's the theoretical best option. In reality you'd likely end up doing more damage than you already have.5: Tape probably isn't the best way to nigger rig it. Your best option is probably to do something more secure that will require you replace the cable and connector if you ever want to do it right.
>>12027181i've broken the same latch he talks about on a PSP, that's not something you just snap you fingers and repair
>>12026901Similar issue here, I think I may have damaged that same ribbon cable, although the connector is okay. Would a damaged ribbon cable cause the laser to grind when it reaches the spindle? It seems like the motor is pushing up to the spindle and trying to move the laser past it, despite the sensor button being depressed by that point?
>>12027196Yep, sounds like the damaged part cut continuity for the position sensor switch. Find which cable you need and replace it.
>>12026901I would just try to tape it honestly, as long as the cable doesn't move who cares
>>12027154Thanks anon. What is the latch or port called?>>12027212I'm retarded and I'm not sure how to tape it since it sits vertically. Got any suggestions?Thanks anons.
>>12027223The "port" is an FFC connector. But knowing what it's called, or even finding the right one, won't magically endow you with the ability to replace it. Your best bet is to hold the cable in place with a shim and drakon it. When you learn how to do the repair you can remove the spooge and replace the part.
>>12027223Put the connector in, on the ribbon cable side *without* the contacts, pad it with some folded up paper like a cut to fit post it note. You need pressure so it hits the contacts inside. Then drip a bit of glue so the paper stays against the connector and doesn't go anywhere.And be careful with those latch bail connectors you savage.
>>12027250Thanks. I know I'd probably break it trying, but I'd rather try and fail than never learn.However, I managed to fix it by pushing the latch back on and taping it in place. It works fine now. Thanks anon.>>12027260Thanks anon. I appreciate you.
>>12027273>brazilian seethes over being called a brazilan
I'm just going to pay to have my Virtual Boy repaired.
>>12027284Good to hear. Not sure how long that will hold but you can always hot glue for a more sturdy hold that will last longer. In the meantime you can practice soldering that sort of stuff. It's not rocket science. Every pajeet or chang at a phone repair shop has mastered it.
