Now that we've got the formalities out of the way, I've been having a nightmare of a time matching Karma renders in the viewport / mplay. The ACES transform from ACEScg just never looked right, colours ended up too saturated.

But I've cracked it for davinci resolve. Use EXR output:

Houdini Settings:
Edit > OCIO Settings > ACEScg
(Setting this to acescct fucks up the viewport)

Karma Render Settings
Image Output > AOVs > Component Level Output > Output Colorspace > ACEScct

Resolve Project Settings:
Pic-related + in the colour page, project nodes add an aces transform with the following settings:
- Input Transform: ACEScct - CSC
- Output Transform: sRGB
This will let you mess withe gamut compression and do post-srgb changes

This will exactly match what you see in houdini.

File: 2ndmarkofkris.gif (3.58 MB, 400x225)

3.58 MB GIF

>>996209
Only with the power of Houdini will Cris finally be defeated.

>>996210
Yeah you could do all that but I am able to match the mplay by just adding a brightness/contrast node in fusion and turning up the gamma a little bit.

File: file.jpg (9 KB, 226x223)

9 KB JPG

>>996470
i like rendering in aces
i like importing straight to resolve
i like grading in resolve in a log space

>>996470
When rendering straight to disk with a rop the EXR's need to be transformed using linear rec709 by default instead of AP1/AcesCG or what have you. It then should match straight away.

>>996502
Alright I will try it.

File: file.png (534 KB, 1260x927)

534 KB PNG

https://www.enoni.de/wp/pbr-5-layer/
free cops pbr layering hda (fx compatible)

File: 34413.gif (405 KB, 374x268)

405 KB GIF

>>996209
Does anyone have some good resources on how to shade and render pyro fire and smoke in solaris karma? I tried to make this shot but dont know how to make the fire at the end look like smoke instead of fire.

>>996209
Is a Houdini General really warranted? How many people on this board have ever even opened it?

>>997183
it's warranted. The thing about houdini though is that you have to have a pretty sky high iq to make use of it. Most people that can say sort of use it just end up making useless shit and/or trying to sell equally useless courses on it. Or, even worse, they end up trying to answer questions on forums or discord all day but they don't know why they cant make a sim that is actually interesting

>>996824
https://www.sidefx.com/contentlibrary/flame-with-smoke/

File: 1.png (25 KB, 128x105)

25 KB PNG

Karma still isn't gold enough

Does anyone know how to add anything to material databases in Solaris? You can see them in the material linker catalog tab. You can create custom DBs, but I have no idea how to actually add anything to them. There are no docs and nothing useful on the discord.

>>997241
It's paid for my license a few times over tho I quite enjoy it. I've finally gotten a bit of a handle on Solaris too and it's cool as fuck hitting render on one thing and seeing a bunch of passes and cameras exported on the morning

>>997252
I agree, it's still sweet at moment regardless

>2024
>people still using houdini for rendering when Katana exists
>people primarily posting about Karma in this thread and not about simulations

why is this?

>>997592
make a katana thread if you want to talk about katana, bro.

>2024
>People talking about Houdini in a Houdini thread
>why is this?

>>997592
houdini + redshift blows that shit out the water regardless

>>997635
i get the best renders from prman honestly and i hear 27 next year is going to be insane

>>996210
why not use AgX

>>997736
Not him, but use khronos

>>997736
renderview is too flat for me and i don't want to fuck around with slapcomps just to have a good starting point.

>>997737
i haven't seen a working implementation in houdini yet. i do want to try it though, it looks good.

>>997736
>>997737
>>997824
AgX, Khronos, ACES, blah blah blah. It doesn't matter when doing real projects, only side by side comparisons, so just pick the one that's the most comfortable to you and your workflow for now

File: hurrcane.gif (2.87 MB, 300x242)

2.87 MB GIF

Trying to make a hurricane with pyro. How can I make it looke less like smoke and more like hurricane mist?

File: vophurcane.gif (2.41 MB, 200x189)

2.41 MB GIF

>>997833
Here is one made with volume vop (no sim)

>>997833
>>997835
applied houdini pyro 5 has a no-sim approach
houdini course pyro section has a couple of sim based approaches

>>997837
>volumes* 5
he changed the name at some point

Does anyone know how the hell I can get points scattered as a volume on a deforming mesh to not jump around like crazy and change their point numbers? Time shifts and rest nodes aren't doing shit. I just want to use this running character as a pyro source and have the points stick in one spot- so I can drive a certain degree of the smokes velocity using their normal direction

File: file.png (1.39 MB, 2054x1251)

1.39 MB PNG

>>997864

>>997867
Thank you!

anyone happen to own the Steam version? asking because I will eventually buy houdini indie and I happen to have a ton of steam cash from when I played CS and sold my skins. I'd rather just use that to buy it but if there are bugs or differences then I'll just shell out the money for indie separately

>>998315
Unless you plan on making money with houdini I wouldn't bother buying any version. Apprentice has very few limitations, the biggest one is that you can't install any third party renderers. But karma xpu is great so I don't really see the need for this anymore. Also houdini is easy to crack if you really want to..

Personally I don't own a commercial houdini licence, the studio I work at buys it for me. That being said, stay away from the steam version. Version management is a pain and you can only have 1 houdini instance launched on you PC at a time.

>>998426
You don't get it. For one, the value of paying of having a legitimate sidefx license comes from the support and the scene files YOU have to send in to receive support. Just in this past month I had to email side 2x and they solved my issue in multiple lengthy emails and example scenes that they provided me and even let me know in advance notice about upcoming things they are going to be releasing that relate to the issue.

Two, using third party addons is actually a must. Karma isnt the be all end all, either.

Sounds cool!

is there a catch with the free version of Houdini?

>>998658
renders are limited to 1280*720
no third-party renderer support
no geometry sequence export iirc (technically no geometry export at all i think, but you can get around it, but it would be tedious for exporting sequences)
if you buy a license, then open a file saved in apprentice, it'll temporarily make your houdini session an apprentice session - saved files need to be converted, sidefx will do this for you once. there is a bit of a hack around this but it has some minor limitations (nodes inside sop solvers won't migrate properly, neigther will sticky notes iirc)

what is everybody learning?
APEX?
MPM?

>>999064
The only thing that matters : Vellum

What format do you use to import characters from blender into houdini? FBX or what??

File: file.png (24 KB, 413x316)

24 KB PNG

>>999152
fbx is ideal since you can still mess about with the skeleton/animation. use the fbx character import node and set it up like pic related.
if you just want the baked animation, then it doesn't matter, use alembic or some shit.

>>999154
also, if you do want the skeleton and you've set up the chat with rigify or w/e, when exporting to fbx there an option to export just the def bones - i remember having to fiddle with those options, although i can't remember specifically what steps i did. should be easy to work out.
do that or you'll get a big giant mess that you can't work with.

>>999155
Yeah, the models in question do use rigify, so I'll probably have to figure some FK stuff out in a bit, but I have the model, the IK rig atleast, and blend shapes seem to be working, so that's good.

File: file.jpg (10 KB, 300x256)

10 KB JPG

>get opencl errors constantly with vellum
>update nvidia drivers
>doesn't fix anything
>disable gpu for opencl
>go to render with karma xpu
>all ambient occlusion is now bright teal

>>999252
>ambient occlusion
diffuse/spec secondary bounce*

>>999252
use DDU. Also, have you tried another video card? Cards dont last forever

>>999254
i just rolled back to an earlier version.
565.90 studio is the one doing the teal shit with houdini 20.5.332. 560.81 studio is fine.
i can't even be bothered to fix the opencl errors with vellum; it's probably an edge case and there's barely a speed gain anyway for my project.

>>999257
thanks for the heads up about 565.90. I dont have time to stop producing and mess and troubleshoot with faulty "studio" drivers that MUST be released every X number of weeks. There is almost nothing worse than troubleshooting faulty drivers

File: file.png (2.27 MB, 3825x2065)

2.27 MB PNG

working on the soccer ball tutorial from sidefx website

Does anyone else feel like they're perpetually at 70% with everything they try with this software? At this point I get the basic jist of how to do most of the things I think of, but then I either hit some wall that brings all of the experimentation that came before it to a complete halt, or I just get stuck with a shit version of the thing I was imagining, that's everything I was trying to make it be, except it looks like shit.

>>999510
No. If i come to a complete halt after exhausting all possible learning resources then I email side and give them my scene and tell them what I was trying to do and wait for their response

>>999257
they have an official statement on 565 in the forums now, talking about the issue with XPU and optix. They say not to upgrade for now...

>>999684
lel. i thought i was losing my mind when it happened to me. hopefully it gets fixed by the time i update in ~6 months. inb4 this turns into a redshift memory leak nightmare.

I've a final project to do in 7-8 weeks and now we're off the rails from traditional assignments and I can't recite a single thing I've learned. It's over!

>>999730
Whatcha gonna make anon?

File: file.png (66 KB, 385x366)

66 KB PNG

>>999761
Probably not interesting, but procedural symbols/text like the runes in Diablo 2. Then I'll try to arrange them in animated circles and ribbons for a "magical circle" type thing swirling around the character.

>>999765
Sounds fun t bh. Let us know if u get stuck on anything

>>999765
that sounds super boring, not gonna lie.

>>999788
one man's symbol generator is another man's viscous googirl dripper

>>999791
do something actually worthwhile

>>999792
Bro we make pretty pictures, calm down. If u wanna do something worthwhile go cure cancer .

>>999827
there's a range of things that are worth doing in any activity

>>999832
keep telling yourself that, pixelmonkey

>>999835
you are the one literally taking a course and paying money to make a really weak project

>>999838
you can't even keep track of who you're talking to lol

>>999839
yeah because everyone is posting under anonymous and even if they're not i have "forced anonymous" on in settings

who would have thought that

>>999842
don't speak to me (mr anonymous) or my son (anonymous) ever again

>>999835
post prog

File: 533.jpg (500 KB, 3786x1725)

500 KB JPG

I have a challenge for ya'l

Suppose I have this shape. I want to duplicate this shape dozens of times and scale it inwards, and have each smaller copy nested perfectly inside the larger copy. But the vectors don't want to let me do this. I get this crap instead. What do I do

File: Sage between Houdini and (...).jpg (116 KB, 894x716)

116 KB JPG

everybody making houdini courses but there are no jobs

end stage capitalism

>>1000070
polyexpand2d should do this

>>996209
What is this? It always pops up when I launch Houdini
>>Prelaunch pb? 1

>>996209
shit ui and sluggish performance. i took a month to really learn it and found out its just easier to work in a general 3d package with similar results. if you wanna do extreme high end sims, sure. but general use from renders to shorts, not worth the headache.

File: 35.jpg (273 KB, 1621x718)

273 KB JPG

>>1000105

Failed to process triangulation. See helpcard for possible causes.

Don't see anything relevant in help, Tried remeshing and quad remeshing first and didn't help.

Here's another problem- I want to project an image onto some vellum grains and have all my forces jumble those grains around, breaking apart the image and making the black grains get mixed up and lost. But I can't seem to get the Cd of these points to become independent of the projection- so the grains move around but the image continuously projects onto them in the same way. How can I bake the colors onto the specific grains so they stop doing that?

What I'd really like to figure out is how to bake an image, have the simulation shuffle them around and end with them arranged into a different image

>>1000176
you shouldn't need to do an attribute transfer at all. once the points have the attribute pre-simulation it should 'stick' through the simulation.
if for some reason it doesn't, attribute transfer won't help. attribute transfer is proximity based.
what you want is an attribute copy based on point numbers. i think in this scenario if you run it naively it'll work.
ideally you want to keep track of points not based on point numbers, but based on id's just incase the point numbers get shuffled around (vellum will do this for primitive numbers all the time iirc) or if new points are spawned.
usually this is done with an @id attribute and some schema to ensure that point numbers remain unique.
however, you can't assign @id prior to a vellum simulation because the vellum solver needs its own @id attribute to keep track of this.
i usually just use i@pt_id as a custom id attrib and then shuffle it around for idtopoint() lookups (that function only works for @id attributes.

re:failed triangulation, i'd need to see the actual geo, but desu i'm going to be slammed during the week so i doubt i'll be able to help.

for the image rearrangement thing, i'd have to think on it. again, i won't be able to really spend any time on it. but the idea would be this:
1. precompute the second projection and store it as a point attribute
2. maybe randomize point order and project based on that
3. inside the vellum solver you can then use an attribute wrangle to just move towards this stored position. so if you've got a precomputed position stored as v@precompute you can just use a wrangle inside the solver and do something as simple as v@P = lerp(v@P, v@precompute, 0.05) and it'll move towards the position 5% per frame.

>>1000186
oh also, you can just 'cheat' the rearrangement but just lerping @Cd. if you do it cleverly most people will never notice that you just blended from one colour to the other.

>>1000165
nah

>>1000165
lol

File: houdini.png (1.02 MB, 2134x1266)

1.02 MB PNG

>>1000165
show your work then, coward!!

>>1000093
just wait until you realize that most of them don't even work in any industries.

>>1000614
Mate, the Industry has completely collapsed. Are you living under a rock? The movie industry? Gone. Direct-to-dvd? Gone. App industry? Dead. VR apps? Dead. All you can do now is try to gain social media clout.

>>998660
I see, so it's really mostly for learning. You can't just use the free version for years and then buy one month of a real license and then use the stuff you've made in the free version commercially.

File: file.png (10 KB, 1000x1000)

10 KB PNG

>mfw constantly frustrated by the guide partition node and only just realise that no one uses it for actual parts in hair and that i should just break the groom up into sections

File: 1506031225026.jpg (95 KB, 653x490)

95 KB JPG

I'm not a good coder bros, is there any hope for me?

>>1001962
The time when one need to be a 'good coder' is nearly over. We will very soon be programming in natural language in such a way that everyone will be a programmer.
Once that happens in no time AI will write for us in machine code that'll be ineligible even for expert humans to interface with directly.
It'll be more impractical than reading large programs viewed as assembly code.
We will be reliant on AI interpreters to map out what a program actually does in metaphorical ways that is eligible to us.

In that near future your ability to be creative will be gated more by your ability to be highly specific an concise in describing things
while talking to a LLM than you will be dependent on knowing the ins and out of syntax and how to write efficient and clear code.

Anyone who's anyone in programming has stopped saying we should be teaching kids how to code, because that skill will be irrelevant.
Growing your vocabulary and understanding of higher order concepts will be the success path going forward.
What you can contribute will be gated by what you can express thru your command of linguistics and what you can conceive of as cohesive mental constructs.

File: file.png (155 KB, 1437x641)

155 KB PNG

>>1002005
But it's not here yet. I interacted with 20 chatgpt solutions (paid model) and they all failed (or my descriptions did), and so I have to cope with my poor abilities in the now.
I get time's will change, and I'm looking forward to those times as an artist.

>>1002009
Chatgpt is good for houdini's python stuff but mostly miss for everything else.
Btw if you want to copy different objects per point look up the attributes from pieces node and the variant copying workflow in copy to points. I think there's a nice post on the toadstorm blog about all the ways can do it now.

>>1000616
so what's the point of learning Houdini then?
somebody's learning, course makers are making bank.
why are they learning Houdini, why?

>>1001962
Don't listen to the other fag, I stopped reading after his first sentence.
I'm a software programer and i use Houdini as a hobbyist.
If you're saying this for VEX, then you're in luck cause it doesn't require to become the most excellent programmer out there. Learn the basics concepts of every programming language and you're set to go (variable, conditions, operators, flow... whoch you can do in a day, honestly).
If you want to make production level stuff, then yeah I guess you'll have to learn some Python and be able to code more advanced scripts and programs. But even then, it's not the most advanced stuff out there.
You WILL HAVE TO provide some effort though.

File: unnamed.png (26 KB, 515x319)

26 KB PNG

>>1002180
>I'm a software programer
you might enjoy pic-related. i only found out about it recently, it's basically undocumented.

>>1002187
Don't even know if you're baiting me at this point

>>1002319
i'm not. it's real.

>wait for months for a course to come out
>its out
>the course isn't in depth, glosses over important details
>most importantly, jump to the final video of the course and the results just aren't that good

shit man

>>1002558
lel, which one?

>>1002561
i wont put them on the spot but it doesnt matter. It seems like there are no really advanced tutorials because the barrier to entry is too high and they wont be able to get views or people with that sort of knowledge are under very strict NDAs and cantn make them in the first place so we are stuck with mid level at best tuts

>>1002563
is it the big explosions one?

>>1002571
no

>>1002574
interesting. that's the only one i can think of that took a long time to come together.

>>1002607
if you contact them in cases where there is no docs in the manual, forums, or discord for your specific use case sometimes they will give you advance info regarding the release of new materials. That happened to me a while back.

>>1002610
ah okay, i think i know what you might be talking about now.

File: 1730565828925367.gif (2.76 MB, 286x294)

2.76 MB GIF

My peepee is DIAMOND since I discovered this fucking dream of a software.
I honestly want to fucking master it. The modeling (especially procedural) part of it specifically and the VEX as well.
I'm a gamedev. What learning path/courses should I take? There's too many different expensive course about Houdini, I wouldn't mind paying for 2 or 3 of them (in case I don't find them somewhere else of couse)

>>1002672
you can pirate most of the big proc modelling ones out there
cgma's proc modelling for production is a decent intro
rohan dalvi and adrien lambert have some stuff
there's a rope bridge one, an escalator one and a 'japenese castle' one which are more specific case-studies - these might be a bit more give a man a fish vs teach a man to fish
the actual best proc modelling courses are anastasia opara's lake houses but they're old and use a bunch of deprecated nodes, not easy to follow along for beginners - anastasia has a very big brain (she's the dev on that tiny glade game you've seen everywhere for the last few months)

for vex, just do joy of vex on cgwiki
junichiro horikawa has a very in-depth series on his youtube channel
the vex course from rebelway is also decent

>>1002675
all of those tutorials are beginner level.

File: file.png (257 KB, 723x656)

257 KB PNG

>>1002680

>>1002672
if you want to learn houdini all you have to do is read the official documentation and do the official tutorials and watch the official videos from sidefx.

Search the forums to fill in the gaps, odforce is generally horrible, discord is even worse.

>>1002675
Ok thanks, I actually did a few one of these already. I was asking cause I don't feel like I'm ready to do my own project yet.
> cgma's proc modelling for production
Gonna this one, I need some "real life" project example in production context, thanks.
>>1002684
I read some of the documentation for nodes, they are vague as hell, especially the labs tool ones, which are the ones I need the most since I want to use Houdini for gamedev.

>>1002738
get started on a personal project asap t bh
you'll never feel ready if you fall into tutorial hell because every tutorial you see you'll pick up something new
i recommend taking good notes - exhaustive and detailed, in your own shorthand. you will forget stuff 100% and in a few months you're going to need to recap something quickly and you'll thank your past self for taking notes.

File: 1720983979902657.jpg (41 KB, 640x480)

41 KB JPG

>>1002742
I started my own project. A little bit overscoped but there's enough material online to have a feeling of how it should be done.Thanks for the tips.

File: file.png (43 KB, 570x345)

43 KB PNG

I don't know how to introduce randomization to a switch

>>1002754
if you want to read a point attrib you need to use the point() function:
point(geostream, point_number, "random_int", index_in_case_of_arrays)


just typing @random_int, it's looking for local variables created by topnets i believe.

>>996209
Apex verdict?
Current workflow aside, is it fully featured?

>>1002787
APEX is really really messy. What you want to do and what the actual endgame is is feeding mocap data into vellum muscle rig, not with APEX setting up a early 2000s video game rig and manually setting keys and getting your footroll right. You want to invest in mocap suits and do the capture in any program and feed that data into vellum

>>1002830
And yes, occasionally you'll need custom fk ik rigs for creatures and shit, but if you want to go through the utter hell that is APEX is very very questionable

Apex is good actually and very easy to use
Component library needs a bit of building out, but APEX (and custom components) has access to everything in houdini so shops can customise it at will

>>1002837
>Apex is good actually and very easy to use
what is your use case

Uhh bros our 'senior' fx guy never got anything approved after a year and then got poached by ILM. Is this the power of houdini?

>>1002870
based. what was the problem with his work?

>>1002871
Wasn't stylised enough for the art director. We're in australia so there's severe skill issues everywhere, kinda tragic

>>1002870
>ILM
Miserable company. Good co workers

>>996209
Started looking into it because this tutorial implied it is a viable alternative to Russian3dScanner/faceform for transferring ripped game model heads onto daz/other generic template human body models.
https://www.sidefx.com/docs/houdini/nodes/sop/topotransfer.html
The apprentice version seems unable to do texture baking due to the render resolution limitations.

>>1002910
I found a good tutorial on ripping models.
First you have to load the money and the textures

File: 1715361382008846.jpg (75 KB, 680x660)

75 KB JPG

That feeling when you get over the houdini gatekeeping by reading the documentation, but you still keep maya and blender in the toolbelt because they just work better for a lot of things and your entire output is going into a game engine anyways because film and tv are both utterly and completely dead.

>>1002918
I can already rip the models. It's just a matter of transferring over the faces to the generic body template, but Houdini is surplus to my needs since I managed to get a copy of R3DS for free lmao.

>>1002910
Houdini's Topotransfer works well for that, as good as Wrap4 or whatever the Russian software is. We've used it to standardize purchased head models to our character rig's topology.

File: file.png (41 KB, 292x137)

41 KB PNG

I had an idea where I have particles streaming toward the camera. How might I make them prettier when so zoomed into them? Would you just work on the material itself, or try to spawn even smaller ones, or something else entirely?

>>997833
Use pull instead of add for velocity. This one has lot of good information
https://www.youtube.com/watch?v=-EzjGqXl8eA

File: markofkris.png (829 KB, 682x680)

829 KB PNG

>>1002926
There is no need to gatekeep something that is basically a gate in of itself.

>>1002926
games is even deader

>>1003693

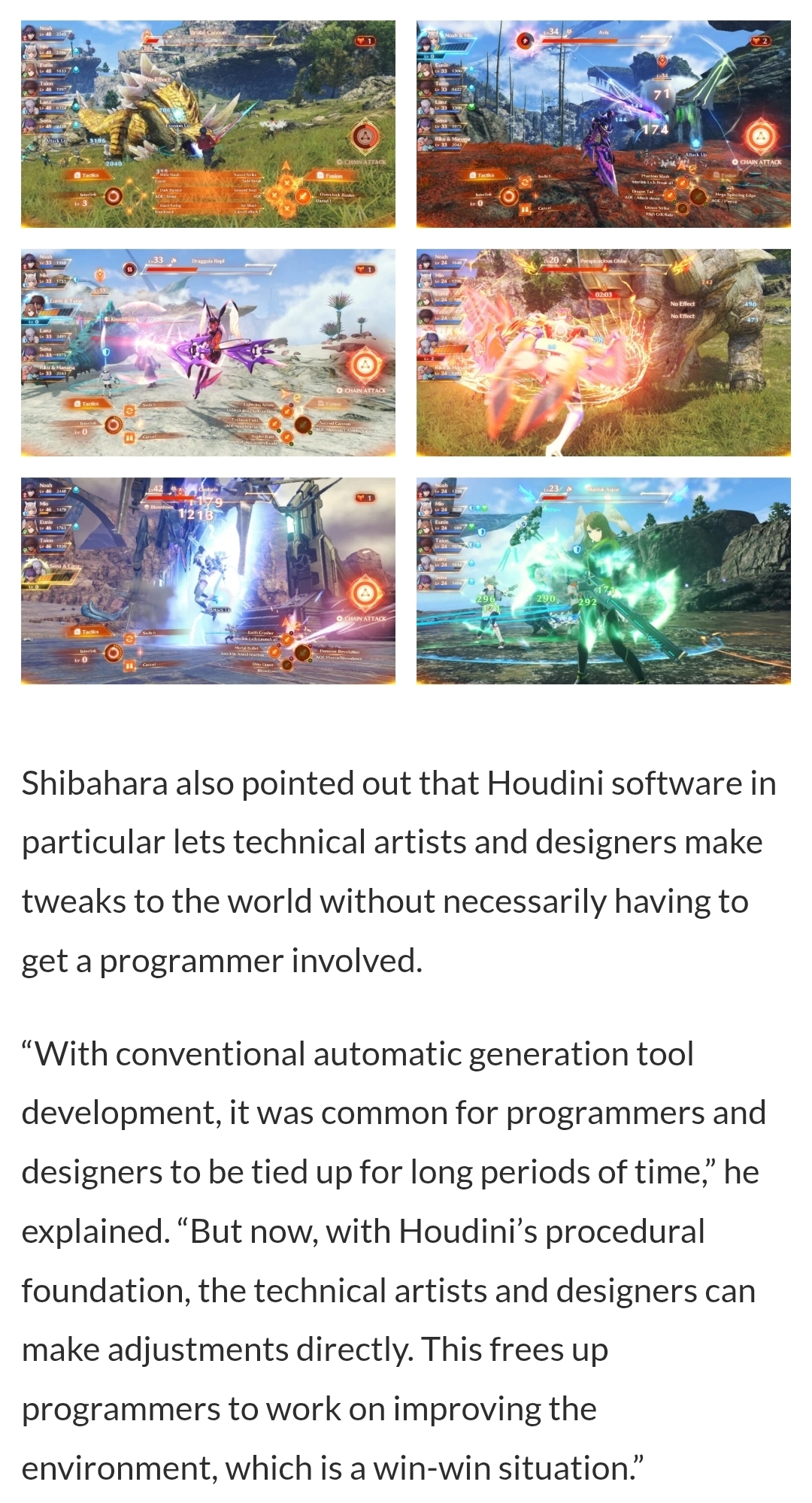

not games developed by japanese studios

https://www.youtube.com/watch?v=pphH8OwH8uA

worth claiming these tb h

>>1003700
this guy only knows surface level vfx

>>1003669
no dude, you don't get it. They gatekeep 100%. With maya everything is on the table. You can absolutely hit the ground running with scripting and plugin development. You can extend maya so easily if you understand cg. With houdini, they just don't have the same level of examples at a low level. And then if you have a problem you have to look at a picture of some spaghetti. You can't download a scene file not from official sidefx website because thats not safe. Like from a discord. Its just not a good idea to do so. On the other hand you can easily get help with maya development and dev it really hard really quickly. You cant say the same for side.

>>1003718
Have you tried being smarter? It usually helps.

>>1003721
multiple times I've had to contact side via their support portal and ask them why they dont have things built into their solvers that are doable today in maya. They just dont have it. They dont have the documentation saying they dont have it, either. You have to already be an expert at some area to see what they don't have and no one else is bringing it up anywhere.

>>1003723
what should I tell sidefx
i got connects

>>1003694
do they hire non japanese?

>>1003723
if you were smarter you wouldn't have to call up support tbqh

>>1003751
not necessarily. I've also submitted and gotten approved bugfixes. What's the alternative? Write my own app? Get real, I don't have time for that. The closest thing to writing an app I can do is to extend a program, and this is where side says "ehhh not so fast" while as I've been saying, other players like maya and blender say "go right ahead, here's all the examples you could ever need, for any skill level"

File: markofkris.gif (764 KB, 340x281)

764 KB GIF

>>1003723
>ask them why they dont have things built into their solvers that are doable today in maya.
Like what? You sound like someone who only knows how to use shelf tools and has no idea how DOPS actually work.

>>1003783
lets say you have a node and you want to add visualization options to it that lets you see the combination of results of that node from previous frames in various colors and give options on how to adjust that information so you can further debug. Then you need to add this to either vfx ref pyside so you can use this node in other apps as well without having to write it specifically for hou interface.

There are no guides for this in hou. Nothing to get you started In maya there is. In blender there is. Hou doesnt want you to go in this direction.

>>1003818
And also lets say that when you are combining the elements of the previous frames, that you cant just combine them, but you need to do operations on each pass because the amount of data is too great. This is what I need examples for, not entry level karma tuts.

>>1003818
>>1003819
this is all really basic stuff.

>>1003868
unfortunately, going into houdini, running a sim with hundreds of options, creating custom debugging data with custom visualizations and being able to sort and categorize this data in order to properly predict how to adjust the sim as well as making pyside gui that you can take with you to other apps as well as having said gui interact with houdini is something that most would consider to be expert level to get to run well, ie not just hacked together well, but 3rd or 4th generation well and ready to sell. I've been in this game a long long time. People like you that say something like this is easy are a dime a dozen and have nothing to back it up besides being paid to do basically nothing.

>>1003892
implemented all that yesterday for fun. took about an hour.

>>1003908
show us

>>1003911
it might go into production so i can't share screenshots
why don't you show us how far you've gotten and maybe i can help you

>>1003922
but as I said, I am trying to sell. Why would I show you what I have?

File: shame.gif (1.7 MB, 384x288)

1.7 MB GIF

>>1003935

HELLLLOOOOOOOO HOUDINIHEADS!
about to start houidini-course.com after paying $50 for a monthly sub

>>1003818
>>1003819
This is all very vague to me but maybe I am not experienced enough to understand what you mean. You seem to actually work in the industry.
>lets say you have a node and you want to add visualization options to it that lets you see the combination of results of that node from previous frames in various colors and give options on how to adjust that information so you can further debug.
> you are combining the elements of the previous frames, that you cant just combine them, but you need to do operations on each pass because the amount of data is too great. This is what I need examples for, not entry level karma tuts.
So then are you referring to a simulation that is already cached and talking about visualizing specific attributes in SOLARIS or in the viewport? I really feel like I need specific example to understand what it is you are talking about but stuff like this is actually where Houdini shines the strongest since it's procedural and non destructive.

>>1004497
say i have stock houdini which gives the solver result only

but, i want to know collision checks per frame - did these verts collide with anything or did they miss and still passed through a triangle. I then need to do custom GL / VK drawing in the viewport to show this and have different colors and then show a higher level of this in a pyside GUI or at least a node (probably wont be good enough). Then I need this for other parameters besides collision as well. This is what I need sidefx to make tutorials on. I don't need solaris tutorials.

>>1004500
So you are trying to make some kind of tool in houdini regarding simulation data?
What's the point of doing this?
>With maya everything is on the table. You can absolutely hit the ground running with scripting and plugin development.
Explain how you would create your example in Maya or Blender since you claim it is already built into those packages.

>>1004533
the point is i can debug my sim faster in maya if I have the right tools that shows me info on the solve in a visual manner instead of showing nothing which is right now. The tools were functional and working in maya but I lost access to them permanently as they were sold to another studio. What I am saying is that I need tutorials on how to build similar tools that affect what actually matters ie sims instead of useless tuts on fluff

>>1004537
What kind of simulation are you debugging? You mentioned collision data. There are many ways to visualize attributes in Houdini, You can even see what they are doing behind the scenes in the Geometry Spreadsheet. Some solvers do have this kind of thing built in like Flip sims for example showing different colors for things like fluid velocity and viscosity etc.

>>1004540
i really need to see solved and missed collisions independently on muscle solver vellum node on every vertex at every frame

File: 123211.png (735 KB, 1280x1184)

735 KB PNG

>>1004542
Okay I have never used that specific node but general vellum does have this feature. The cool thing about Houdini solvers and most nodes in general is you can dive inside them and see what they are made of.

File: 1232112.png (75 KB, 588x758)

75 KB PNG

>>1004542
>>1004543
Okay wait I might have something better. Try plugging your sim into a Vellum post process. It has this feature built into the node. See if it works.

>>1004543
Nah i have to use the muscle solver vellum node to do what im trying to do. I'm trying to make characters and animals, not random soft body. I'm following along with the recent very very long tutorial released by side last month. The collision visualization in the muscle solver vellum node is killing me

>>1004545
Does Vellum Post Process not work with muscle Vellum?

>>1004548
the inputs just dont make sense. It has a separation of vellum nodes and collision nodes, yet in my simulation im only using vellum muscle nodes of various stiffness

still worth it learning Houdini or go all in with blender and AI?

>>1005727
LLM is not AI

>>1005734
do we learn Houdini or not?

>>1005781
what'd they tell you about blender?

>>1005839
Blender won, look at the animated film Flow

File: skin shader research.jpg (141 KB, 1199x604)

141 KB JPG

>>996209
Karma looks like that?

>>1005859
Anything can.
It just goes over people's heads that dragging and dropping assets into a scene alone doesn't make for good engine comparissons.

File: file.png (384 KB, 473x631)

384 KB PNG

groaning

Dug into apex, the framework's insane.
Side just needs to ship H21 with more prebuilt scripts for it to be appealing to everyone but man, the possibilities with the low level shit runs deep as is.

>>1008655
what did you try to do?

File: T_GemSurface002_M.png (112 KB, 517x517)

112 KB PNG

should we make a Tech Art/VFX/Material/Proceduralism thread to incorporate discussion from Unity, Unreal, EmberGen, Nuke, Houdini, etc., because this one's so dead?

Never realised how much of a vram hog the Solaris viewport is

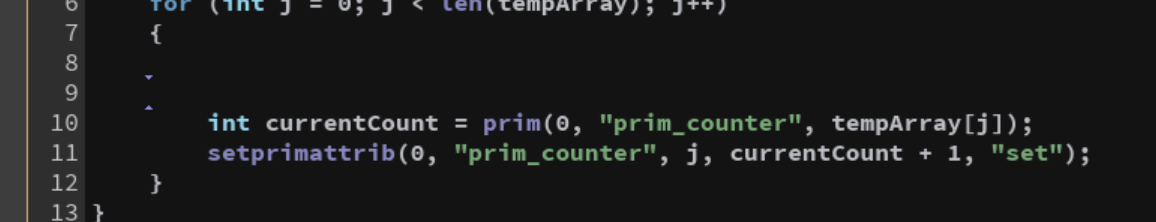

File: file.png (63 KB, 1156x222)

63 KB PNG

the hell is on line 9

>>1010161
You editor confused by putting an opening curly brace on new line like it's some goddamn c# and having 2 redundant newlines in a place where there should be 0.
Format it like this and show screenshot:
for (...) {
int currentCount = ...;
setprimattrib(...);
}

File: file.png (10 KB, 241x250)

10 KB PNG

It appears in any and all wrangles, and you see it on the edge of the 9, and when you type it scoots along until it hits that position.

sidefx dropped a quick 20.5 foundation course.

https://www.sidefx.com/tutorials/foundations-205-nodes-networks-assets/

lets learn

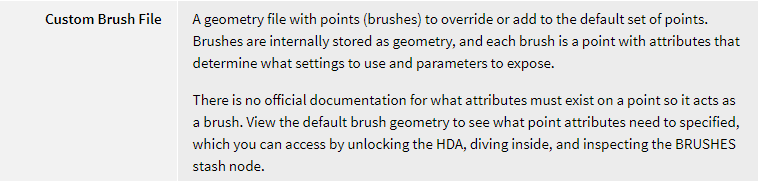

File: file.png (21 KB, 758x181)

21 KB PNG

think i found the worst bit of documentation in the houdini docs
bravo
incredible technical writing here

File: file.png (1.04 MB, 813x931)

1.04 MB PNG

Why do these slices appear along edges with bump maps? Anyway around them?

>>1010406
never seen a bump do this
if you're using a displacement map and it's mid value is grey, you need to remap it so it's in a -0.5 to 0.5 range.

File: file.png (593 KB, 633x634)

593 KB PNG

>>1010414
I'm off by 0.5 and I'm thinking. I'm thinking.

>>1010328
>We aren't writing SHIT, look at the default brush and figure it out yourself
Lmfao

why is my F1 for help files not working in Houdini?
opens the browser but nothing shows, just blank. The fuck?

>>1010585
F1 Opens an outdated help guide. alt+f4 opens the latest guide.

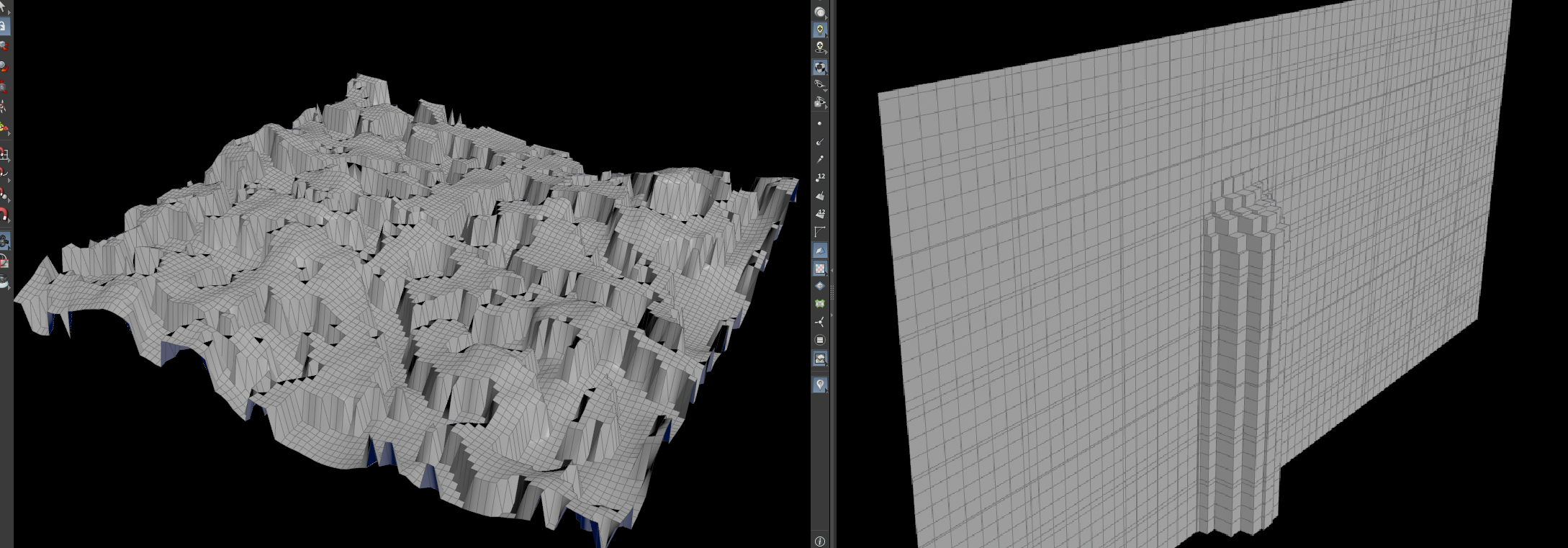

What am I missing with updating textures in Houdini? It takes some finagling to get certain updates to appear, and sometimes it's recreating the import node entirely to get something to show.
I see there's an "update textures" button in Render up top, but that does nothing largely.

>>1010737
Houdini converts all textures to its own format (.rat) and uses those despite what the file path says.
I think I've run into problems if I'm replacing the original file with the same name where a new rat file isn't generated. Can't remember what I did to fix it or if I just gave up and changed the file name. Try flicking between xpu and CPU. It might force a refresh.

File: file.png (602 KB, 868x381)

602 KB PNG

>>1010738
That worked, thanks!
Would you happen to know the best way to work with a heightfield-converted-to-mesh and Karma XPU? XPU turns it to mush.

>>1010741
nvm fuck XPU--seems way too involved for what I'm doing right now

File: Deniveles.png (1.24 MB, 2178x761)

1.24 MB PNG

I'm supposed to reproduce these as an exercice. I'm having trouble with two thing on these
> 1st pic
How did he manage to keep the top of the extruded regions flat and valley like? I tried using a mountain noise on a primitive group (selected randomly which also doesn't give the same effect) but it doesn't work, it's extruded on the normals of each primitives which creates a mess of overlapping geometries?
> 2nd pic
Also after the polyextrude, how did he manage to divide the geometry to have cube like formations instead of only have the surface primitive being extruded.

Don't spoil it too much for me, clues and directions are enough.

Sorry if I don't use the correct words of if I'm too vague.

>>1010754
>1st pic
isn't an extrusion. it's just moving points along the point normal. use an attribute to drive this in a wrangle or vop. attribute noise / attribute adjust float / attribute remap are very useful for controlling attributes.

>2nd pic
>after the polyextrude, how did he manage to divide
1. you need local control over your extrusion
2. you need to change one of the first settings on the extrude node
there's nothing happening after the extrude node.

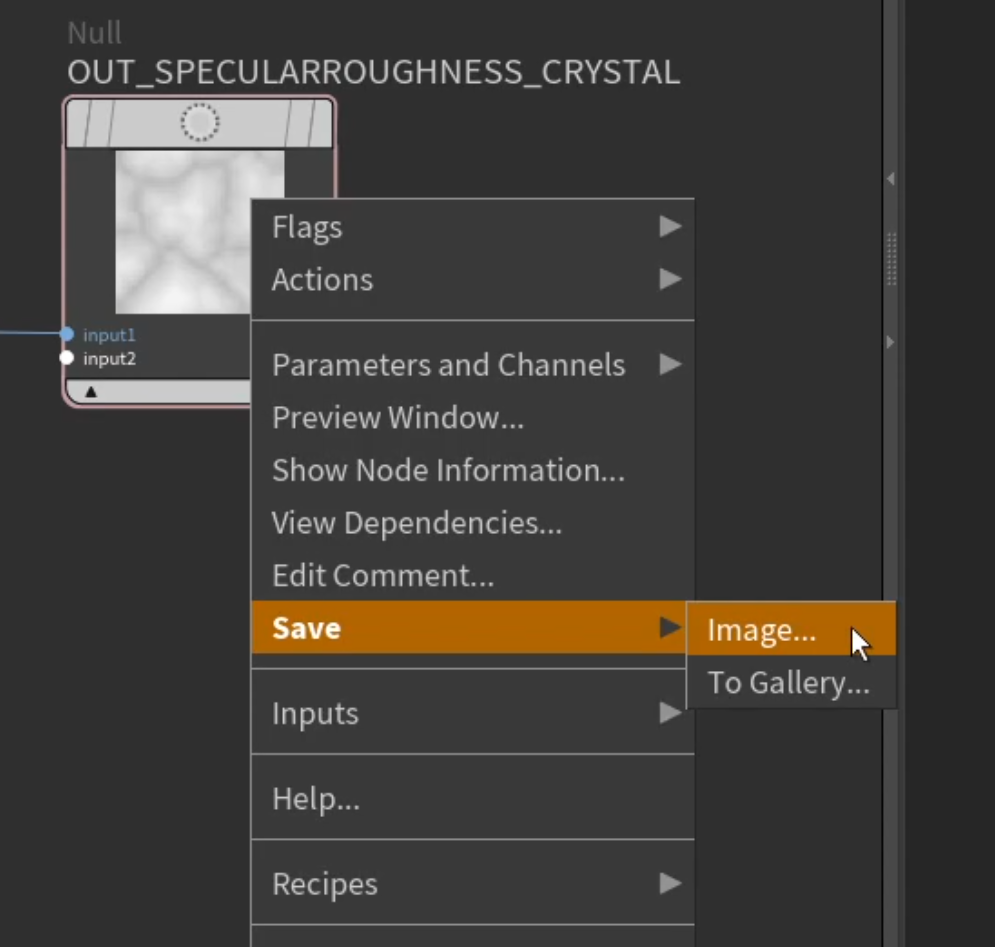

File: file.png (215 KB, 995x947)

215 KB PNG

Is this really how you save textures in COPs? Feel like there's gotta be a faster way.

>>1010867
https://www.sidefx.com/docs/houdini/nodes/cop/rop_image.html

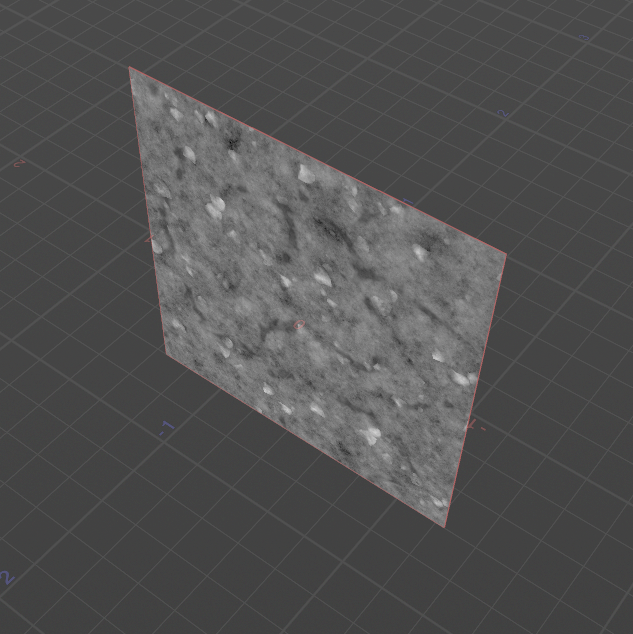

File: file.png (864 KB, 701x693)

864 KB PNG

>>1010875
Thanks, anon!

If you looked at this image, what would you say is wrong with the textures in the foreground? (same as background, just up close.)

>>1010921
your bump/normal value is set too high.

File: houdini things.jpg (473 KB, 1536x2048)

473 KB JPG

when's Houdini 21 coming out?

File: 1743526437343239.jpg (72 KB, 1024x643)

72 KB JPG

Tell me something. I learned the basics of Houdini, I know how to use VEX, I know about groups and attributes and most of the important nodes for modeling.
But something doesn't click in my mind about which VEX functions or the procedure I need to implement to do something I have in my mind. I lack knowledge about most of the VEX functions + I guess the IQ to come up with a solution by myself.

Is it really an IQ problem or an experience one? What do I do? Spam tutorials? Again...

>>1012508
it's mostly experience and some aha moments
tutorials can't teach you how to problem solve because they're literally spoonfeeding you solutions. sometimes while watching a tutorial you'll have those aha moments about applying the technique more generally however.
projects to tutorial ratio should be 90/10.
if you're scared of failure try to create the end result of tutorial without watching it and if you get stuck you know where to find out how to do it.

File: Screenshot_20250523_10461(...).jpg (1.14 MB, 1080x1999)

1.14 MB JPG

>>996209
https://www.videogameschronicle.com/news/monolith-soft-says-procedurally-generating-assets-in-xenoblade-chronicles-3-reduced-man-hours-considerably/

how retarded of an idea is it to jump into houdini with no prior artistic skills or knowledge of 3d or programming?
even at animation universities it seems to take them 5 years to develop the skillset required, and they do this stuff several hours a day.

>>1012563
i don't think there's a single open world game that doesn't use houdini for scattering and procedurally placing cliff faces and stuff. except maybe ff7 rebirth where if you look at the rock faces you immediately notice that someone just schizophrenically smashed rock assets on top of each other that overlap and don't match at all.

>>1012751
it's a bad idea.
most houdini learning material assumes you're an intermediate user of another piece of software.

>>996209
Why does Houdini still looking like an incomplete software despite being "industry standard"? I mean cheesy and ugly UI, a nightmare licence manager...

File: 1743526947978796.jpg (14 KB, 326x326)

14 KB JPG

>>1012560
Thanks man, excellent tip

I think this is the first year in a while where the 3d design stuff coming from Houdini focused studios feels dated and out of touch.

>>1013379
You mean compared to AI slop? Examples?

>>1013387
not entirely. i think the less abstract more straightforward stuff looks a bit better right now. thinking of xk's pretty disappointing output lately - mvsm, as conservative as they are, feels like they put out better work.

the ai stuff isn't ready for this high-end kind of advertising work. even veo 3 which i've played around with a little, the quality of the final frames isn't there yet (720p native gen - 1080 upscaled with a horrible algo).

but in that non-commercial art/design area some of the ai work is interesting. the images are just more immediately striking despite all the jank:
https://x.com/loved_orleer/status/1927674961868603470
https://x.com/palekirill/status/1927062237975343180
https://www.instagram.com/11v151131_m06/

>>1013391
also, the kinda very typical houdini looking stuff from someone like paul esteves just feel old
like that offf talk with the alt houdini titles is grim to watch
not a single piece in that thing is good let alone interesting

What's the future of Houdini? Are they working to counter AI? I saw they had an ML process recently released but it targets specific kinds of animations using your own training data--far from any easy user use.

>>1013391
so people do buy ai art after all
>>1013397
they will be going all in with AI just like everybody else

god damn I want to get into houdini for procedual asset making like environment stuff (cliffs, landscapes, rocks etc) but I just struggle to wrap my head around how to do it even following tutorials. I can't even figure out how to export an asset from houdini to blender

>>1013475
if you haven't done a basic intro course, you'll struggle to jump into tutorials about specific things

fun little tip:
if you put a 3@transform matrix on your rbd geo before it goes into the sim, the solver will actually update the attribute for you
came in really handy for instancing back geo onto emitted objects where the emission source was not static
from several million polys down to a single packed geo instanced a few thousand times

>>1013683
specific for this case it goes like:
1. pack geo
2. copy to points with moving points to emit from different place every frame
3. unpack geo and get the packedfulltransform matrix. write that to 3@transform
4. rbd configure and sim and emit as normal
5. get sim points from solver, copy transform matrix onto them from the geo by matching name
6. delete other instancing attribs
7. copytopoints the geo you packed in step 1

>>1013683
>>1013686
or i could have just rbdconfigured before the first scatter and then i don't need to do anything of this

File: Screenshot_2025-07-07-17-(...).jpg (563 KB, 1080x1105)

563 KB JPG

Does anyone know how to make this pattern in houdini?

>>996209
would anyone be interested in a webrip of houdini-course.com? I can get a torrent up if i can get some seeders

>>1015125
it was ripped last year so an updates only torrent might be worth it depending on what he's added.
there are pretty good official tuts for new stuff tho.

https://rutracker.org/forum/viewtopic.php?t=6707263

>>1015143
Does that place have a Houdini crack? The software looks cool, but it's fuggin expensive.

>>1015246
ye
https://rutracker.org/forum/viewtopic.php?t=6649274

the free/apprentice version is more than enough to see if you're gonna like it tho, so maybe start with that

>>1015249
Good idea. From what I recall, you can save but not export projects in the free version, which makes it more or less suitable for learning.

Thinking about getting into houdini. If I know python and some c++ can i skip learning Vex?

Also, can anybody vouch for this tutorial: https://www.breakyourcrayons.com/houdini-cloud-simulation-course

>>1003718
>You can't download a scene file not from official sidefx website because thats not safe
Wat

>>996209
Beginner here, any good courses/tutorial where they fully explain how particles simulate and how each node/param/expression affect them? Sometimes when i'm watching tutorial on how to make x they briefly explain about manipulating particles but never fully delve further into that topic

>>1015517
>If I know python and some c++ can i skip learning Vex?
Vex is just a tool to get something done in Houdini. What you are saying makes no sense. Maybe if you didn't know python and some C++, you would skip using Vex? Either way you're retarded and didn't even bother researching Houdini before writing that.

>>1015517
Vex has (mostly) c style syntax so you should be able to pick it up very quickly. Python is not a substitute for vex because it's not multi threaded and much much slower. That said there's nothing stopping you from manipulating most things with python.

>>1015143
I'll see what's been updated since this torrent and add it, thanks :)

Houdini 21 coming in one month
who's hype?

>be me
>hear Hoidini is super hard and expensive
>write it off and forget about it for a decade
>be super interested in simulations
>learn blender's geometry nodes and python api and gpu concepts and shader programming basics and C/C++ to add nodes for myself
>lots of fun, get confident
>remember houdini
>try it
> it's all the same shit I've been doing for 5 years, just put together a little better
>everything seems easy just need to learn the UI

Is there any money left on the table or is my post-ai arrival to Houdini too late to make any money with it?

Still a fun toy either way.

>>996209
I haven't used Houdini in a dog's day. Is the modeling still shit? Is it still crashy?

Tbf last time I used it was a pirated version on linux like 15+ years ago lel.

>>1015937
>vfx, visualization, advertising - already dying for non-ai reasons, mostly dead in ~5 years (see: runway aleph)
>vidya - 5-10(?) years
there were a few houdini roles out there for generating data for machine learning, but i think i've only ever seen like 3

>>1015946
modelling in the viewport feels bad, but you can customise things to where it's tolerable. the core tools like bevels and extrudes are very good though, so it's the best option for procedural modelling.
it's very stable, with the exception of the new COPs context which is in beta. buggiest thing is the viewport getting stuck once in awhile and needing a reset (there's a menu option for this in the official labs tools), which is an inconvenience.

Help the beginner out, I've been using unity for like 3 days now. I wanted to copy some nodes from geometry in file A, and paste them into other geometry in file B, can you even do it?

>>1015970
>unity
this is is a houdini thread, m8.
but yes, you can copy paste nodes between files.
just run 2 instances of houdini and copy and paste from one to the other.

>>1015971
I've meant houdini :^)

https://www.youtube.com/watch?v=aq7JQCV51CY

It is once again time to marvel at all the new features you'll never have time to learn.

>>1015964
>already dying for non-ai reasons
What are they?

File: Houdini Absolute.jpg (98 KB, 936x725)

98 KB JPG

>>1016386
mpm and cops are crazy
release wen?

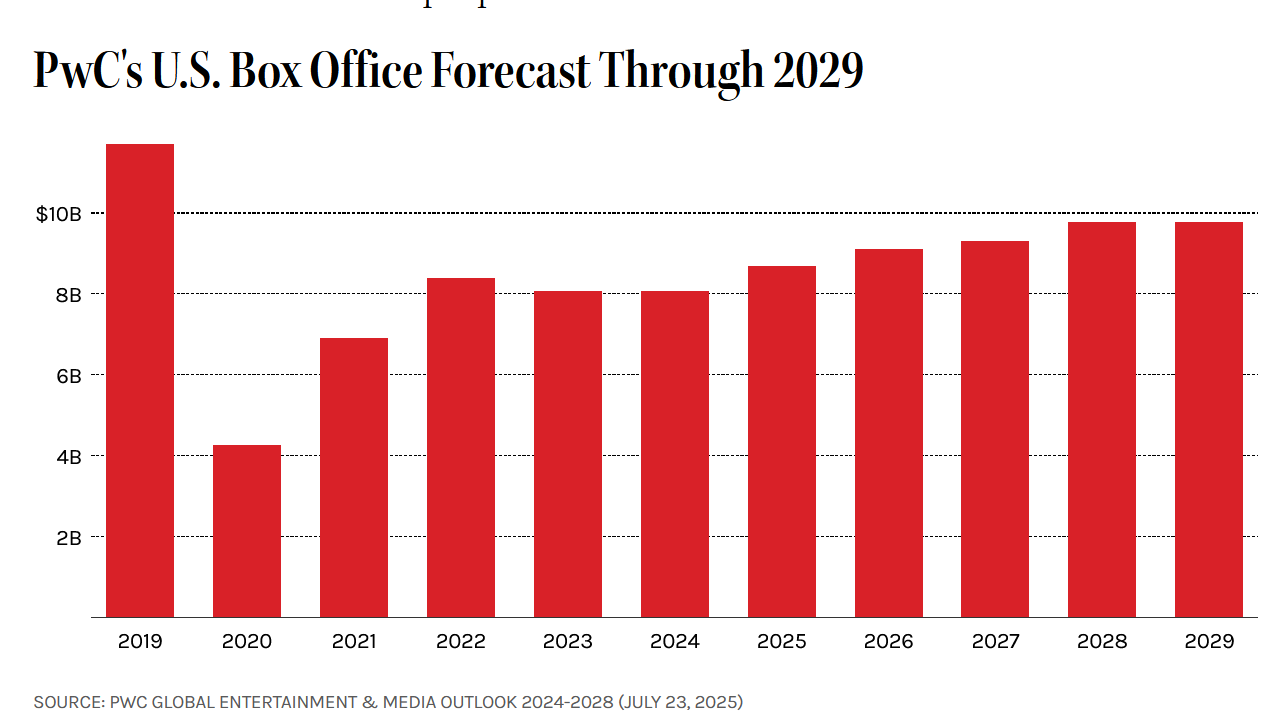

File: file.png (69 KB, 1282x727)

69 KB PNG

>>1016461
post-covid box-office decline is real. lost income from that never got completely offset by streaming deals.
didn't help that it happened almost exactly the same time as vfx heavy capeshit domination of the box office began to end + writers strike droughts
that capeshit domination and constant underbidding over a period of a decade had created unsustainable pipelines that immediately began to crumble, even in places like india where a lot of work got outsourced to because of costs.
now add models like aleph to the mix and you'll see budgets get cut and ultimately most junior shotwork will simply get done by compositors on big productions, or by one-man-editor-fx-comp guys for smaller projects. paying junior salaries so some kids can do dust hits makes no sense going forward.

File: Kiichi-Fujimoto-Cromartie(...).jpg (68 KB, 1000x500)

68 KB JPG

I need some help on the following if anyone might have some ideas:
I'm trying to implement a procedural city tool. The catch is that I try to automate/procedural(ize if that even exists as a word) as much as I can for the following features (so far)
- A terrain generator
- An urban area generator
- Street/lots generator

My issue is connecting the terrain to the urban area tool, as well as the urban area tool to the streets layout tool (tools = HDA's obviously).
My problem is how much control I lose over my streets layout. I'd like to have some verticality and explore in real time the changes I'll make whenever I feel like it.
So how can I do that?
I thought of either
- Just manage a ton of curves (pain in the ass)
- Feed it an image as an input (much looking like pic related) and create the curves from that (less of a pain in the ass but longer times to edit)

But since I'm a total amateur, I feel like there might be another way?

I was hoping some Anons here could clarify because Google isn't helping much. But from what I understand, Houdini mostly uses the CPU for simulations, but can use the GPU for some as well. What kinds of simulations are faster and practical on a GPU compared to a CPU? Like yeah, CPU will always be more accurate, but if I can dramatically reduce the time spent simulating I'll take the minor hit to accuracy.

>>1016940
FLIP is CPU
RBD/bullet is CPU
Pyro sparse is CPU
Pyro minimal is GPU
Axiom (third party) is GPU
Vellum is primarily CPU with some GPU acceleration
Vellum minimal is primarily GPU
MPM is GPU
Forthcoming Otis solver is GPU. They're only doing muscles on it for now I think but it is just a vertex block descent solver so it might eventually replace vellum for a lot of stuff

The GPU solvers are not less accurate than the CPU ones. They'll just have limitations or constraints. Besides, you're making art - if you need real-world accuracy you shouldn't be simming in a VFX program

>>1016945
Thanks. I'm still extremely new to this and going through that big fuckin' course posted somewhere above. The video examples of Vellum minimal I've seen and MPM look pretty cool. Seems like they're more designed for scenes of a smaller scale.

>>1016946
Scale has been an issue for GPUs because of vram issues, but things are changing - the 3090 making a jump to 24gb and axiom showing up around the same time meant a lot of pyro work in production moved on to GPU because its like an order of magnitude faster. The new fracturing workflows for mpm on h21 will make it a lot more useful as well.

Oh and somewhat related because they're doing Sims inside COPs now, but that is all running on GPU as well.

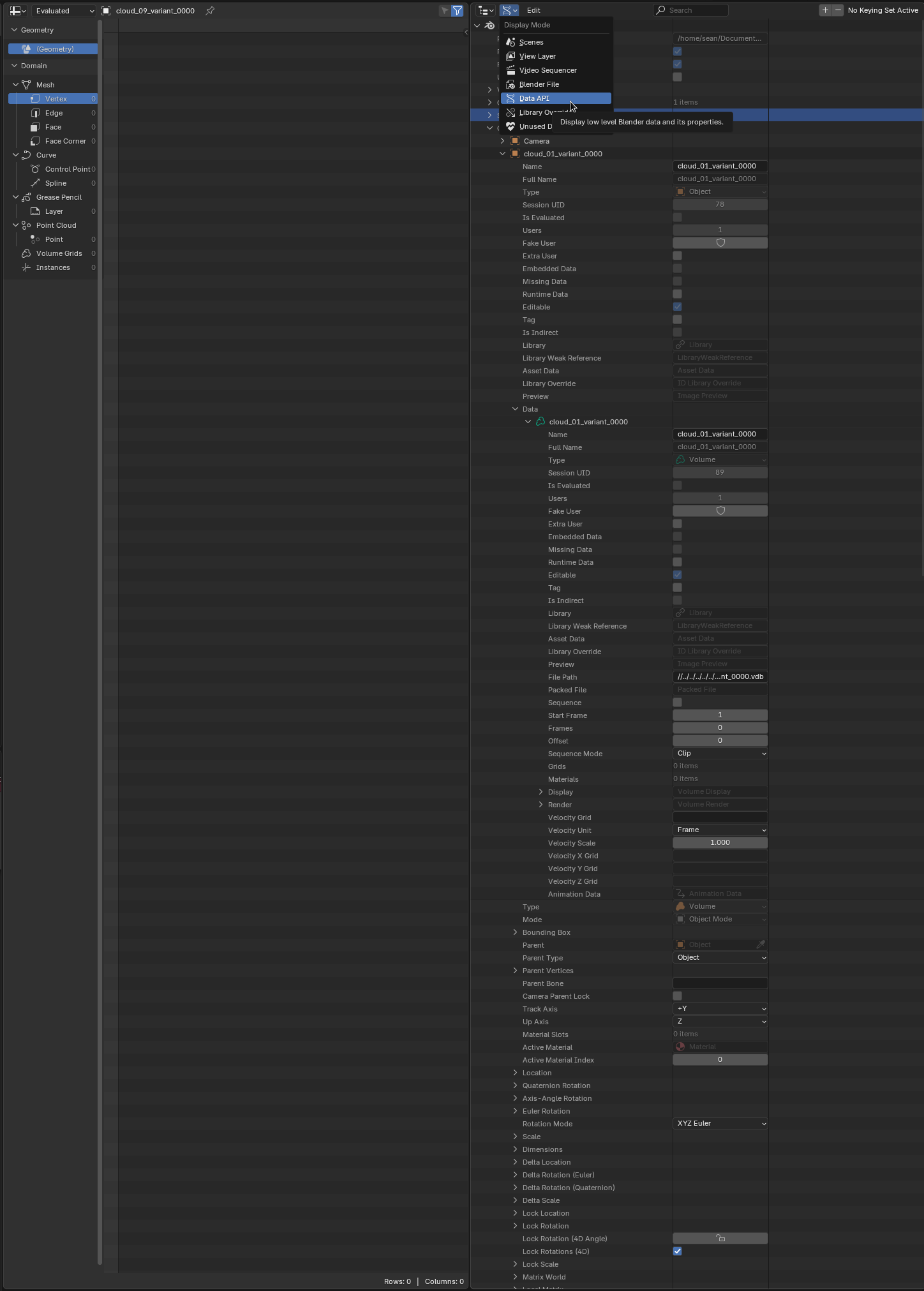

File: Screenshot_2025-08-17_11-00-43.png (202 KB, 1448x2023)

202 KB PNG

>>1015937
here. In blender everything is a 'data block' which is basically a C-like struct with the feature that it can be read by blender. This leads to a 'data api' which can be used to dive into any part the file (object, material, anything and everything) and see what 'owns' what, and trace everything down to the raw int, float, or char data (as the case may be). Provides a really good foundation for understanding WTF is going on in your file.

Is there a similar 'foundation' in Houdini? I know there's a geometry spreadsheet, but depending on which node I have selected inside of a geometry, it shows different stuff.

What's like the endgame vertical slice of "if you understand how to X, you know your way around well enough to figure out any Y"

>>1016945
Is there a setting somewhere I should check to make sure houdini is using my 4080 when it can?

>>1017061
if your gpu is set as the opencl device edit > preferences > misc, then it should just werk
bear in mind you're not going to see 100% gpu utilisation in most cases. e.g. in regular vellum the gpu is just used for neighbour search i think.

re: some sort of human readable version of the file, i don't think there's anything like that in 'native' houdini. however, if you're in solaris, the human readable usd files basically look like xml file.
sounds like you probably want to enable dependency links in the network view though.

>but depending on which node I have selected inside of a geometry, it shows different stuff.
i'm probably misinterpreting this, but the geo spreadsheet is just showing data on the mesh the node is acting on and reflecting the changes made by the nodes; it isn't like a per-node view or anything like that. it's reflecting data flowing through the network. in sop land these days data exclusively flows down the network and nodes further down don't pass data back up the network (used to happen a bit pre-houdini 16 because of the old copy stamp workflow) so it's pretty easy to follow data flow.

that said, people (like me) will just make giant networks inside a single geo container now instead of actually splitting things up in separate geo containers. then they'll just have a bunch of nulls at the end that get merged to their own sop level containers because rop rendering parms are on those.
these days i just use solaris so i don't even do that and sometimes all my sop work is literally in one geo container.

File: 822550959271.jpg (2.06 MB, 3840x2088)

2.06 MB JPG

aaand we're in

Anyone got a 21 keys(crack) yet?

>>1017664
make sure to read the text file i put in there. if you have windows defender running it'll scream at you repeatedly.

https://files.catbox.moe/88gwpy.zip

>>1017667
No problem, I use a VM when generating. Thanks anon
